2576150000 - D-Series Relay Module 230V AC with 2 CO Contacts (Pack of 10)

2576150000 - D-Series Relay Module 230V AC with 2 CO Contacts (Pack of 10)

SKU: 2576150000 Download PDF

Variant:
  • 2576150000 - D-Series Relay Module 230V AC with 2 CO Contacts (Pack of 10)
Now $104.85
BEFORE   $0.00 Now $104.85
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

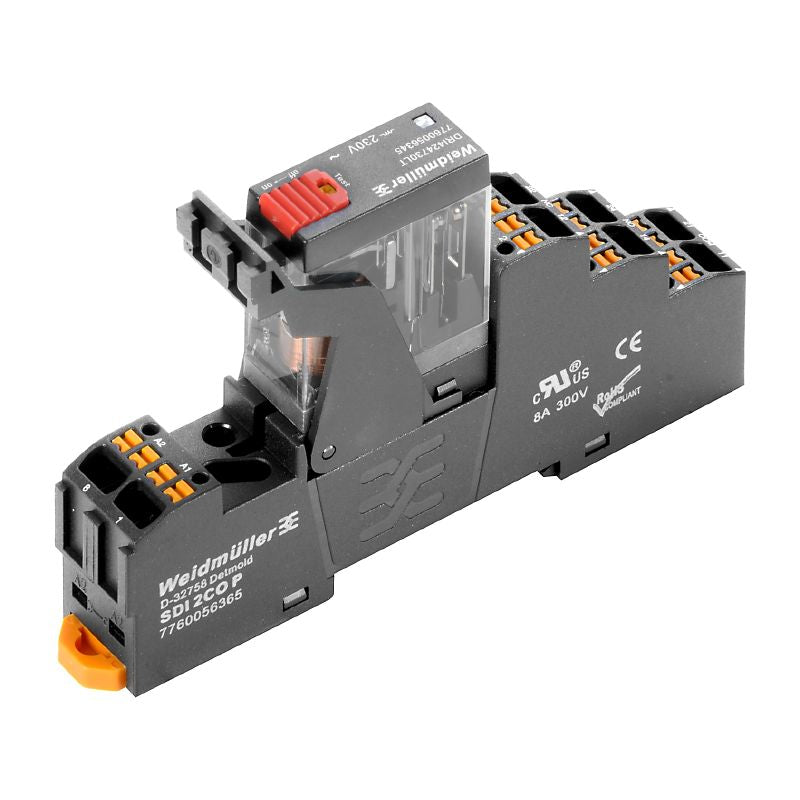

Introducing the D-SERIES DRI relay module, engineered with two CO contacts crafted from AgSnO, optimized for controlling voltages up to 230 V AC This robust device can handle a continuous current of 5 A and comes with user-friendly PUSH IN connections, along with a convenient test button to ensure functionality Compliant with RoHS standards, this relay module is versatile and suitable for a wide range of environments.

Features and Benefits:

    •Includes test button for functionality testing.

    •Lockable test button available.

    •Mechanical switch position indicator absent.

    •PUSH IN wire connection method.

Specifications:

 Number of contacts 2 CO contact
 Rated control voltage 230 V AC
 Continuous current 5 A
 Coil resistance 23500 Ω ± 10 %
 Status indicator red LED
 Rated switching voltage 250 V AC
 Max. switching frequency at rated load 0.1 Hz
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 250 V
 Min. switching power 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
 AC switching capacity (resistive), max 1250 VA

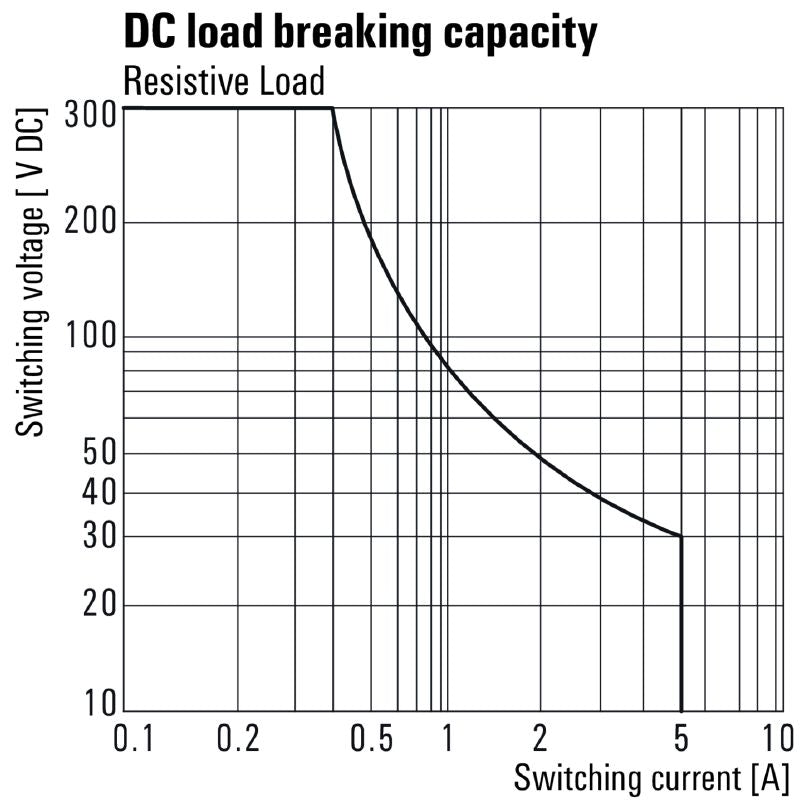

 DC switching capacity (resistive), max 150 W @ 24 V
 Switch-on delay ≤ 15 ms
 Switch-off delay ≤ 10 ms

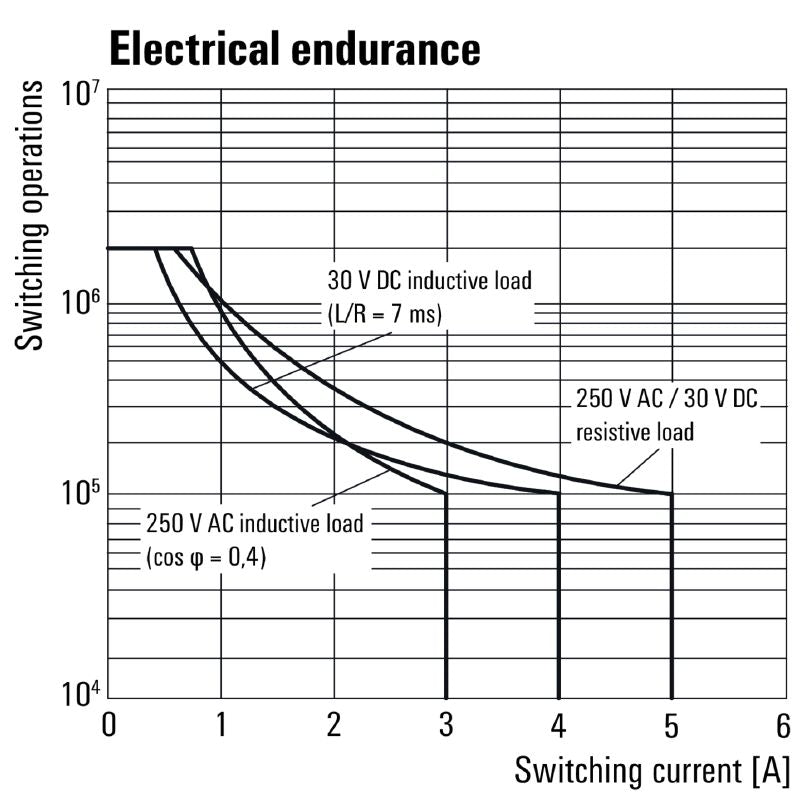

 Mechanical service life 10 x 10^6 switching cycles
 Humidity 35...85 % relative humidity, no condensation
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…55 °C

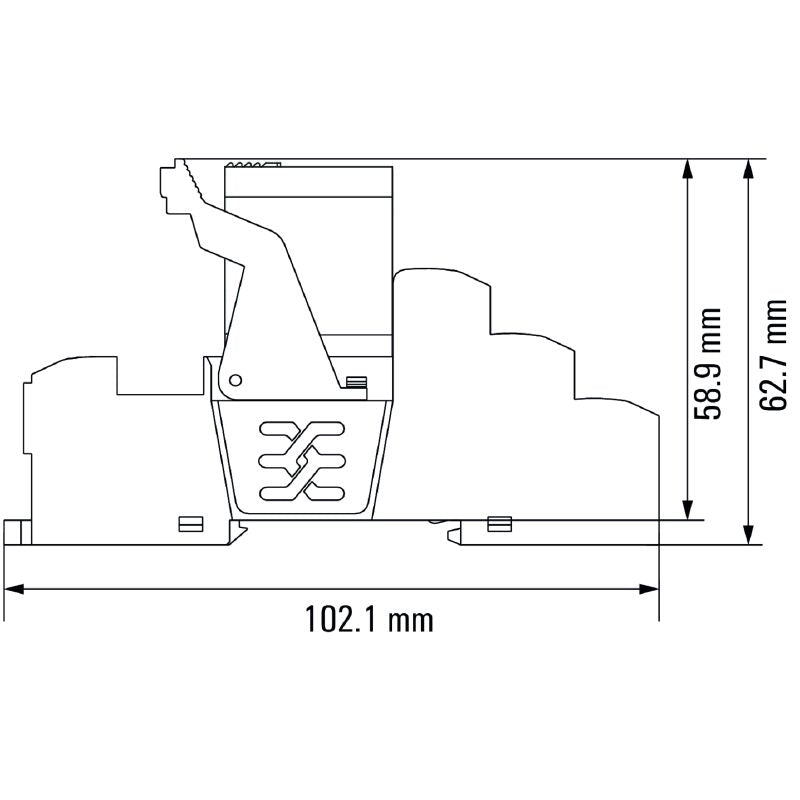

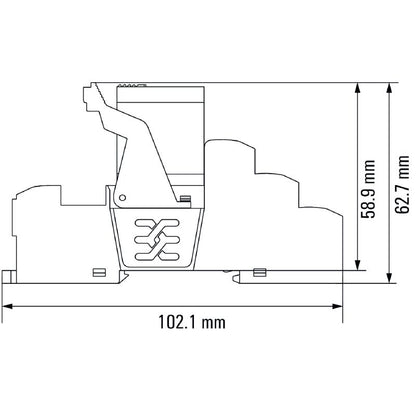

 Dimensions {'Depth': '63 mm', 'Height': '102.1 mm', 'Width': '15.9 mm'}
 Insulation coordination {'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III'}
 Protection degree IP20
