2576010000 - 115V AC Relay Module with 4 Contacts, 82.3mm Deep (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

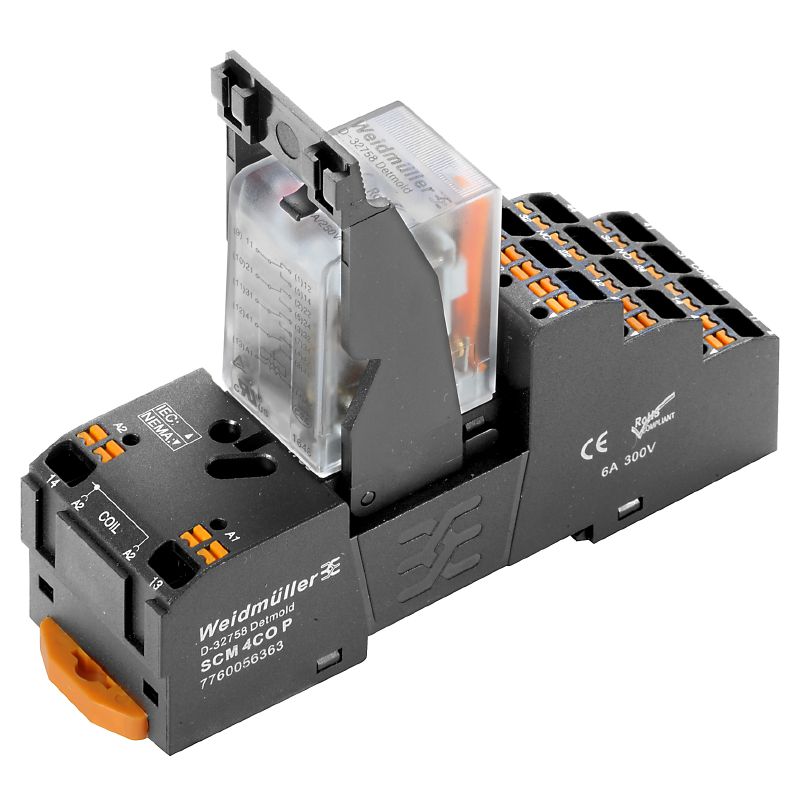

Experience reliable performance with the DRMKITP 115VAC 4CO LD relay module, crafted with four CO contacts featuring AgNi and flash gold plating for superior connectivity Designed to operate at a control voltage of 115 V AC, this module boasts a continuous current rating of 5 A The innovative PUSH IN wire connection ensures secure installations, although it does not come with a built-in test button.

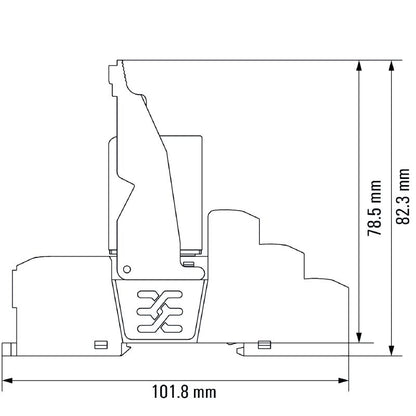

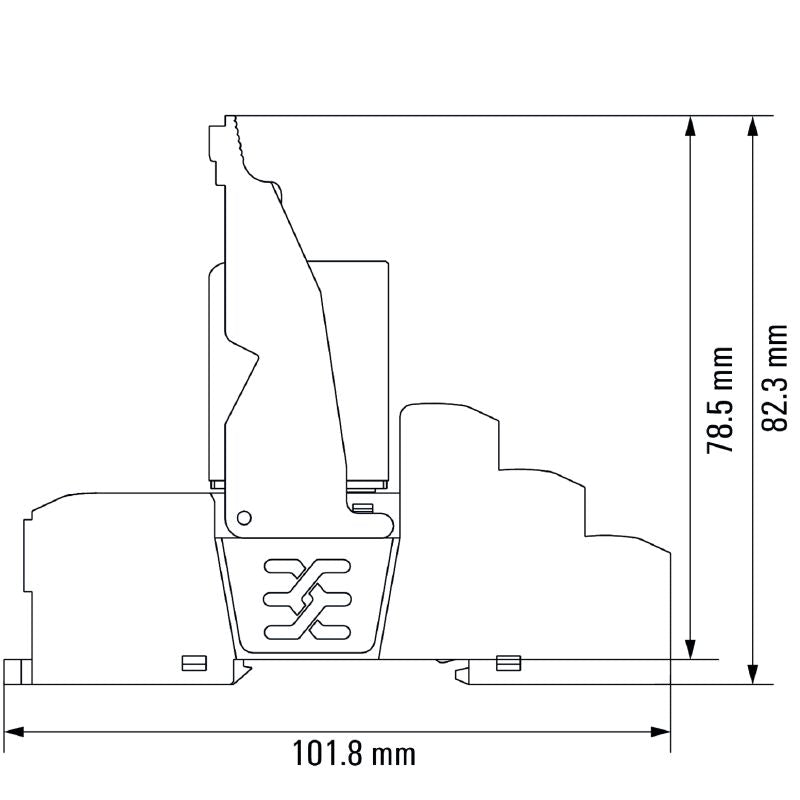

With dimensions of 823 mm in depth, 1018 mm in height, and 306 mm in width, this compact relay weighs approximately 1082 grams It meets RoHS standards and is free from any SVHCs above 01 wt% Capable of functioning effectively in temperatures ranging from -40 °C to 55 °C, it can also be safely stored in environments between -40 °C and 70 °C The module is designed to operate within relative humidity levels of 35 to 85%, provided there is no condensation.

Features and Benefits:

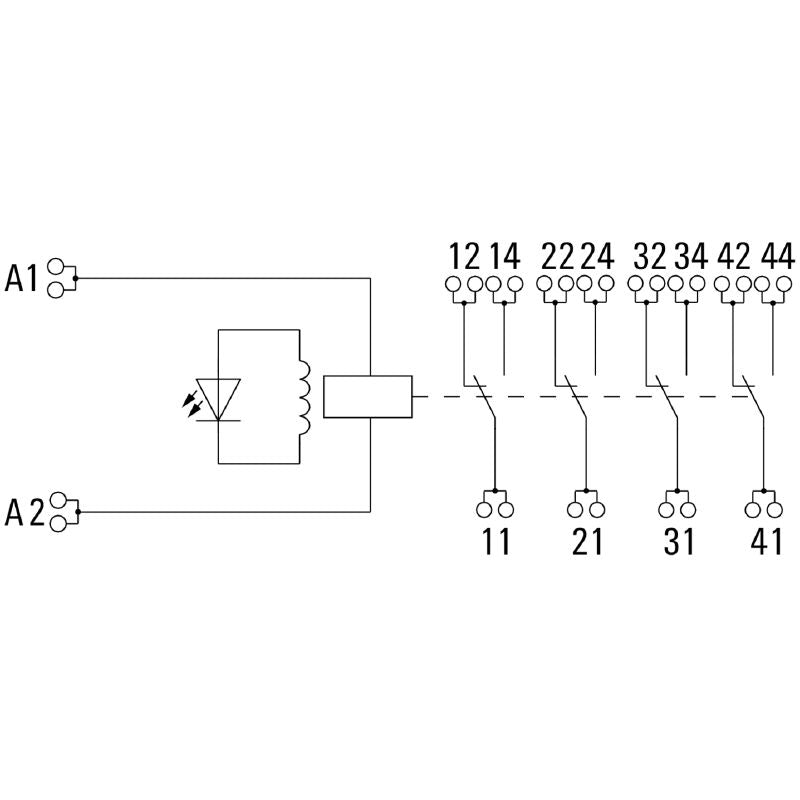

•Four CO contacts that are AgNi flash gold-plated.

•PUSH IN wire connection method.

•Red LED status indicator.

•Mechanical switch position indicator present.

•RoHS compliant without exemptions.

Specifications:
