2476700000 - DRI Relay Module, 110V DC, 10A, Compact 67.7mm Design (Pack of 10)

SKU: SKU: 2476700000 Download PDF

Variant:

2476700000 - DRI Relay Module, 110V DC, 10A, Compact 67.7mm Design (Pack of 10)

Now $90.69

~~BEFORE $0.00~~ Now $90.69

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

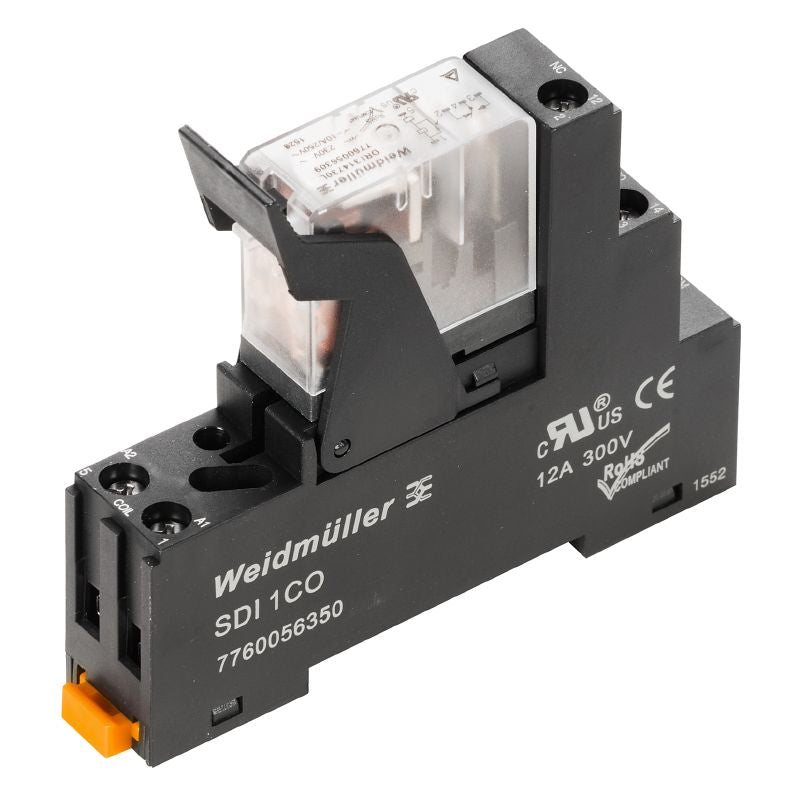

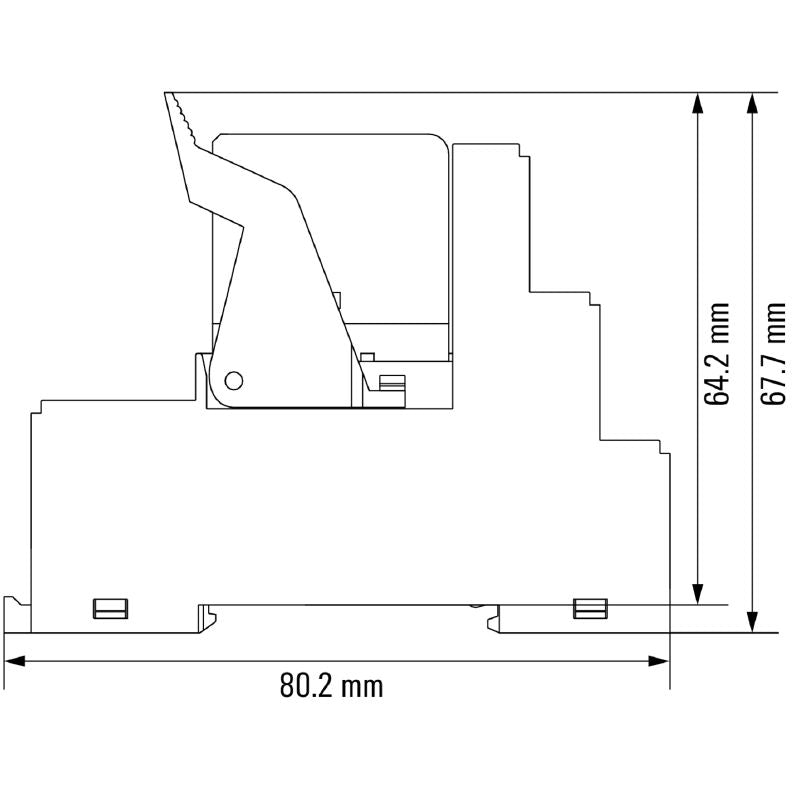

Introducing the D-SERIES DRI relay module, a reliable component featuring a single CO contact made from AgSnO Operating at a control voltage of 110 V DC, this module has the capability to handle a continuous current of up to 10 A It is designed for easy installation with its screw connection, although it does not come with a test button The compact dimensions of this relay are 677 mm in depth, 802 mm in height, and 15.

8 mm in width, weighing just 50688 g Additionally, it adheres to RoHS standards, with some exemptions, and recognizes lead as a substance of very high concern (SVHC).

Features and Benefits:

•Screw connection.

•No test button available.

•Green LED status indicator.

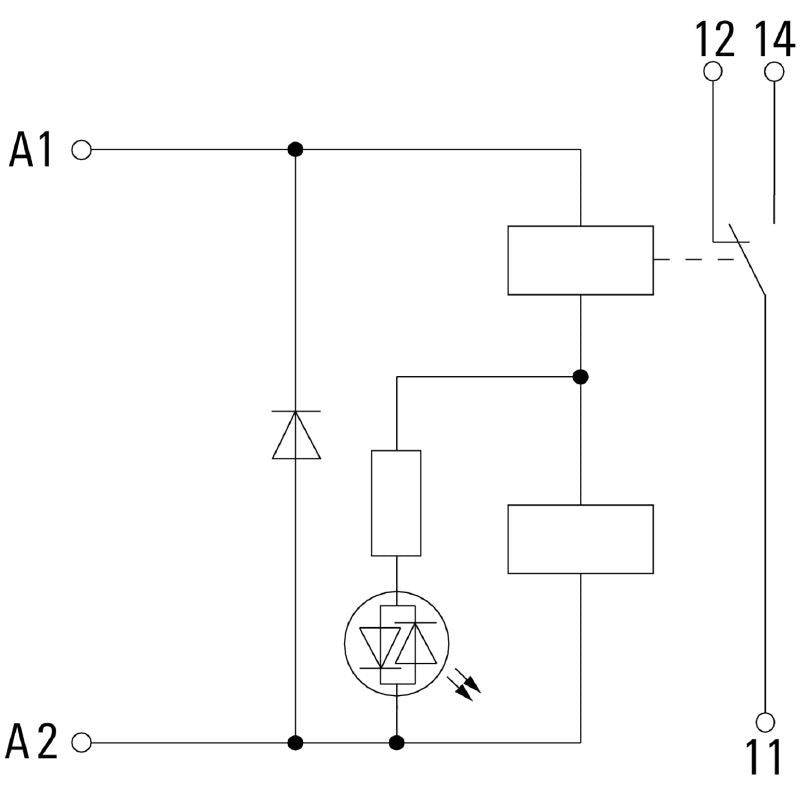

•Free-wheeling diode for protective circuit.

•No mechanical switch position indicator.

•Mounting rail compatible with TS 35.

Specifications:

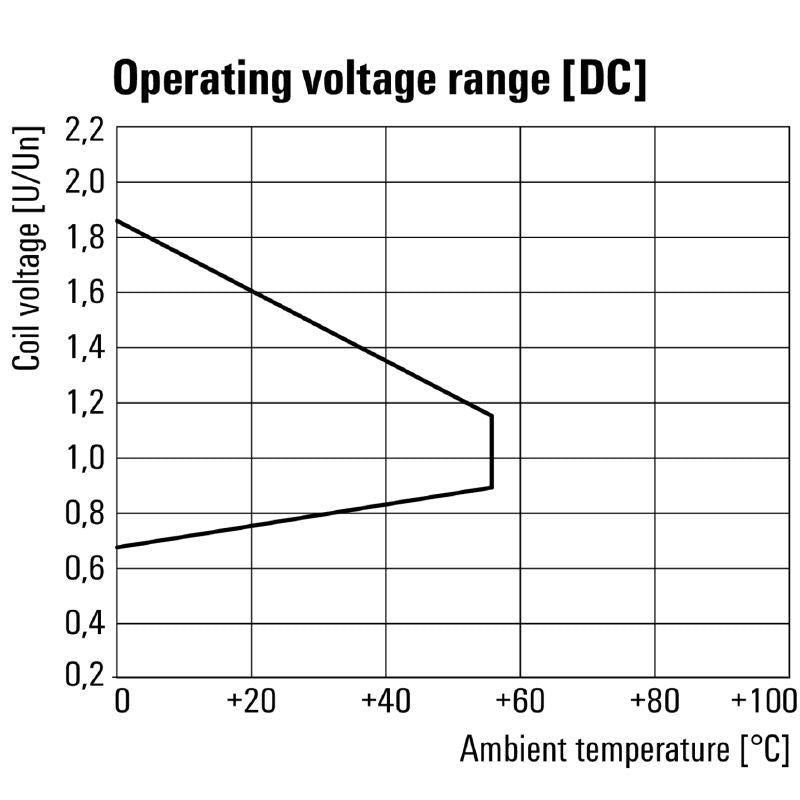

Rated control voltage	110 V DC
Rated current DC	4.8 mA
Power rating	530 mW
Coil resistance	22800 Ω ± 10 %
Rated switching voltage	250 V AC
Continuous current	10 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Max. switching voltage, DC	250 V
Min. switching power	10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
AC switching capacity (resistive), max.	2500 VA

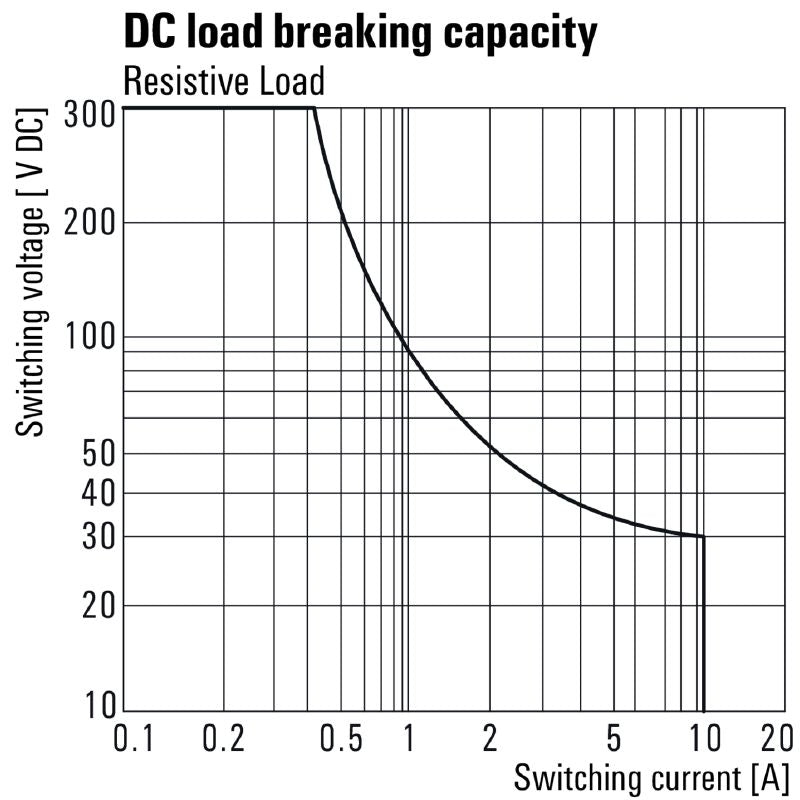

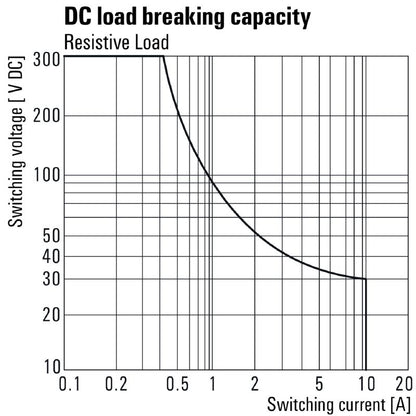

DC switching capacity (resistive), max.	240 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms
Contact type	1 CO contact (AgSnO)

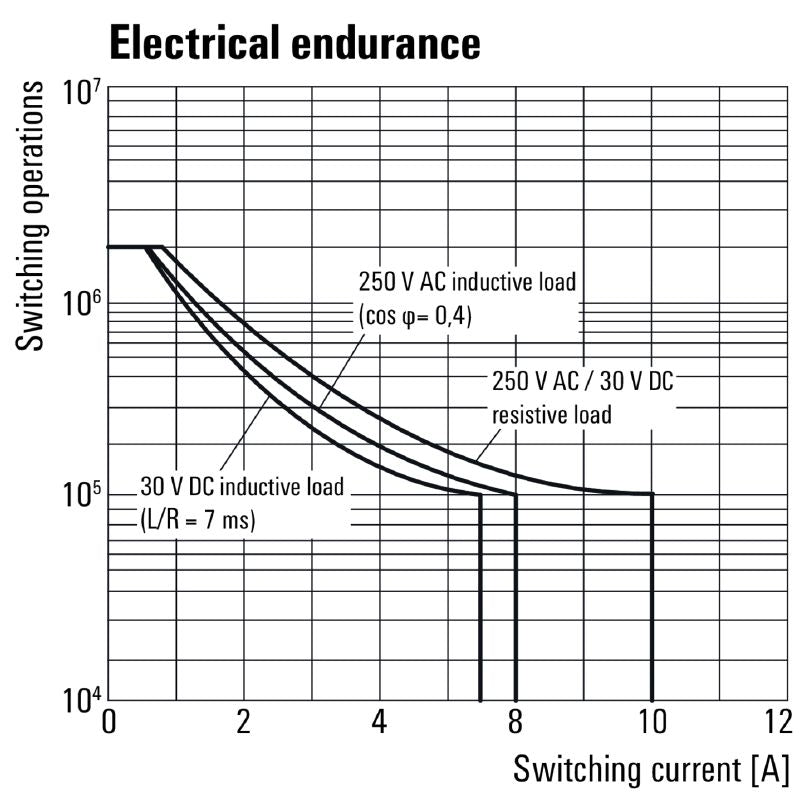

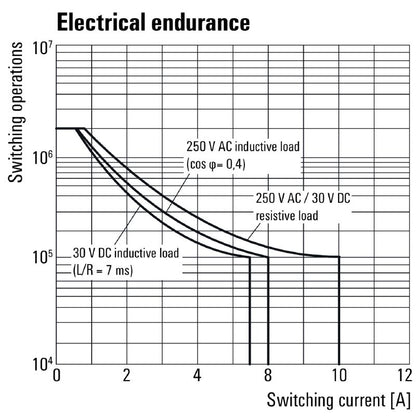

Mechanical service life	10 x 10^6 switching cycles
UL94 flammability rating	{'Housing': 'V-2', 'Mounting foot': 'HB', 'Retaining clip': 'HB', 'Relay cover': 'V-2', 'Relay baseplate': 'V-0'}
Protection degree	IP20
Wire connection method	Screw connection
Tightening torque, min.	0.5 Nm
Tightening torque, max.	0.8 Nm
Clamping range, rated connection	1.5 mm²
Clamping range, min.	0.25 mm²
Clamping range, max.	4 mm²
Insulation coordination - Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Clearance and creepage distances for control side - load side	≥ 3 mm
Dielectric strength for control side - load side	4 kV eff / 1 Min.
Dielectric strength of open contact	1 kV eff / 1 min
Impulse withstand voltage	4.8 kV (1.2/50 µs)
Certificate no. (cURus) relay	E312083
Certificate no. (cURus) base	E355547
