2153570000 - 120V Relay Module, Single CO Contact, 6A Capacity (Pack of 10)

2153570000 - 120V Relay Module, Single CO Contact, 6A Capacity (Pack of 10)

SKU: 2153570000 Download PDF

Variant:
  • 2153570000 - 120V Relay Module, Single CO Contact, 6A Capacity (Pack of 10)
Now $168.20
BEFORE   $0.00 Now $168.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

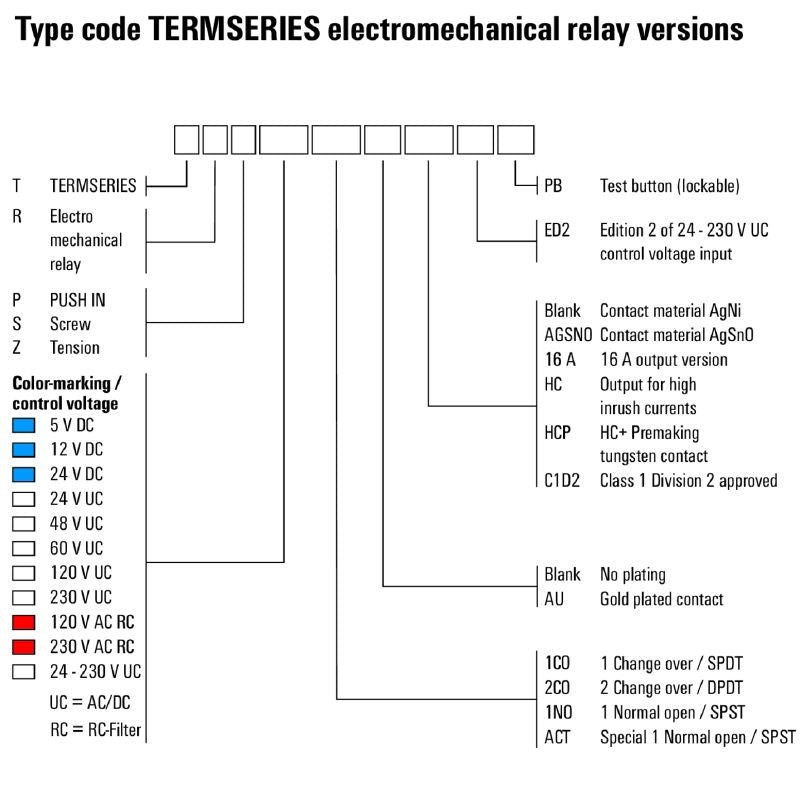

Introducing the TRS 120VUC 1CO AGSNO relay module, an efficient solution featuring a single CO contact made from AgSnO material This robust device operates with a control voltage of 120 V UC ±10% and is capable of managing a continuous current of up to 6 A Designed with screw connections for secure installations, please note that this model does not come with a test button Ideal for various applications requiring reliable performance.

Features and Benefits:

    •Screw connection method.

    •Ambient temperature operable range up to 60 °C.

    •Protection degree of IP20.

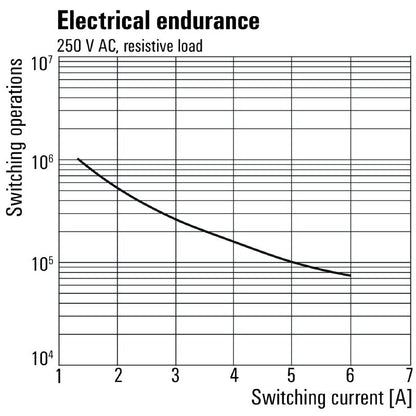

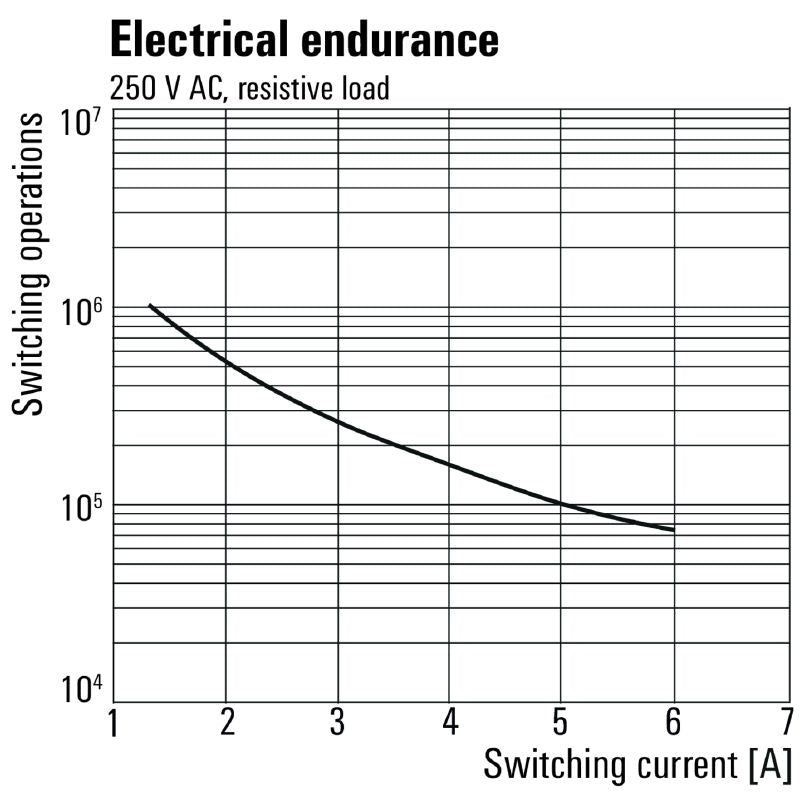

    •Mechanical service life of 5 million switching cycles.

    •Colored black.

Specifications:

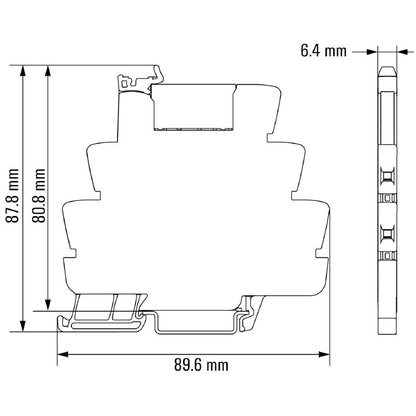

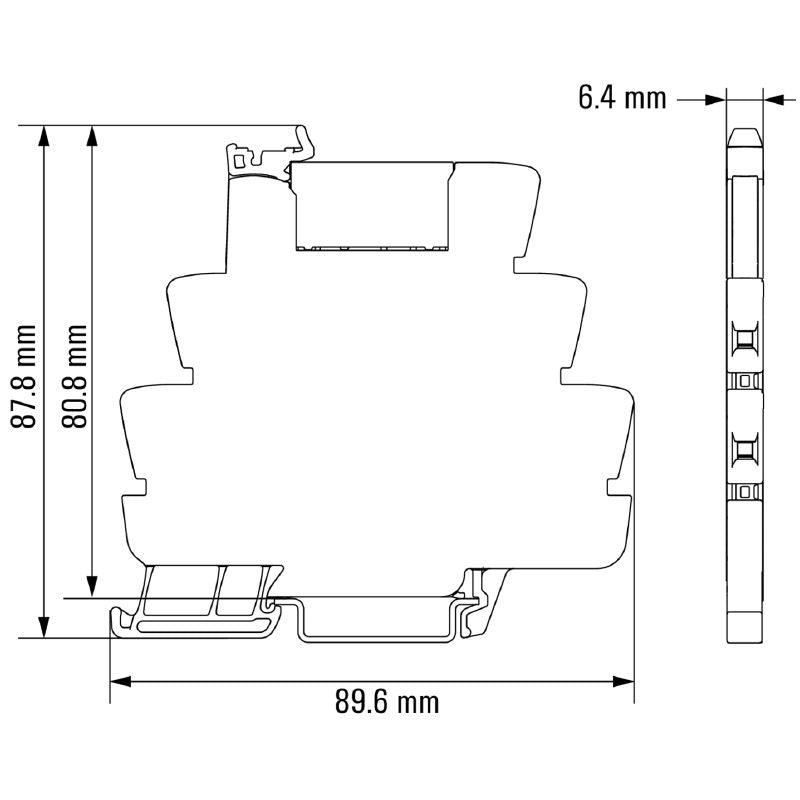

 Depth 87.8 mm
 Height 89.6 mm
 Width 6.4 mm
 Net weight 31.06 g
 Storage temperature -40 °C to 85 °C
 Ambient temperature -40 °C to 60 °C
 Rated control voltage 120 V UC ±10 %
 Rated current AC 4 mA
 Rated current DC 3.5 mA
 Output current derating 5 A @ 60 °C, 6 A @ 55 °C
 Rated switching voltage 250 V AC
 Continuous current 6 A
 Max. switching frequency at rated load 0.1 Hz
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 250 V
 Min. switching power 100 mA @ 12 V
 Inrush current 30 A / 20 ms
 AC switching capacity (resistive), max. 1500 VA

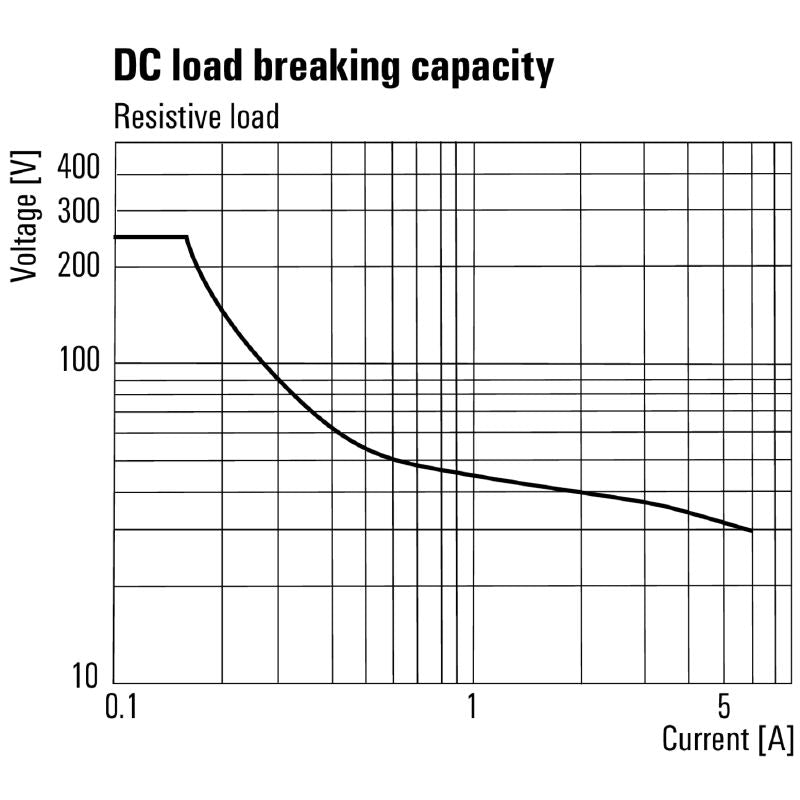

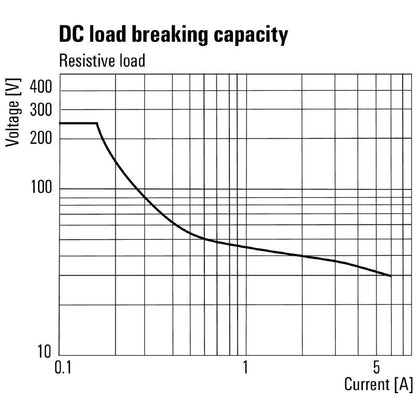

 DC switching capacity (resistive), max. 144 W @ 24 V
 Switch-on delay ≤ 11 ms
 Switch-off delay ≤ 40 ms
 Contact type 1 CO contact (AgSnO)
 UL File Number E141197
 Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Dielectric strength for control side - load side 4 kV eff / 1 Min.
 Type of isolation at input and output reinforced insulation
 Dielectric strength of open contact 1 kV eff / 1 min
 Dielectric strength to mounting rail 4 kV eff / 1 Min.
