1984100000 - RSS110005 Relay, 5V DC, 6A, Single CO Contact, Compact Size (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

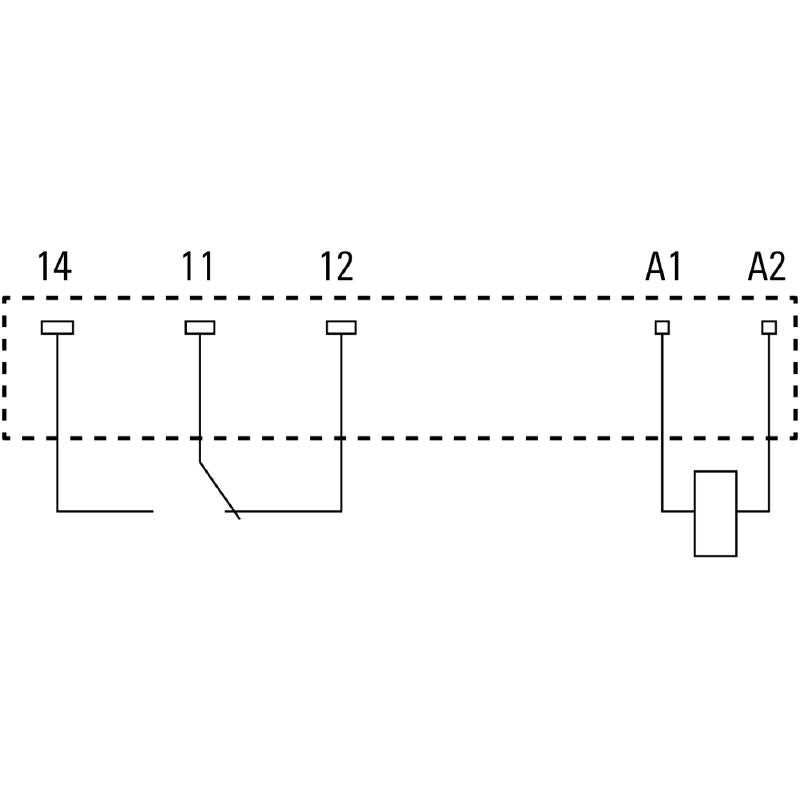

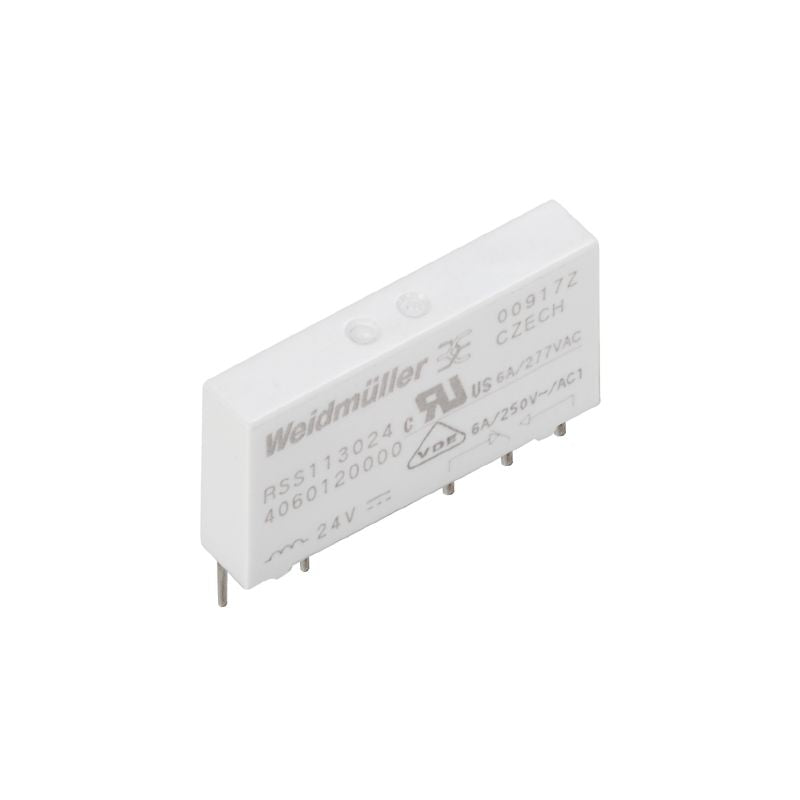

Introducing the RSS110005 relay, a top-notch component designed for versatility and reliability This device features a single changeover (CO) contact with durable silver tin oxide (AgSnO) plating, ensuring optimal performance It operates efficiently at a control voltage of 5 V DC while managing a continuous current of 6 A The relay comes with a convenient plug-in connection, though it does not have a test button.

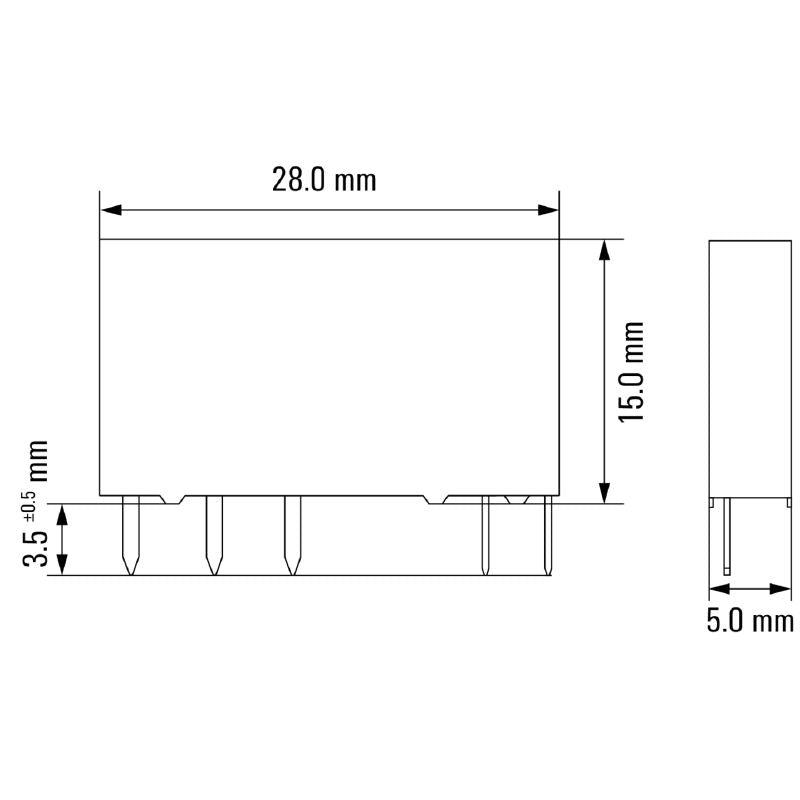

With compact dimensions of 15 mm in depth, 28 mm in height, and 5 mm in width, it has a lightweight design of just 5 g, making installation effortless It excels in various environments, functioning well within a temperature range of -40 °C to 85 °C This product is RoHS compliant and contains no SVHC above 01 wt%, ensuring it meets high environmental standards.

Features and Benefits:

•Plug-in connection.

•No test button available.

•Compliant with RoHS and REACH.

•Protection degree IP67.

Specifications:
