1479980000 - 16A Relay Module, 24-230V UC Tension-Clamp Connection (Pack of 10)

1479980000 - 16A Relay Module, 24-230V UC Tension-Clamp Connection (Pack of 10)

SKU: SKU: 1479980000   Download PDF

Select a Variant:
  • 1479980000 - 16A Relay Module, 24-230V UC Tension-Clamp Connection (Pack of 10)
Qty:
Regular price Now $358.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $358.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the TRZ 24-230VUC 1NO HCP relay module, engineered for optimal performance with its single normally open contact crafted from AgSnO + W This reliable module operates within a control voltage range of 24 to 230 V UC, featuring a tolerance of ±10%, and can manage a steady current of up to 16 A It utilizes a robust tension-clamp connection for secure wiring, though it does not include a test button.

This device is RoHS compliant and comes with UL certification, ensuring it meets rigorous safety standards.

Features and Benefits:

    •One normally open contact made from AgSnO + W.

    •Rated control voltage of 24…230 V UC ±10 %.

    •Continuous current of 16 A.

    •Tension-clamp connection.

Specifications:

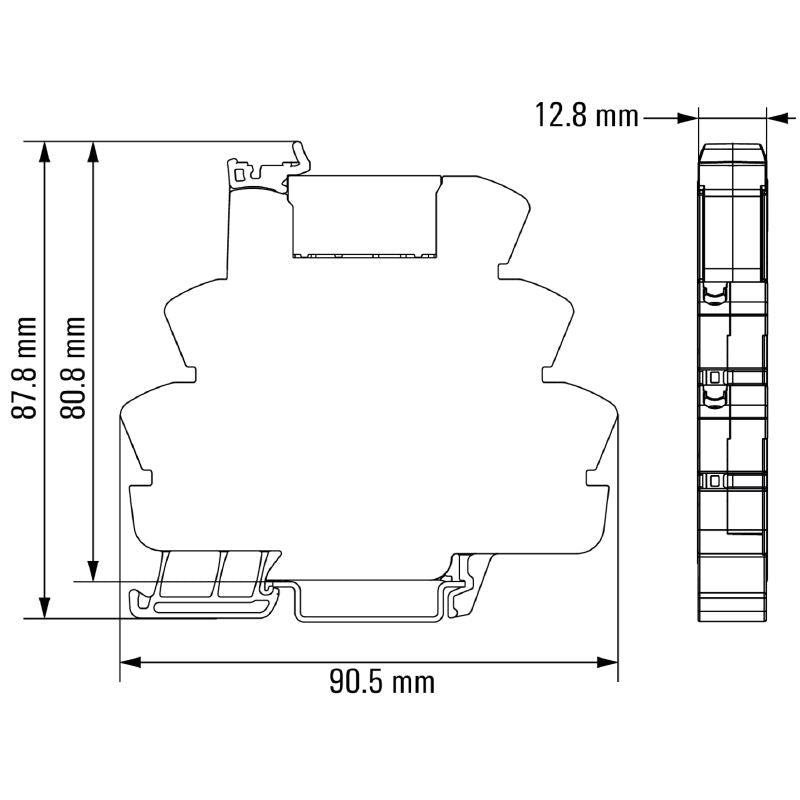

 Depth 87.8 mm
 Height 90.5 mm
 Width 12.8 mm
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…40 °C
 Rated current AC 30.0 mA AC @ 24 V AC, 7.2 mA AC @ 230 V AC
 Rated current DC 40.5 mA DC @ 24 V DC, 3.4 mA DC @ 230 V DC
 Power rating 980 mW @ 24 V DC, 650 mVA @ 24 V AC, 780 mW @ 230 V DC, 1.68 VA @ 230 V AC
 Status indicator Green LED
 Protection degree IP20
