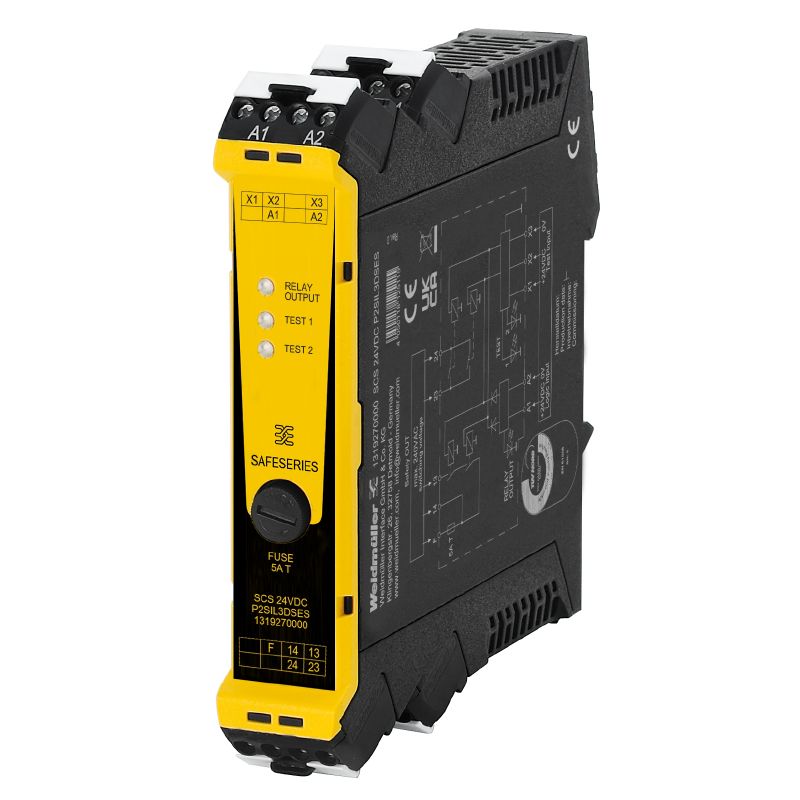

1319270000 - SIL 3 Safety Relay 24VDC with Fuse Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SCS 24VDC P2SIL3DSES safety relay, engineered to operate with a 24 V DC power source, accommodating a tolerance range from -15% to +20% This robust relay boasts a maximum switching current of 5 A and meets SIL 3 compliance as outlined in DIN EN 61508 standards, highlighting its safety credentials It features built-in fuse protection for enhanced reliability and adherence to RoHS regulations.

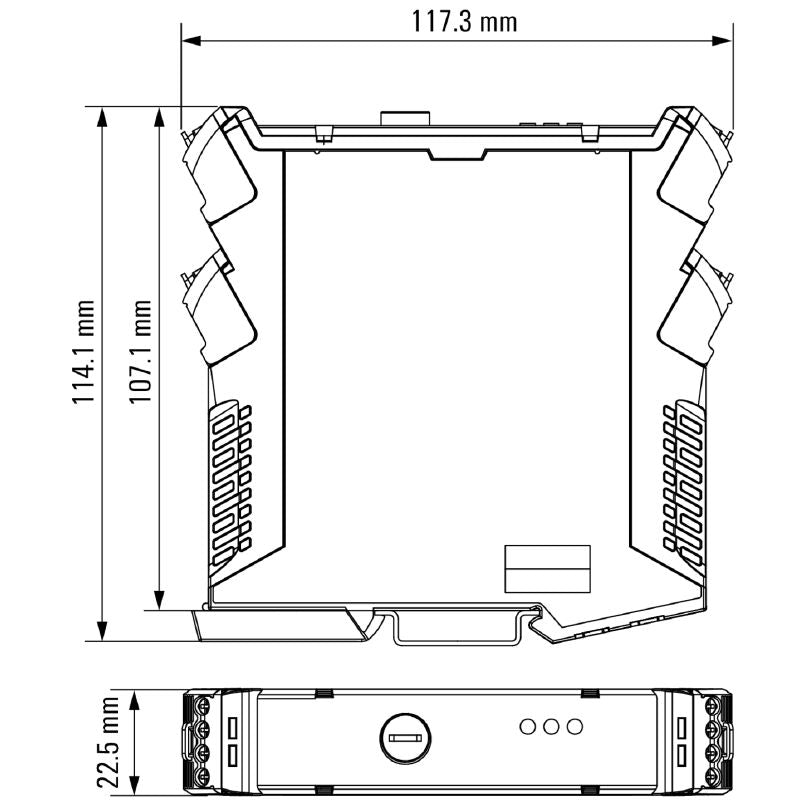

Measuring 1141 mm in depth, 1173 mm in height, and 225 mm in width, this relay weighs 200 g and comes with multiple safety certifications, ensuring its dependable performance in various applications.

Features and Benefits:

•LED status indicators for operating mode and test input.

•Screw connection wire method for enhanced reliability.

•Suitable for mounting on TS 35 rail.

•Designed for high safety standards with a hardware fault tolerance of 1.

•Supports control voltages of 24 V DC with a tested performance.

•Flexible wire connection size ranges, compatible with various gauge wires.

Specifications:
