Description:

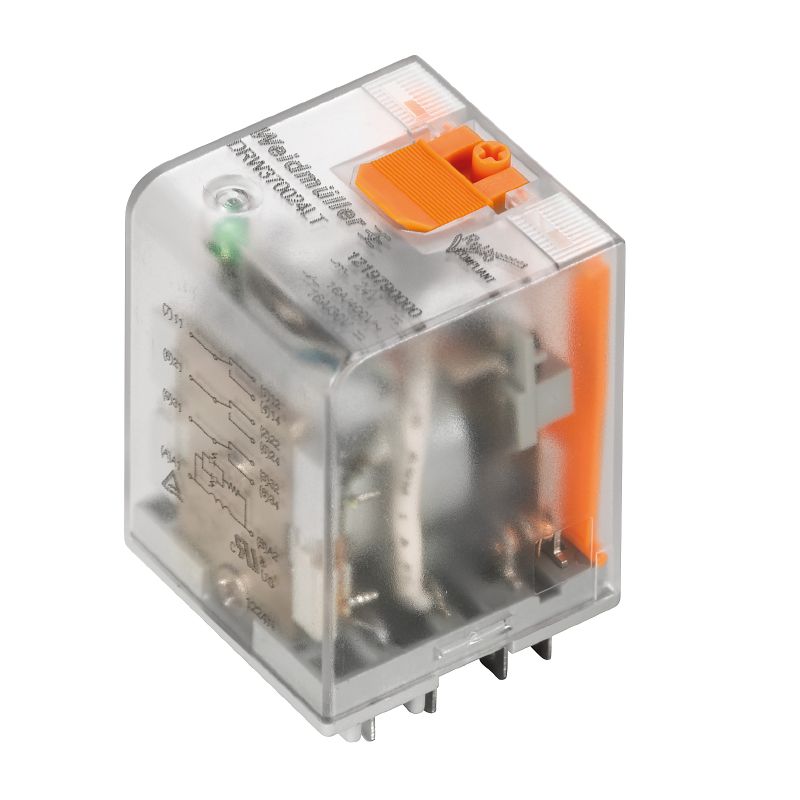

Introducing a reliable D-series relay compliant with ROHS standards, identified by certificate number E312083 This relay features one normally open (NO) contact and one normally closed (NC) contact, suitable for applications with a 115 V AC rated control voltage and a continuous current capacity of 16 A For easy installation, it comes equipped with flat blade connections measuring 48 mm x 05 mm, and it includes a handy test button for convenient operation.

Features and Benefits:

•The relay has a test button that is lockable and a momentary option..

•It features a mechanical switch position indicator..

•The relay is compliant with RoHS regulations without exemptions and does not have any SVHC above 0.1 wt%..

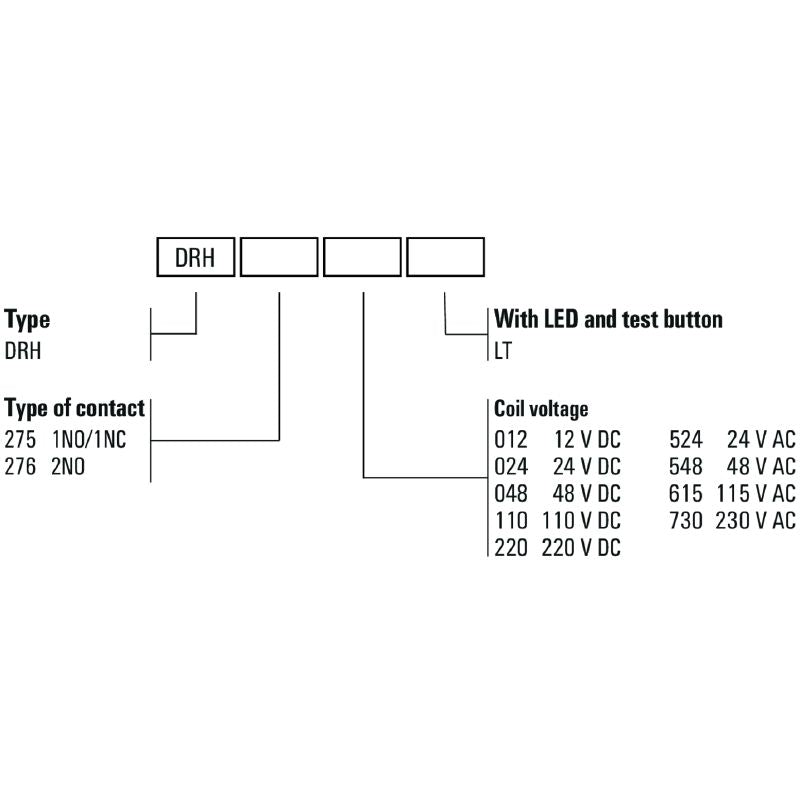

Specifications:

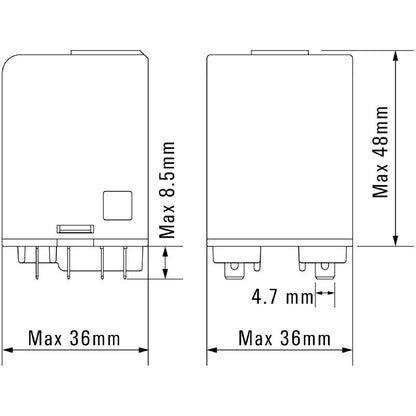

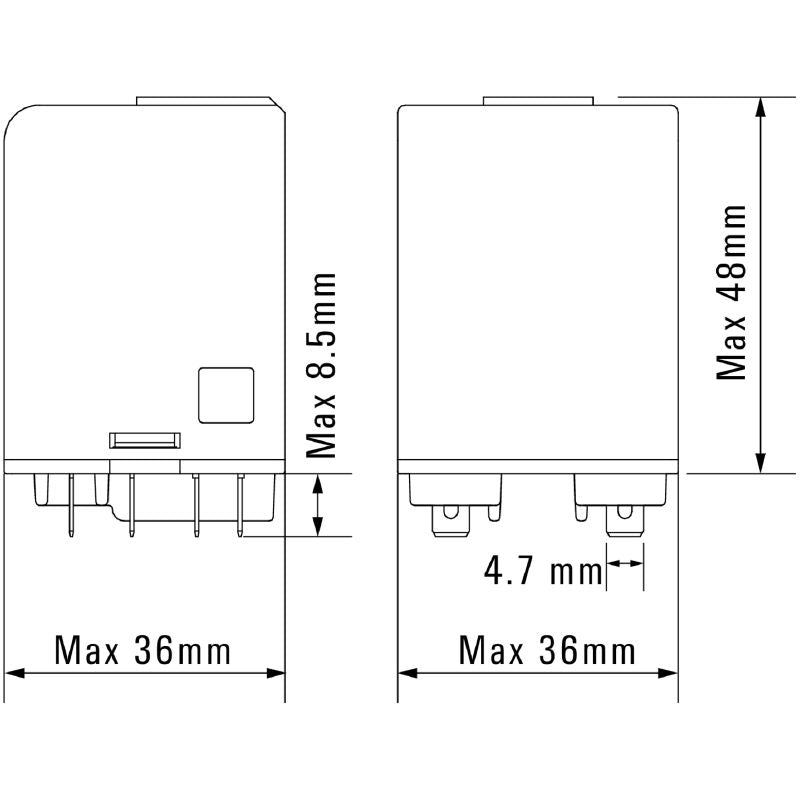

Depth	48 mm
Height	36 mm
Width	36 mm
Storage temperature	-40 °C...60 °C
Ambient temperature	-40 °C…60 °C
Humidity	5...85 % rel. humidity, no condensation

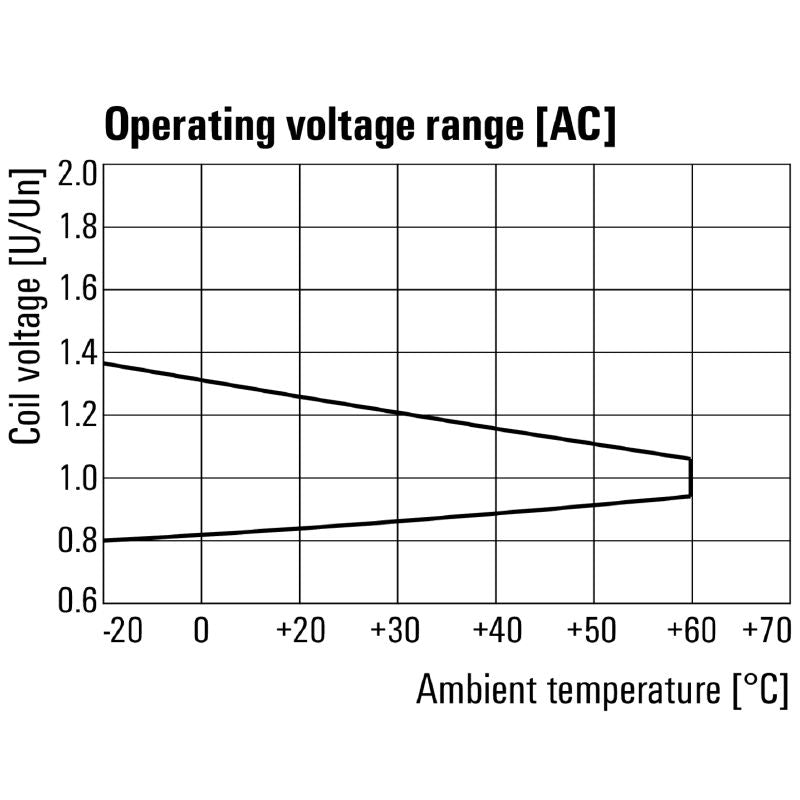

Rated control voltage	115 V AC
Rated current AC	21 mA
Power rating	2.5 VA
Coil resistance	2200 Ω ± 10 %
Status indicator	red LED
Rated switching voltage	250 V AC
Continuous current	16 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	400 V
Max. switching voltage, DC	300 V
Min. switching power	100 mA @ 12 V
Inrush current	80 A / 50 ms
AC switching capacity (resistive), max.	4000 VA

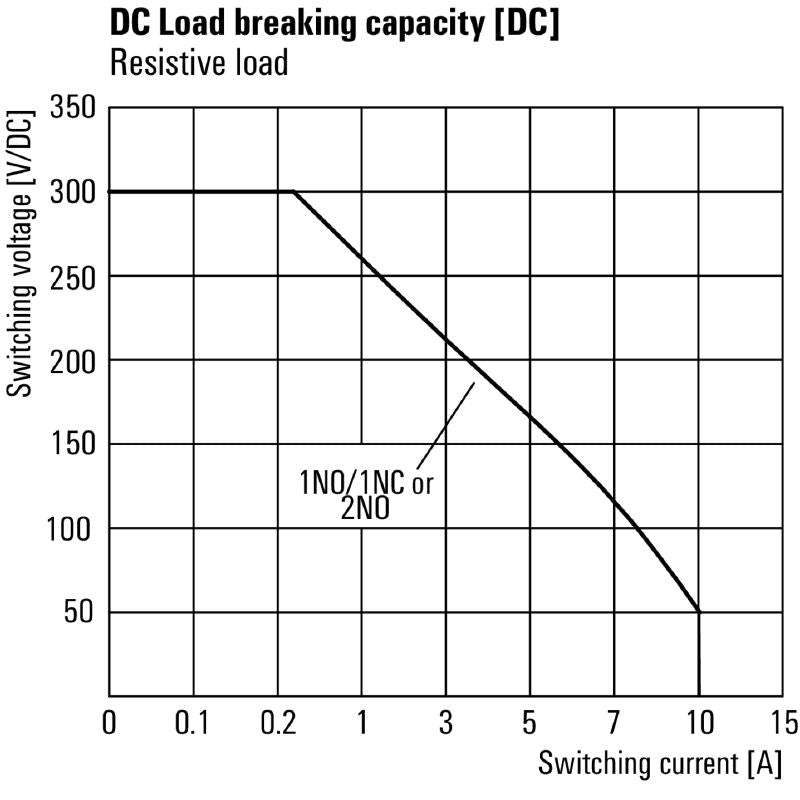

DC switching capacity (resistive), max.	660 W @ 220 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

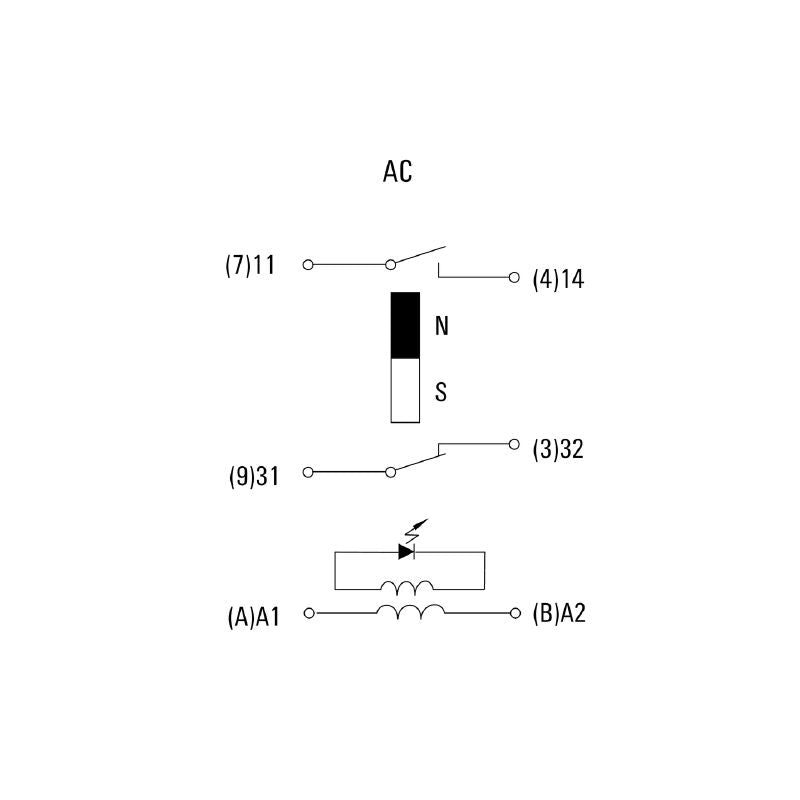

Contact type	1 NO contact and 1 NC contact with blow-out magnet (AgSnO)

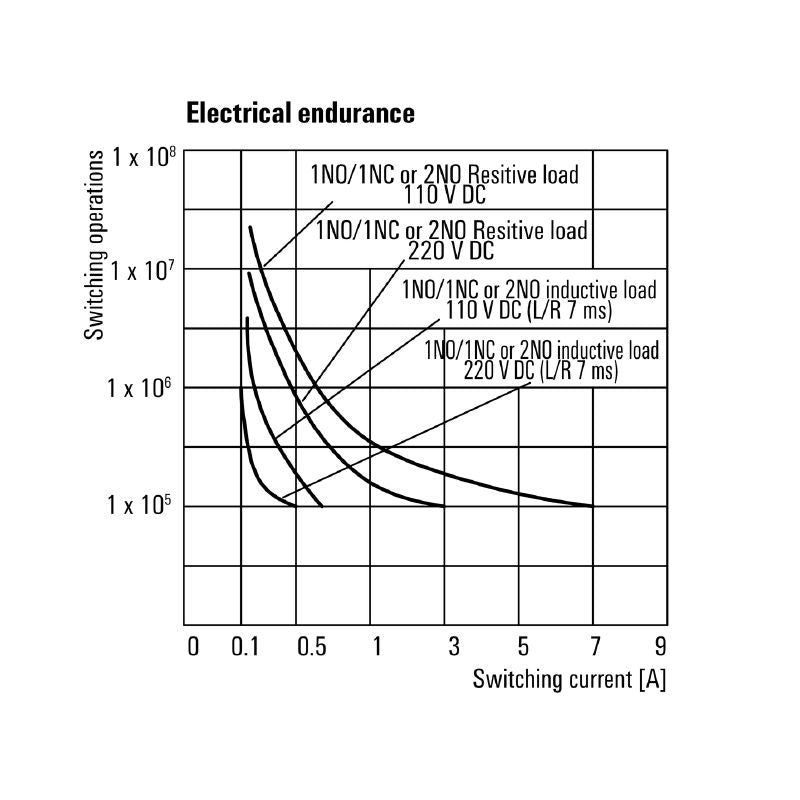

Mechanical service life	10 x 10^6 switching cycles
Insulation coordination according to	EN 61810-1:2008
Rated voltage	400 V
Pollution severity	3
Surge voltage category	III
Insulating material group	IIIa
Clearance and creepage distances for control side - load side	≥ 6.3 mm
Dielectric strength for control side - load side	4 kV eff / 1 min
Dielectric strength of neighbouring contacts	4 kV eff / 1 min
Dielectric strength of open contact	4 kV eff / 1 min
Protection degree	IP20
Wire connection method	Flat blade connections (4.8 mm x 0.5 mm)
UL94 flammability rating component	{'Housing': 'V-2', 'Relay baseplate': 'V-0', 'Relay status indicator': 'HB', 'Relay test button': 'HB'}
