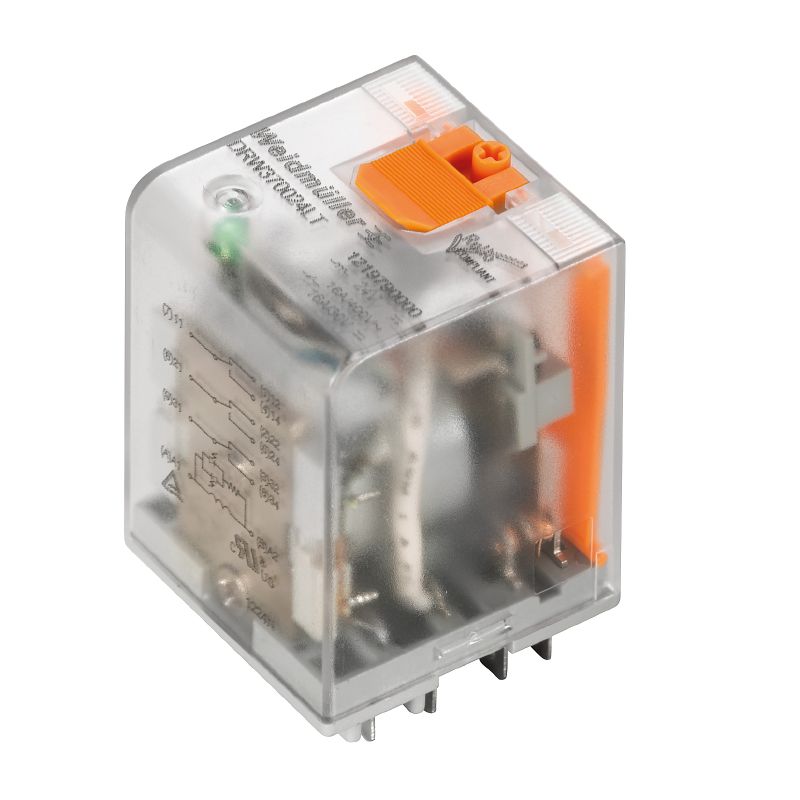

1219970000 - D-Series 110V DC Relay with NC Contact & Test Button (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

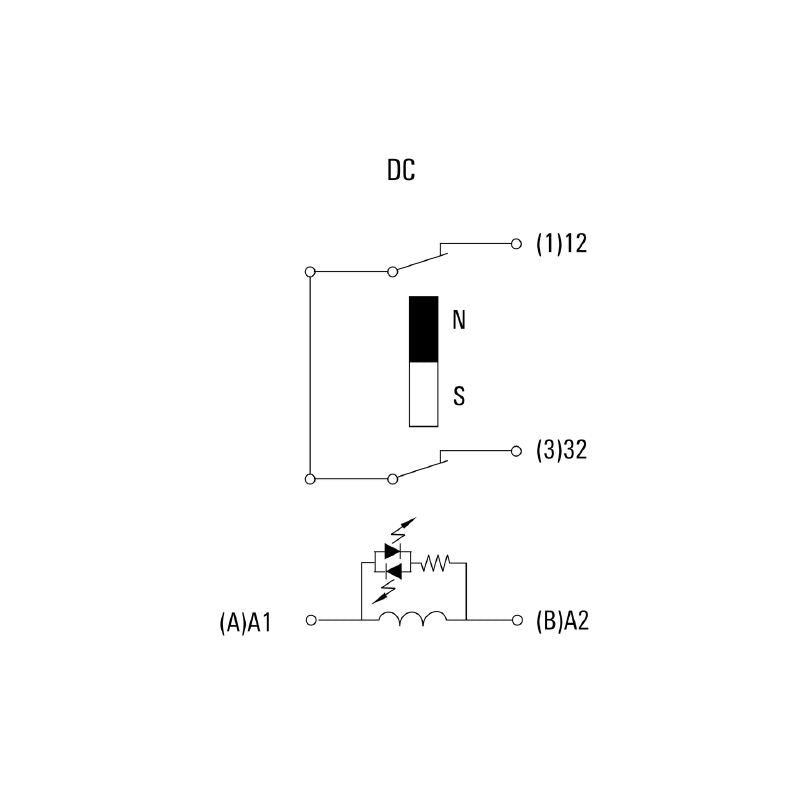

Introducing the D-series relay, a reliable and efficient component for your needs This model boasts a single normally closed contact, enhanced by a blow-out magnet made from AgSnO material It operates effortlessly at a control voltage of 110 V DC and can support a continuous current of up to 16 A The relay connections feature robust flat blade types, measuring 48 mm x 05 mm, and include a handy test button for easy functionality checks.

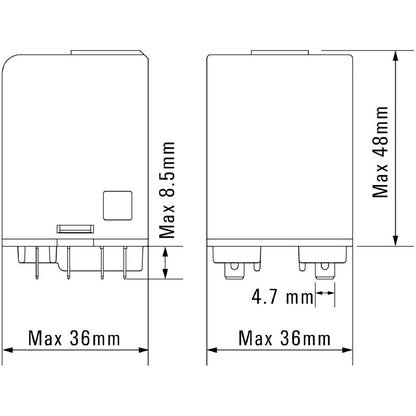

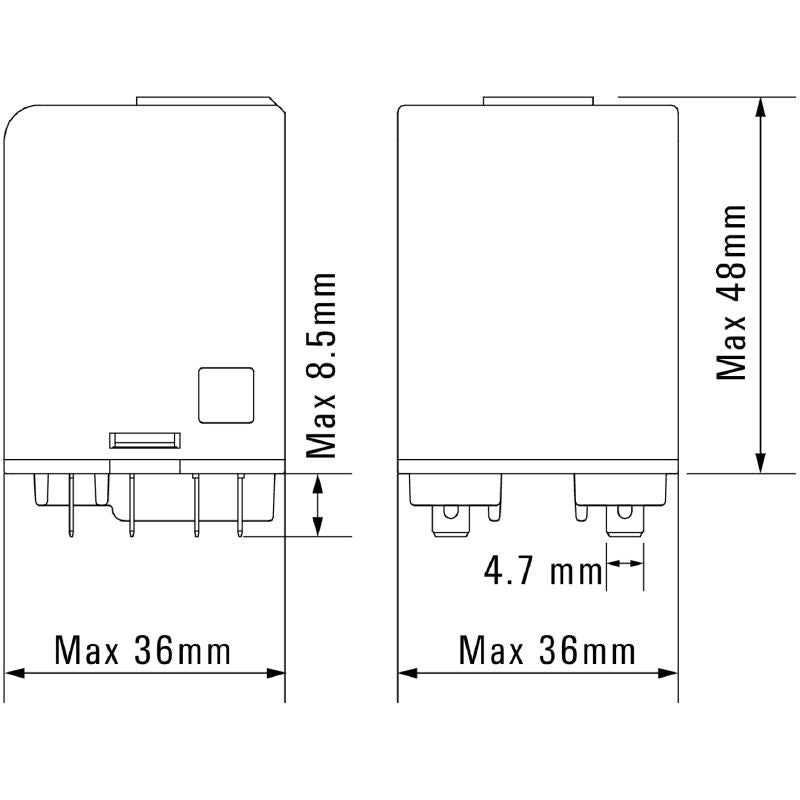

Compact in design, it has dimensions of 48 mm in depth, 36 mm in height, and 36 mm in width, with a lightweight build of just 833 g Perfect for various applications, this relay combines performance with convenience.

Features and Benefits:

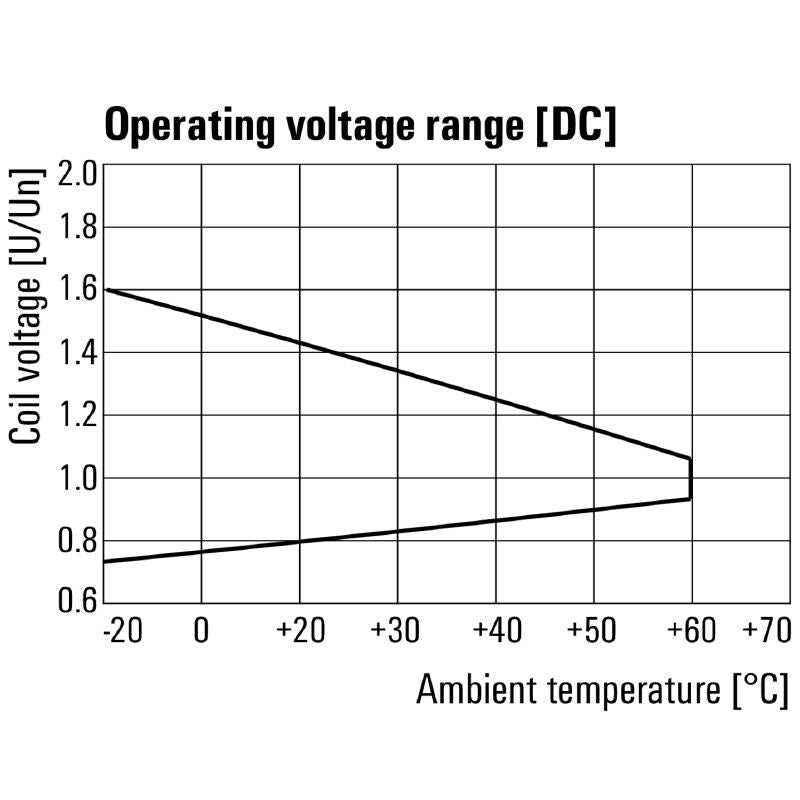

•Control side includes a rated control voltage of 110 V DC.

•Continuous current rating at 16 A.

•Includes a lockable test button.

•Status indicator with a green LED.

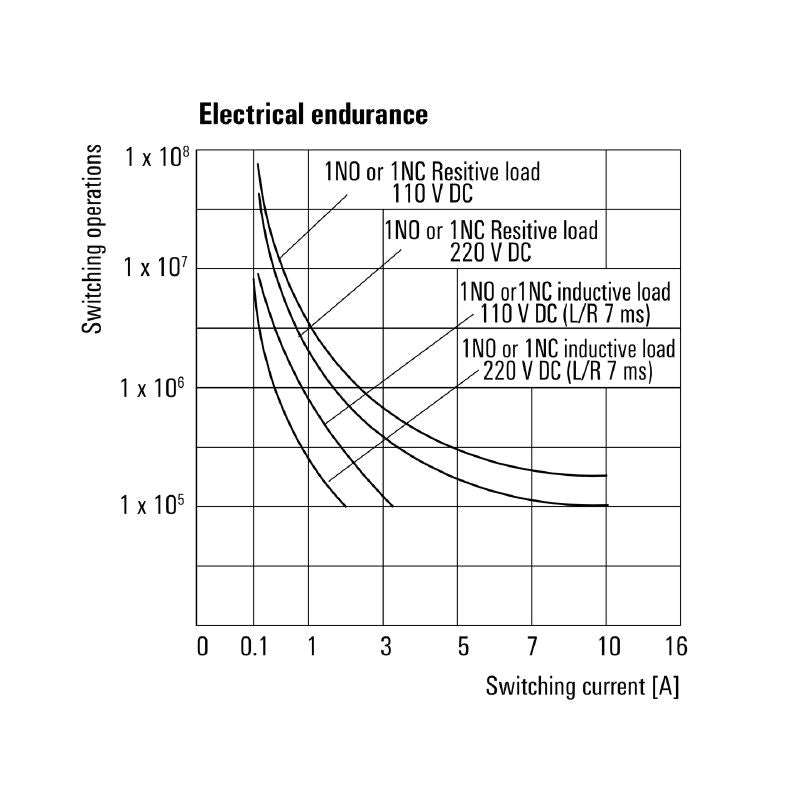

•Mechanical service life rated for 10 million switching cycles.

•Compliant with RoHS without exemption.

Specifications:
