1219920000 - 115V AC Relay with NO Contact and Test Button (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

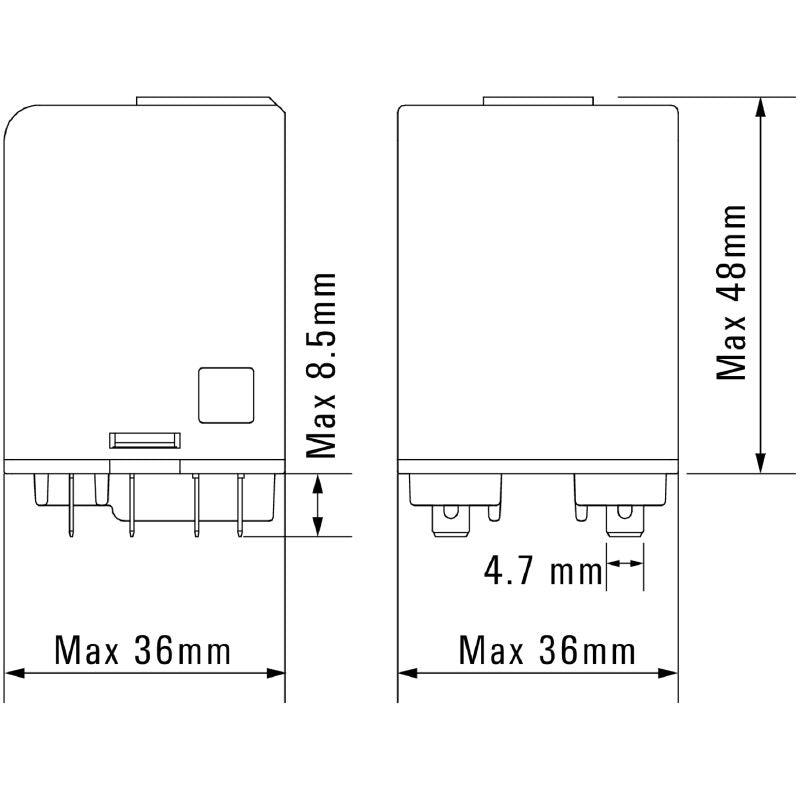

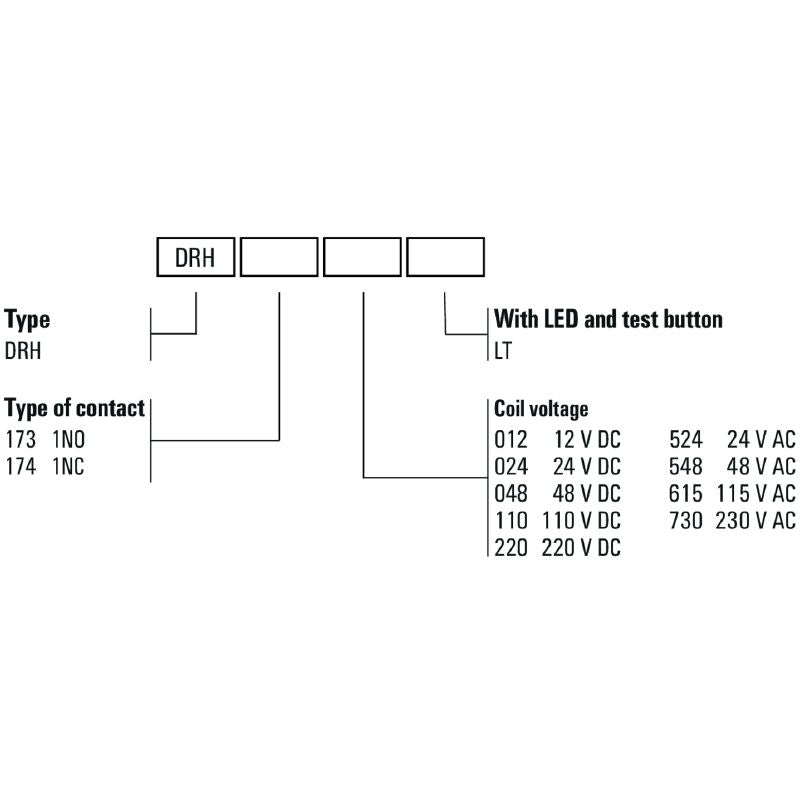

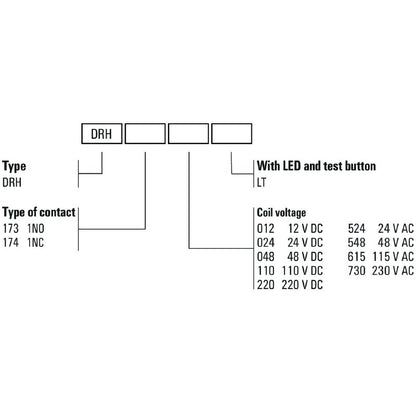

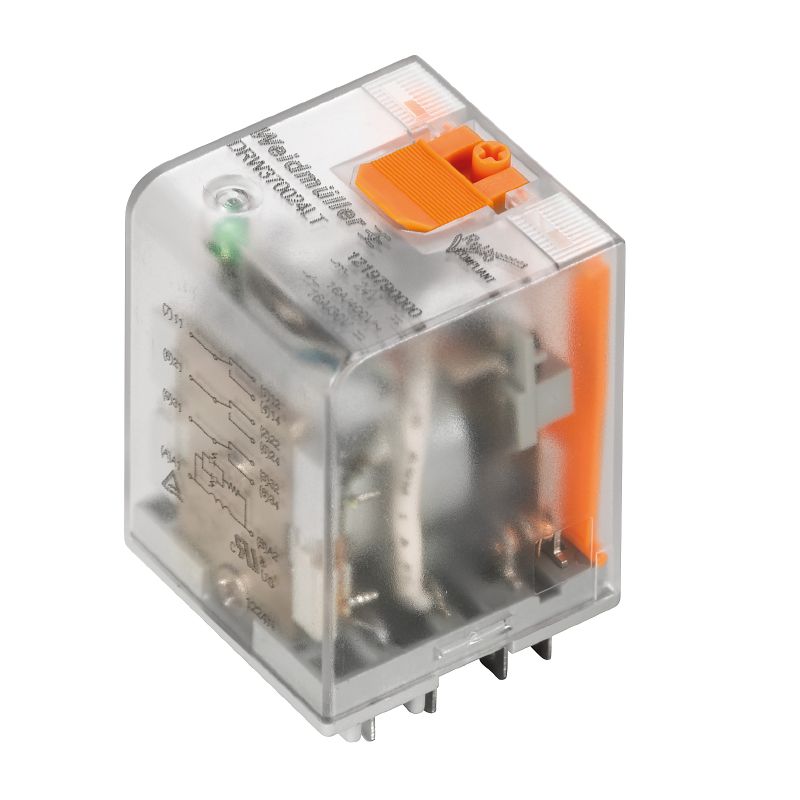

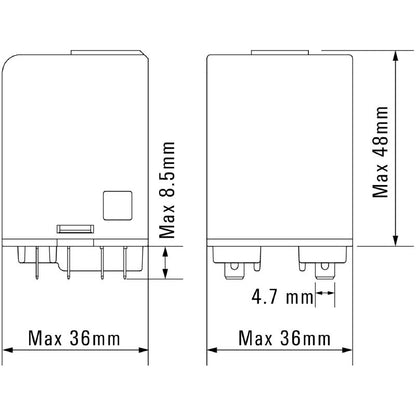

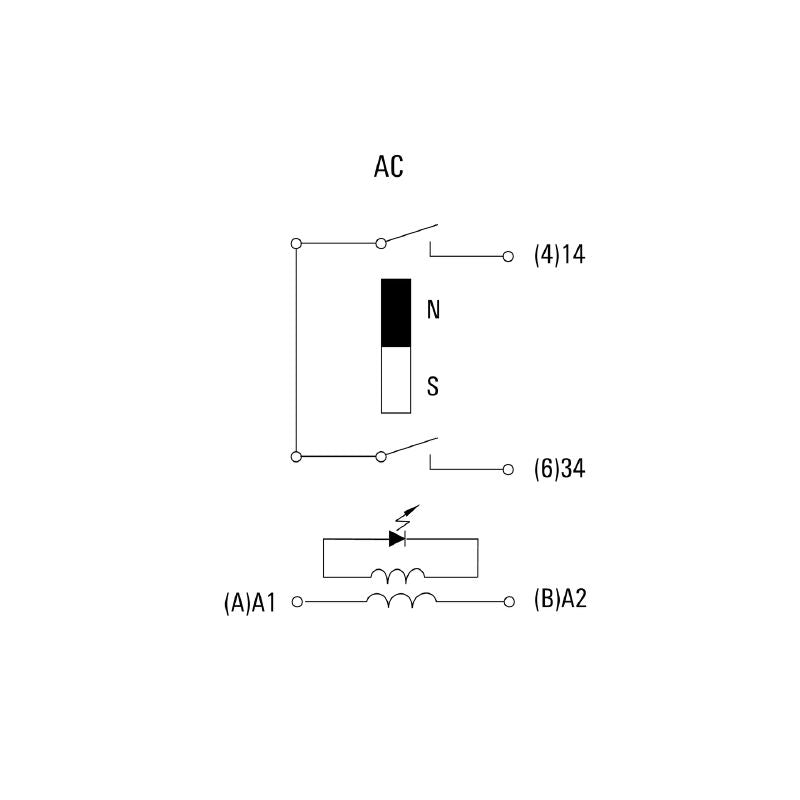

Introducing the DRH173615LT relay, a reliable component featuring a single normally open (NO) contact and an advanced blow-out magnet system, all while adhering to RoHS guidelines This relay operates efficiently at a control voltage of 115 V AC and boasts a continuous current rating of 16 A Enhancing its usability, it comes with flat blade connectors sized at 48 mm x 05 mm and includes a practical test button for easy functionality.

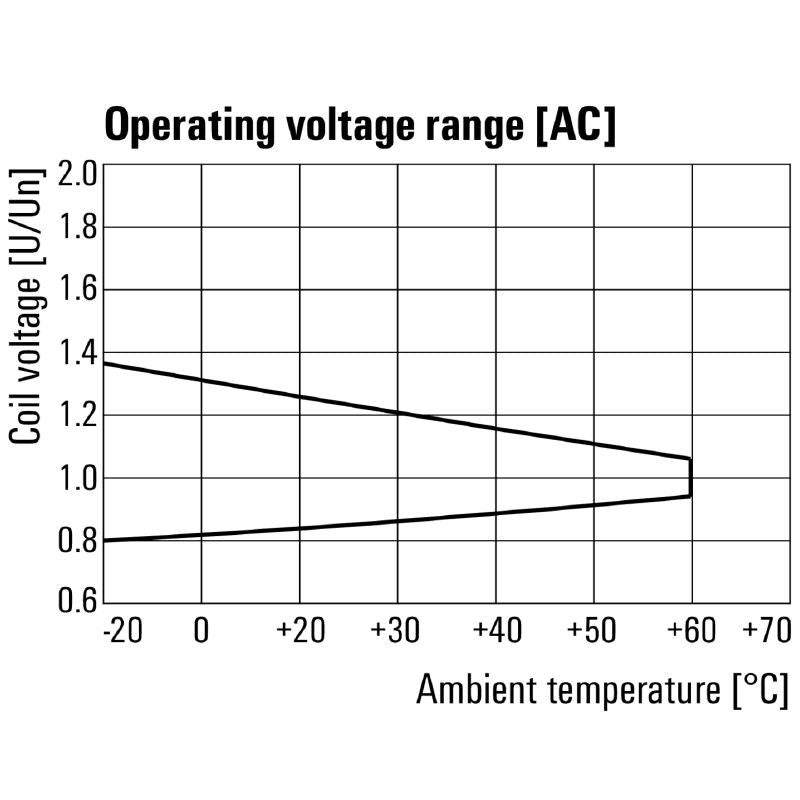

Built to withstand extreme conditions, the relay functions effectively in temperatures ranging from -40 °C to +60 °C and operates comfortably in environments with relative humidity levels between 5% and 85% With multiple certifications, including UL, this device exemplifies quality and safety Weighing in at 823 g, it’s a robust addition for your electrical needs.

Features and Benefits:

•Test button available.

•Lockable test button version.

•Mechanical switch position indicator.

•Transparent color housing.

Specifications:
