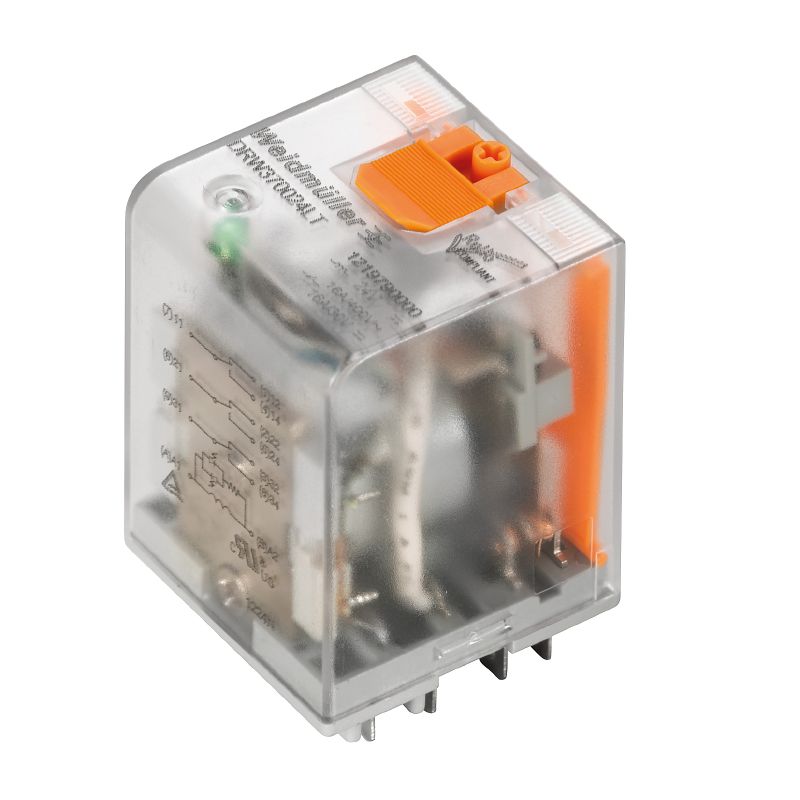

1219910000 - 48V AC D-Series Relay, 16A with NO Contact and Test Button (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

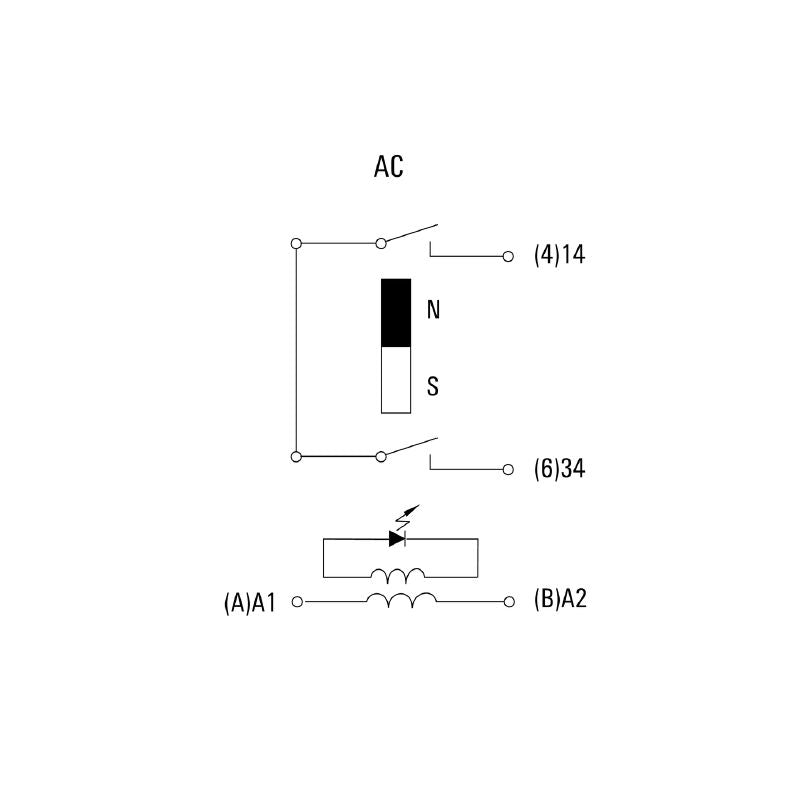

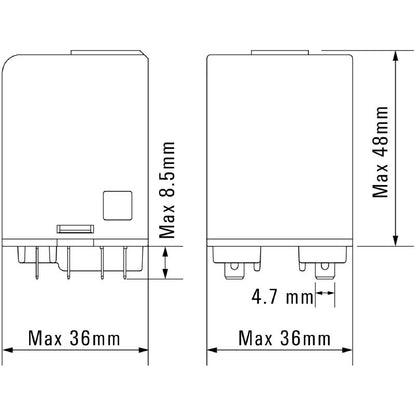

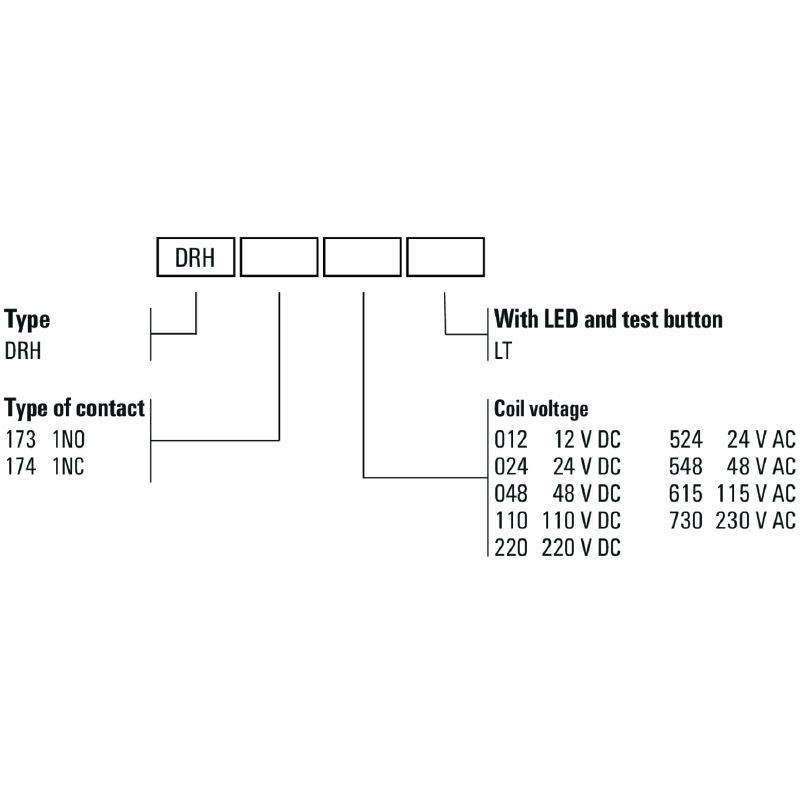

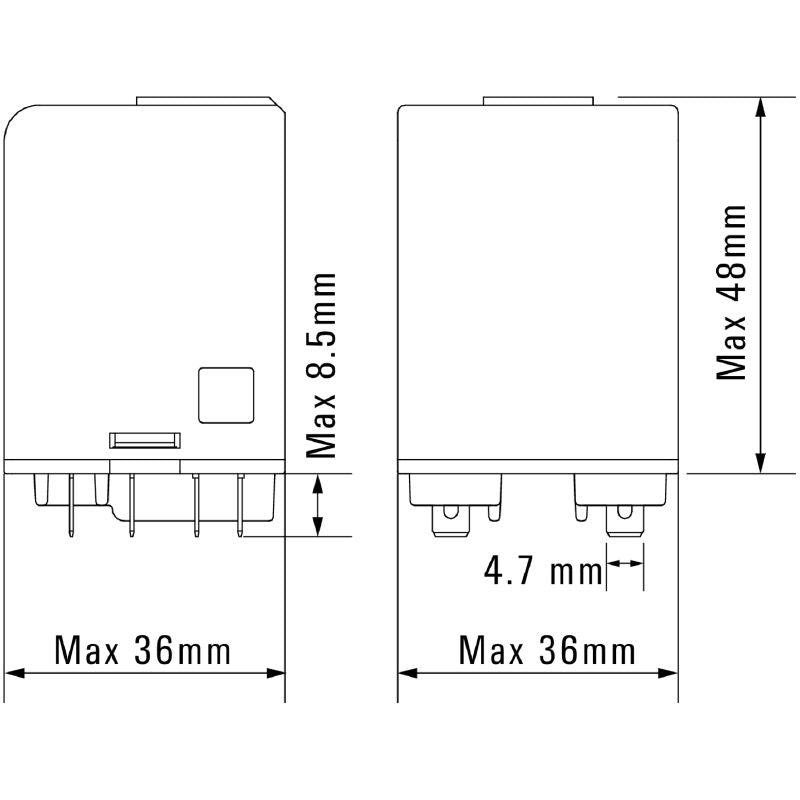

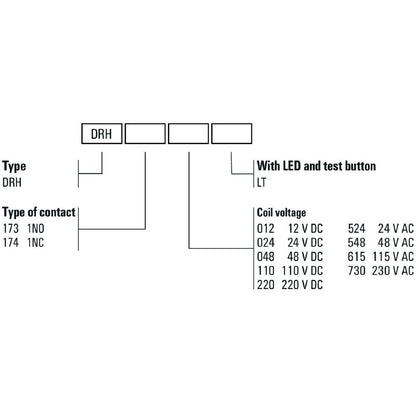

Introducing the D-Series Relay DRH173548LT, expertly crafted for reliable performance with a control voltage of 48 V AC and a continuous current of 16 A This relay is equipped with a normally open (NO) contact featuring a blow-out magnet composed of AgSnO, ensuring efficient operation It also includes a convenient test button and is designed with flat blade connections that measure 48 mm x 05 mm Complying with RoHS regulations without any exemptions, this model has a UL file number E312083 for assurance of quality.

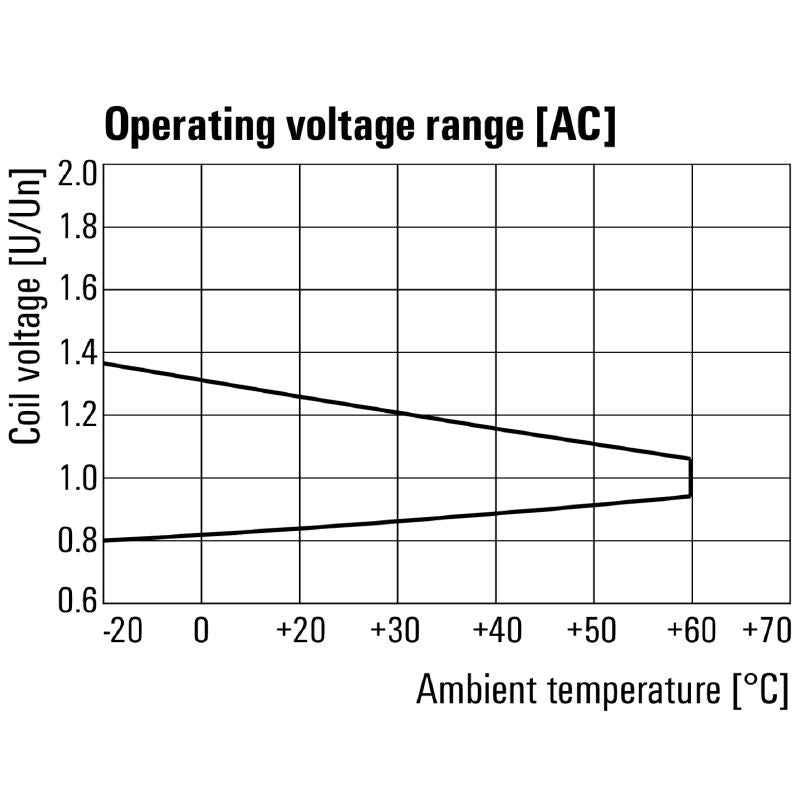

It operates effectively in ambient and storage temperatures ranging from -40 °C to 60 °C and can withstand humidity levels from 5% to 85% without condensation Perfect for various applications, the D-Series Relay combines durability and high performance.

Features and Benefits:

•Includes a lockable test button.

•Features a mechanical switch position indicator.

•Compliant with RoHS and not subject to exemptions.

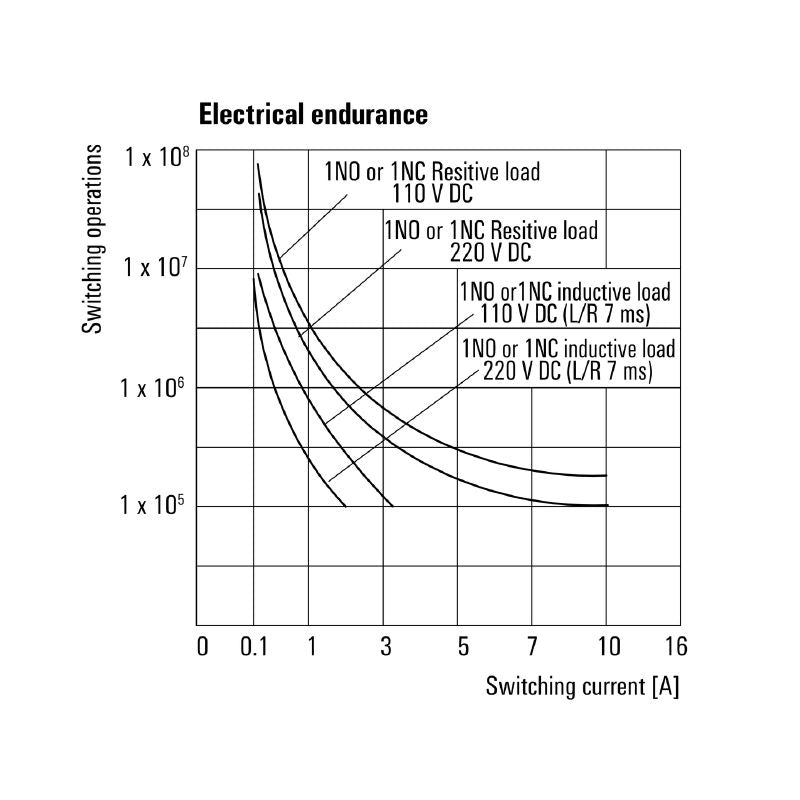

•Mechanical service life of 10^6 switching cycles.

Specifications:
