1219570000 - 110V DC Relay Module, 25A Rating, AgSnO Contacts (Pack of 10)

SKU: SKU: 1219570000 Download PDF

Variant:

1219570000 - 110V DC Relay Module, 25A Rating, AgSnO Contacts (Pack of 10)

Now $225.05

~~BEFORE $0.00~~ Now $225.05

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

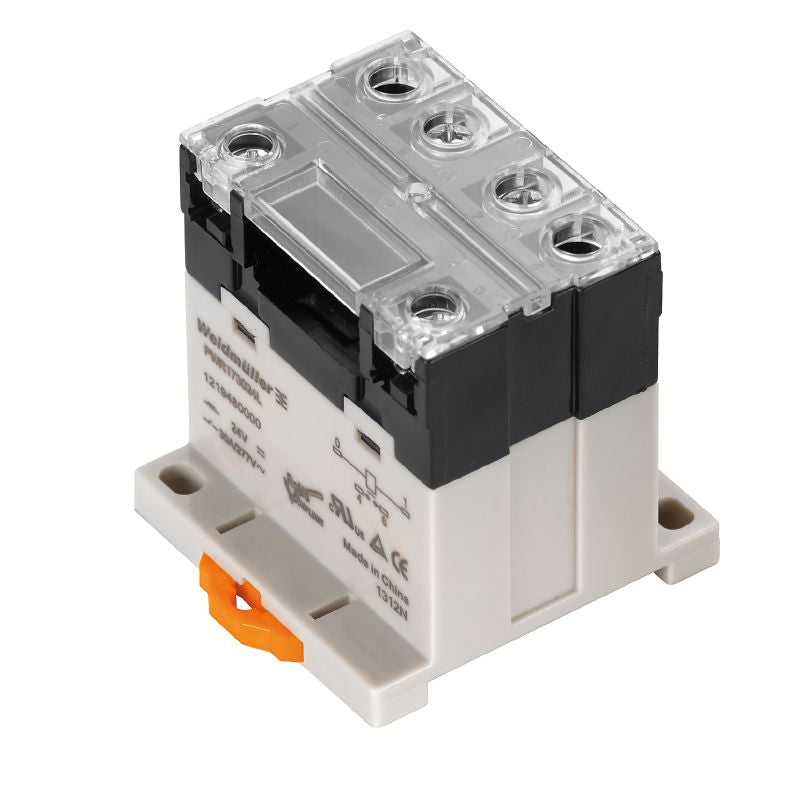

Introducing the D-SERIES PWR relay module, engineered with two normally open AgSnO contacts that can operate at a control voltage of 110 V DC This module is capable of handling a continuous current of 25 A, featuring a secure screw connection for reliable performance Please note, it does not come with a test button, making it a straightforward choice for your electrical needs.

Features and Benefits:

•Compliant with RoHS standards.

•No test button available.

•Suitable for mounting on a TS 35 rail.

•Color is beige.

Specifications:

Certificate No. (cURus)	E312083
Rated control voltage	110 V DC
Continuous current	25 A
Rated switching voltage	277 V AC
Max. switching frequency at rated load	0.1 Hz
Min. switching power	100 mA @ 12 V
Inrush current	120 A / 50 ms
AC switching capacity (resistive), max.	6900 VA

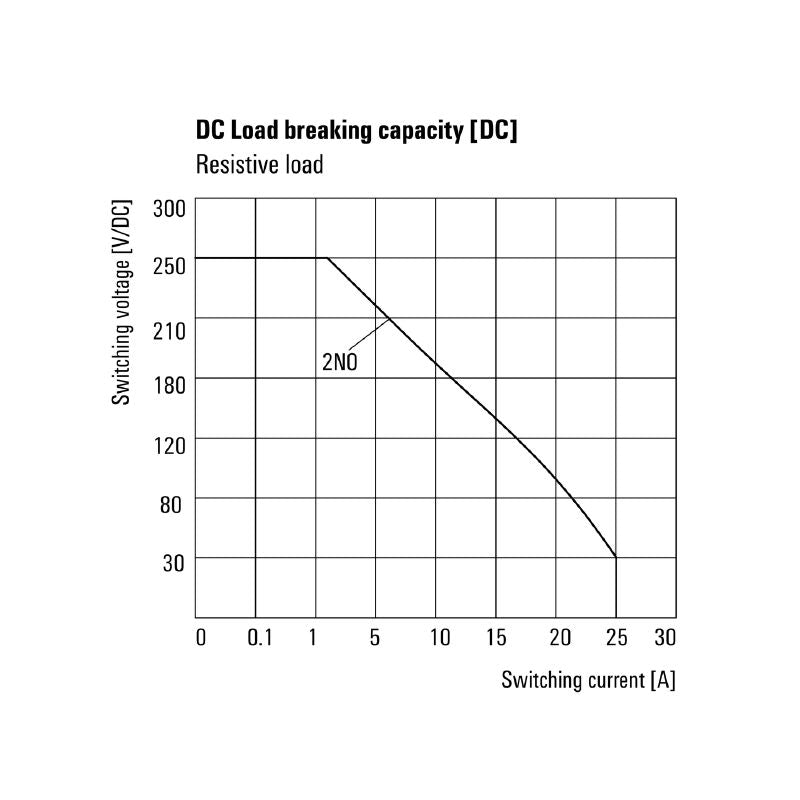

DC switching capacity (resistive), max.	600 W @ 24 V
Switch-on delay	<30 ms
Switch-off delay	<30 ms

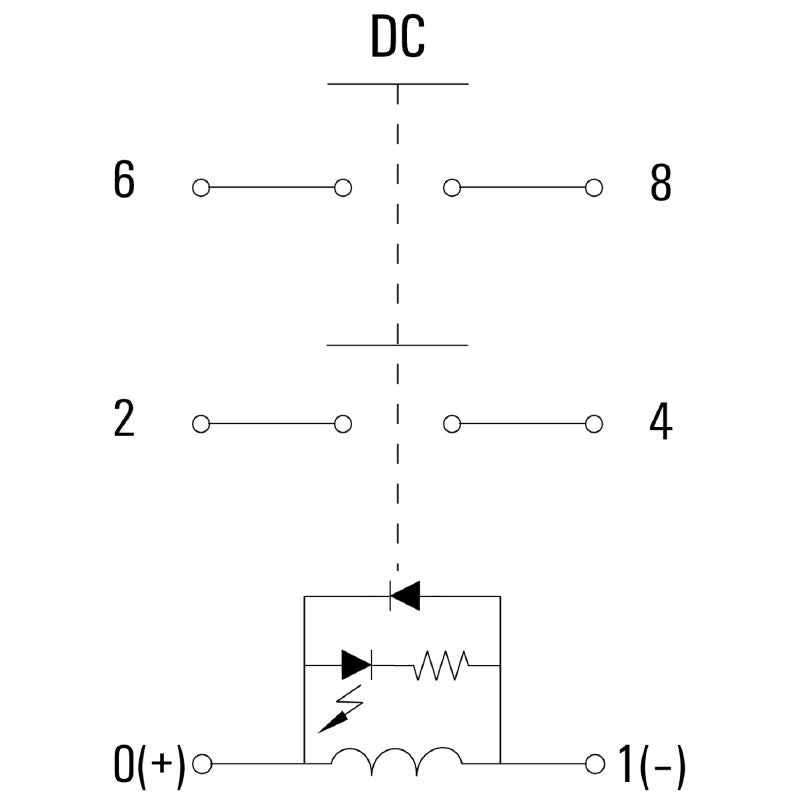

Contact type	2 NO contact (AgSnO)
Wire connection method (control side)	Screw connection
Min. rated connection clamping range (control side)	0.5 mm²
Max. rated connection clamping range (control side)	2.5 mm²
Wire connection method (load side)	Screw connection
Min. rated connection clamping range (load side)	0.5 mm²
Max. rated connection clamping range (load side)	4 mm²
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Clearance and creepage distances for control side - load side': '≥ 5.5 mm', 'Dielectric strength for control side - load side': '4 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '2 kV eff / 1 min', 'Dielectric strength of open contact': '2 kV eff / 1 min', 'Impulse withstand voltage': '6 kV (1.2/50 µs)', 'Protection degree': 'IP10'}
Temperatures	{'Storage temperature': '-25 °C...55 °C', 'Ambient temperature': '-25 °C...55 °C', 'Humidity': '35...85 % relative humidity, no condensation'}
