1219560000 - 48V DC Relay Module, 25A, 2 Contacts, Screw Connection (Pack of 10)

SKU: SKU: 1219560000 Download PDF

Variant:

1219560000 - 48V DC Relay Module, 25A, 2 Contacts, Screw Connection (Pack of 10)

Now $225.41

~~BEFORE $0.00~~ Now $225.41

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

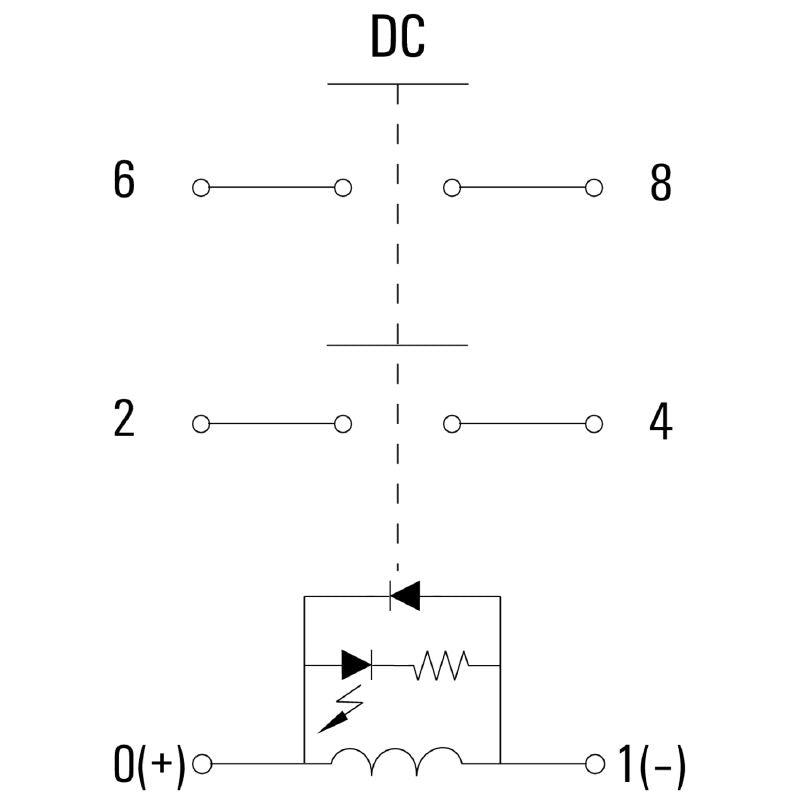

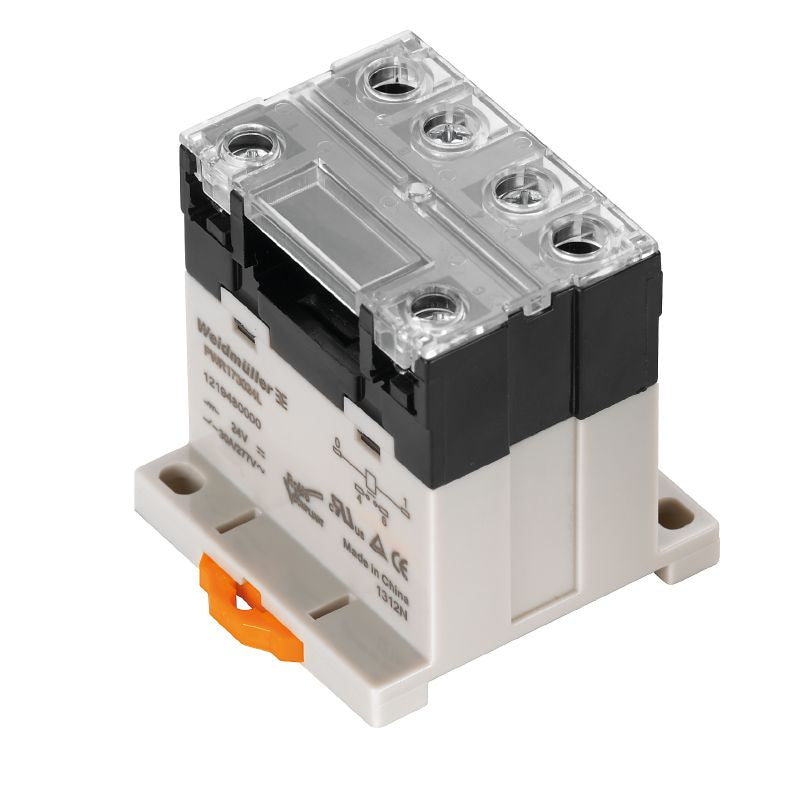

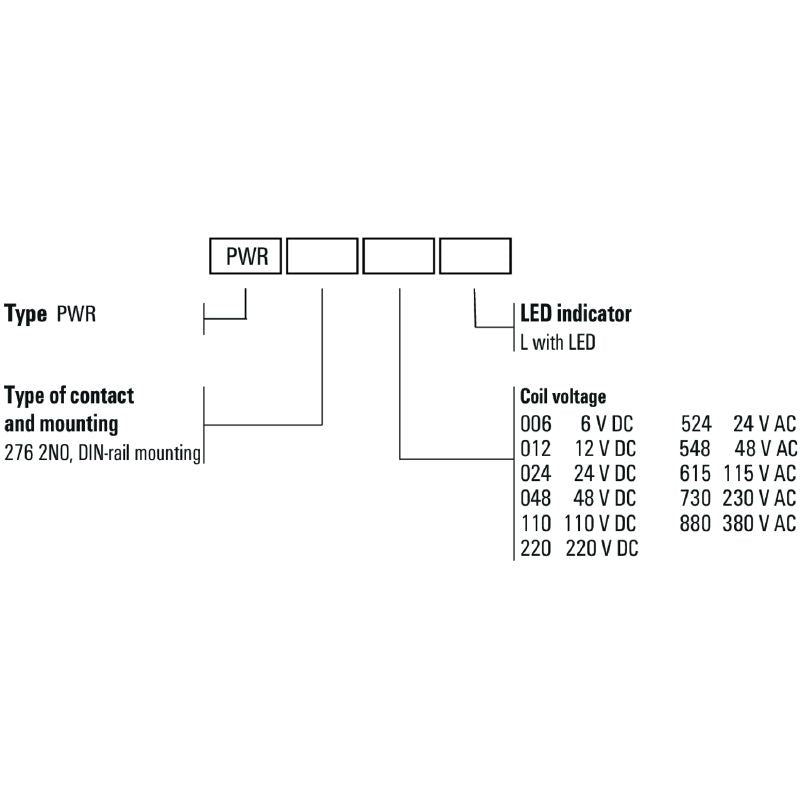

Experience reliability with the D-SERIES PWR relay module, featuring two normally open contacts crafted from AgSnO for enhanced performance This module operates at a control voltage of 48 V DC, supporting a continuous current of up to 25 A, and is equipped with a sturdy screw connection for easy installation Please note that a test button is not included with this model.

Features and Benefits:

•RoHS compliant without exemption.

•Green LED status indicator.

•Screw connection for both control and load sides.

•Rated switching voltage of 277 V AC.

•Max. switching frequency at rated load: 0.1 Hz.

•Low switch-on and switch-off delays of <30 ms.

Specifications:

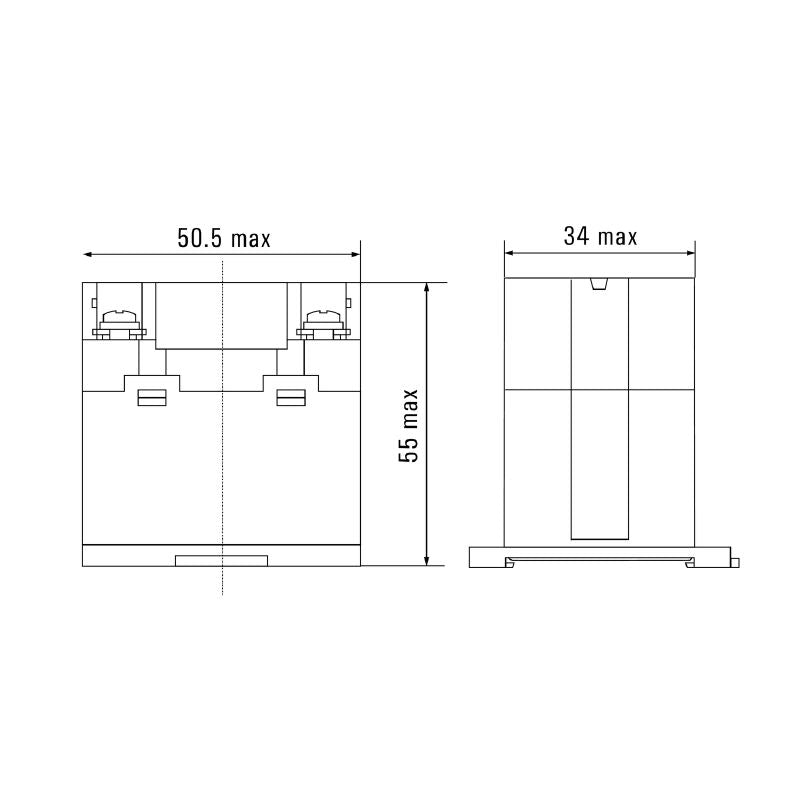

Depth	55 mm
Height	34 mm
Width	50.5 mm
Rated current DC	39.3 mA
Power rating	1.9 W
Coil resistance	1220 Ω ± 10 %
Continuous current	25 A
Max. switching frequency	0.1 Hz
Min. switching power	100 mA @ 12 V
Inrush current	120 A / 50 ms

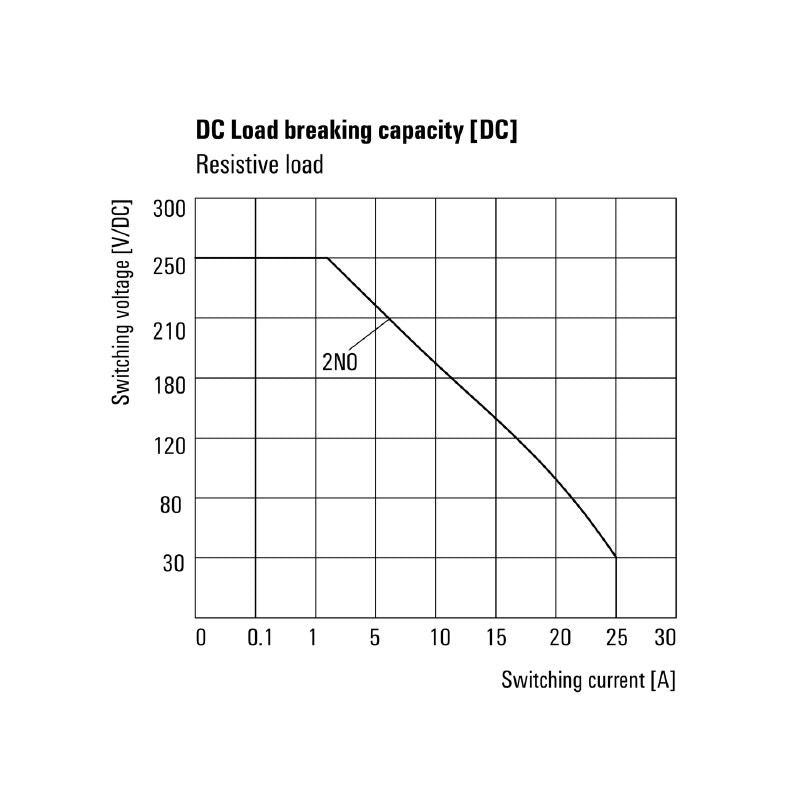

DC switching capacity	600 W @ 24 V
AC switching capacity	6900 VA
Humidity	35...85 % rel. humidity, no condensation
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Protection degree': 'IP10'}
Connection data (control side)	{'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '2.5 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm'}
Connection data (load side)	{'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '4 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm'}
