Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

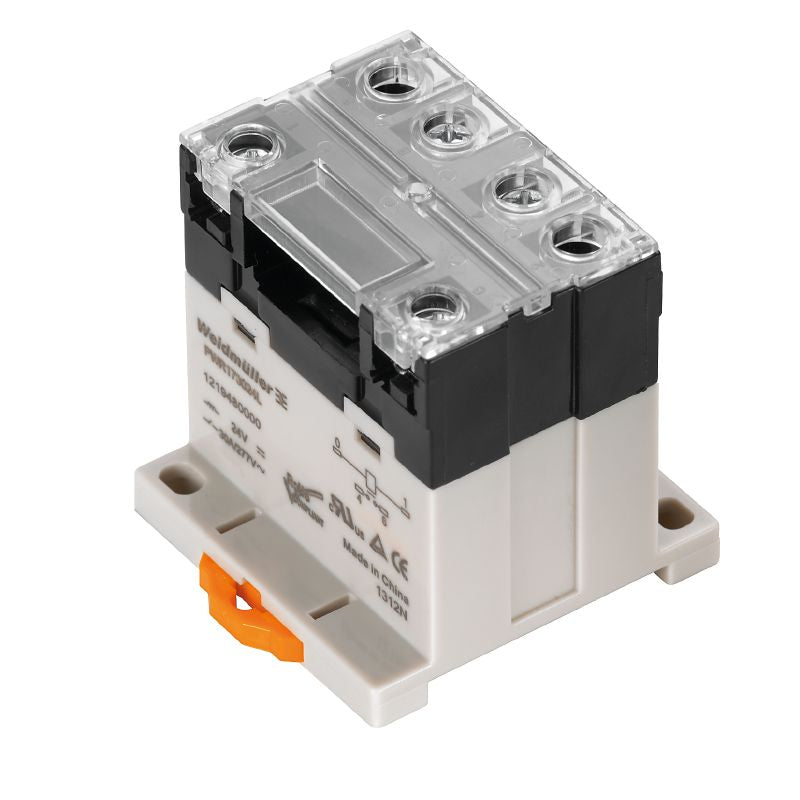

Introducing the PWR276880L relay module, equipped with two normally open contacts crafted from durable AgSnO material This module is capable of managing up to 380 V AC and supports a continuous current rating of 25 A, making it ideal for various control applications Featuring a reliable screw connection design, this module is a solid choice for your electrical needs Please note that it does not include a test button.

Features and Benefits:

•No test button available.

•Screw connection.

•Green LED status indicator.

•Compliant with RoHS regulations.

•No SVHC presence above 0.1 wt%.

Specifications:

Order No.	1219220000
GTIN (EAN)	4050118032918

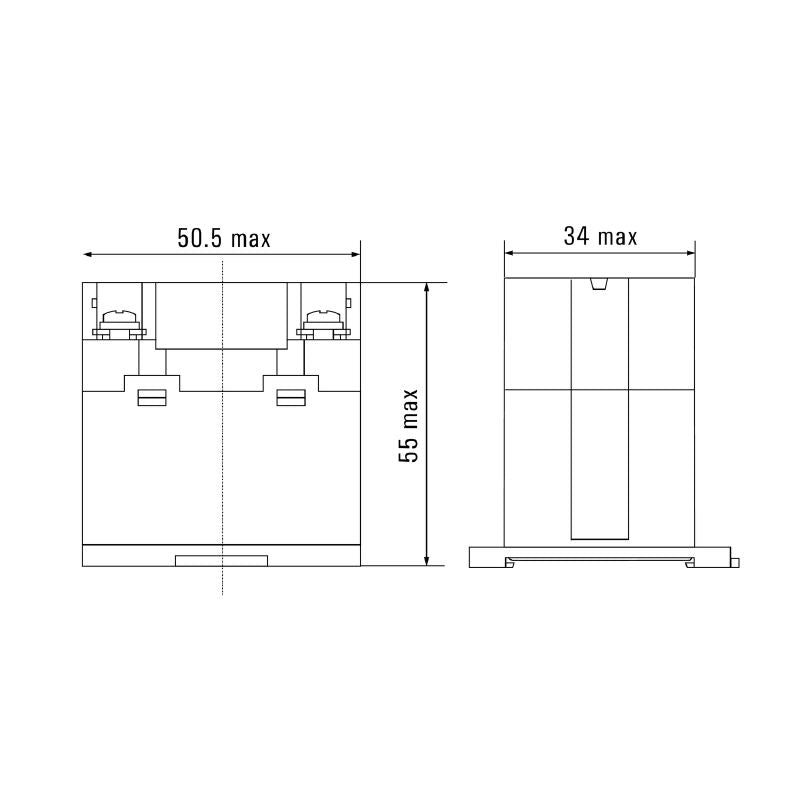

Depth	55 mm
Height	34 mm
Width	50.5 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-25 °C…55 °C
Humidity	35...85 % rel. humidity, no condensation
Rated control voltage	380 V AC
Rated current AC	6.1 mA
Power rating	2.5 VA
Coil resistance	62650 Ω ± 10 %
Rated switching voltage	277 V AC
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	100 mA @ 12 V
Inrush current	120 A / 50 ms
AC switching capacity (resistive), max.	6900 VA

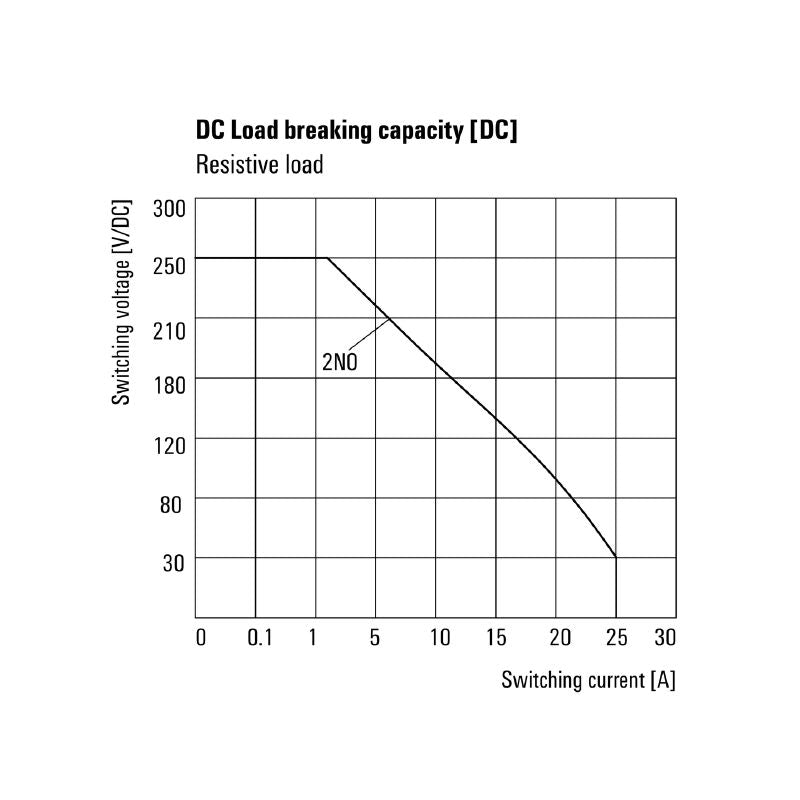

DC switching capacity (resistive), max.	600 W @ 24 V
Switch-on delay	<30 ms
Switch-off delay	<30 ms

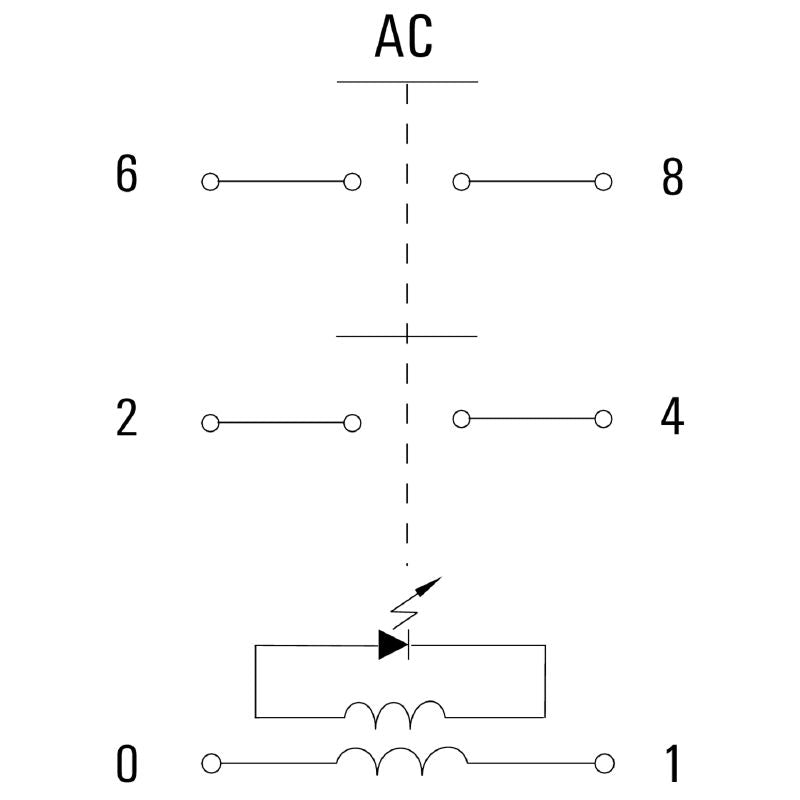

Contact type	2 NO contact (AgSnO)
Mounting rail	TS 35
UL94 flammability rating	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay status indicator': 'HB', 'Relay test button': 'HB'}
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 5.5 mm', 'Dielectric strength for control side - load side': '4 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '2 kV eff / 1 min', 'Dielectric strength of open contact': '2 kV eff / 1 min', 'Impulse withstand voltage': '6 kV (1.2/50 µs)', 'Protection degree': 'IP10'}
Connection data (control side)	{'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '2.5 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm', 'Blade size': 'Gr. PH2'}
Connection data (load side)	{'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '4 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm', 'Blade size': 'Gr. PH2'}
Wire connection method	Screw connection
Classifications	{'ETIM 6.0': 'EC001437', 'ETIM 7.0': 'EC001437', 'ETIM 8.0': 'EC001437', 'ETIM 9.0': 'EC001437', 'ETIM 10.0': 'EC001437', 'ECLASS 9.0': '27-37-16-01', 'ECLASS 9.1': '27-37-16-01', 'ECLASS 10.0': '27-37-16-01', 'ECLASS 11.0': '27-37-16-01', 'ECLASS 12.0': '27-37-16-01', 'ECLASS 13.0': '27-37-16-01', 'ECLASS 14.0': '27-37-16-01', 'ECLASS 15.0': '27-37-16-01'}
