1219190000 - PWR Relay Module, 2 NO Contacts, 230V AC, 25A Continuous Current (Pack of 10)

1219190000 - PWR Relay Module, 2 NO Contacts, 230V AC, 25A Continuous Current (Pack of 10)

SKU: 1219190000 Download PDF

Variant:
  • 1219190000 - PWR Relay Module, 2 NO Contacts, 230V AC, 25A Continuous Current (Pack of 10)
Now $243.27
BEFORE   $0.00 Now $243.27
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

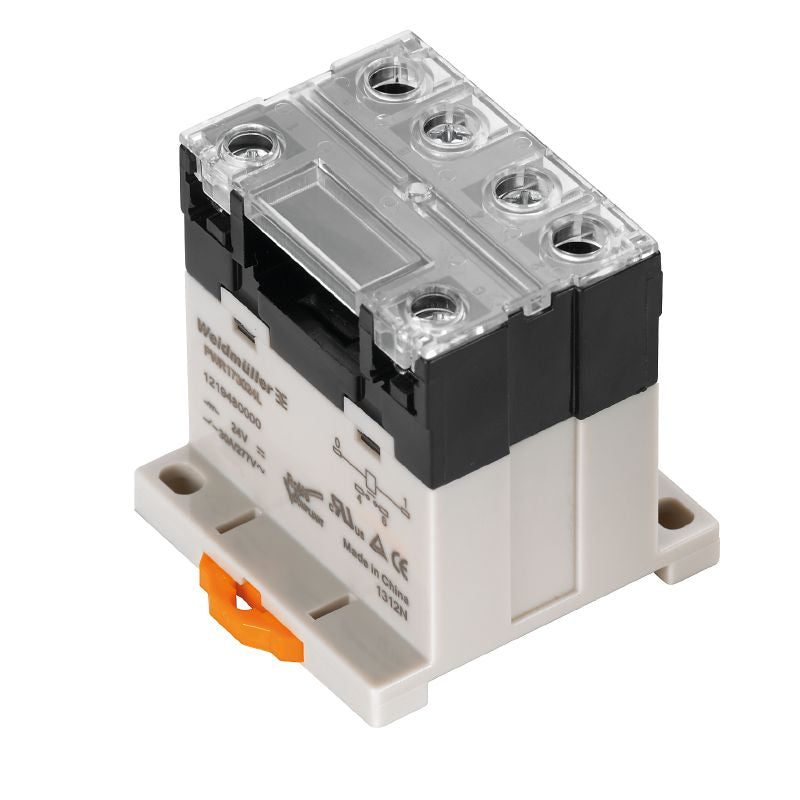

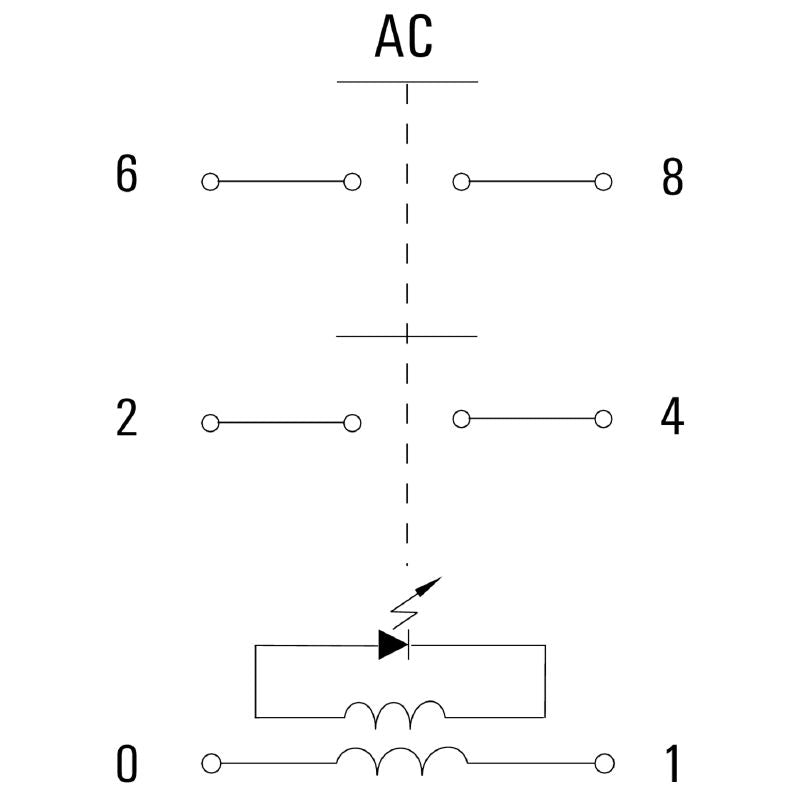

Enhance your control capabilities with the D-SERIES PWR relay module, featuring two normally open (NO) contacts crafted from AgSnO With a control voltage of 230 V AC and a robust continuous current handling of 25 A, this module is built for reliable performance It uses a secure screw connection for installation and does not include a test button, making it a streamlined choice for your electrical needs.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Rated control voltage of 230 V AC.

    •Continuous current capacity of 25 A.

    •Green LED status indicator.

    •Screw connection for ease of installation.

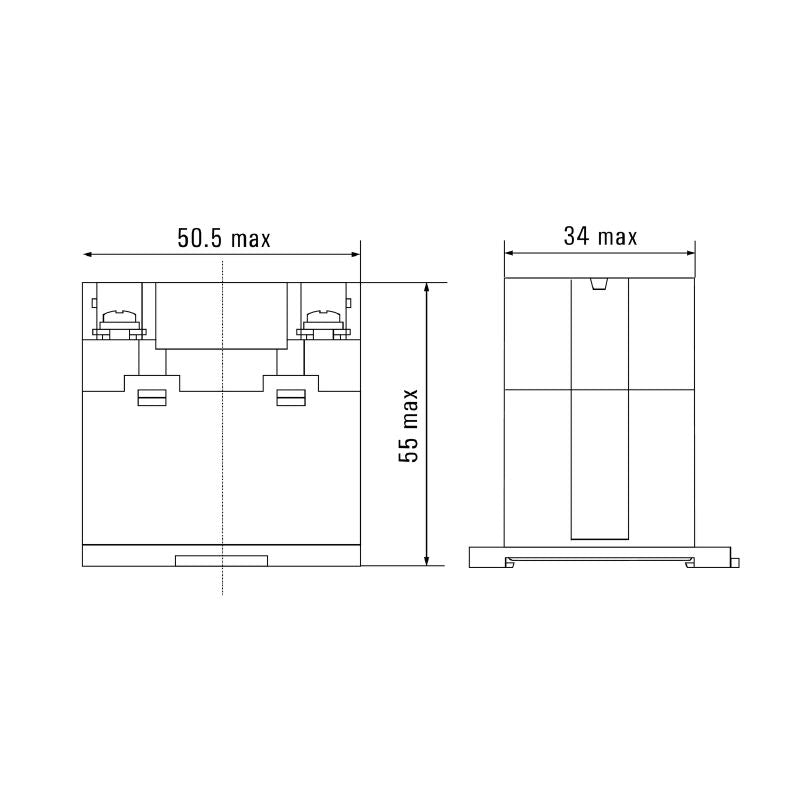

    •Compact design with dimensions suitable for mounting.

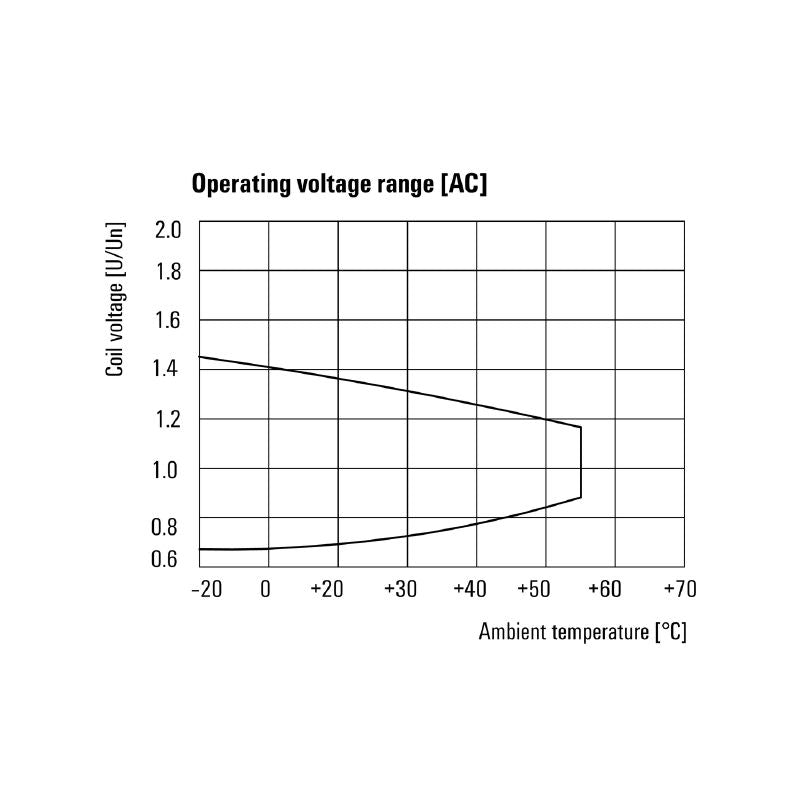

    •Suitable for ambient temperatures from -25 °C to 55 °C.

Specifications:

 Rated current AC 11 mA
 Power rating 2.5 VA
 Coil resistance 21000 Ω ± 10 %
 Rated switching voltage 277 V AC
 Max. switching frequency at rated load 0.1 Hz
 Min. switching power 100 mA @ 12 V
 Inrush current 120 A / 50 ms
 AC switching capacity (resistive), max. 6900 VA

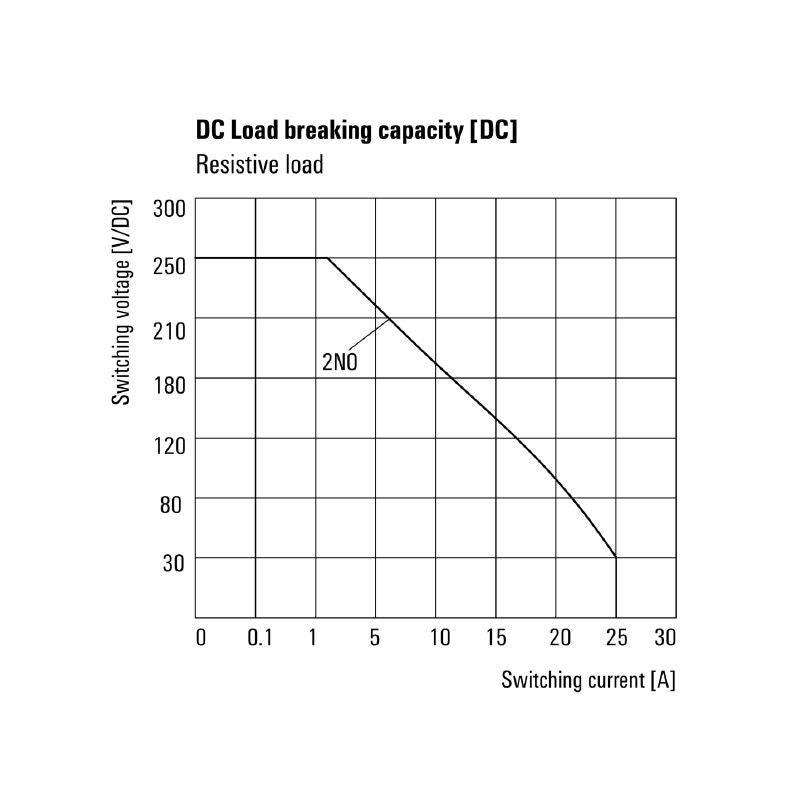

 DC switching capacity (resistive), max. 600 W @ 24 V
 Switch-on delay <30 ms
 Switch-off delay <30 ms
 Mounting rail TS 35
 Insulation coordination {'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances': '≥ 5.5 mm', 'Dielectric strength for control side - load side': '4 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '2 kV eff / 1 min', 'Dielectric strength of open contact': '2 kV eff / 1 min', 'Impulse withstand voltage': '6 kV (1.2/50 µs)', 'Protection degree': 'IP10'}
 Connection data (control side) {'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '2.5 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm', 'Blade size': 'Gr. PH2'}
 Connection data (load side) {'Wire connection method': 'Screw connection', 'Min. rated connection clamping range': '0.5 mm²', 'Max. rated connection clamping range': '4 mm²', 'Min. tightening torque': '0.5 Nm', 'Max. tightening torque': '1.2 Nm', 'Blade size': 'Gr. PH2'}
