1132260000 - Solid-State Relay 1A, 24V-240V AC, 2.5-6V DC (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This solid-state relay is designed to operate efficiently within a control voltage range of 25 V DC to 6 V DC, enabling it to switch voltages from 24 V AC to 240 V AC With a continuous current rating of 1 A, it ensures reliable performance and ease of use thanks to its convenient plug-in connection Ideal for various electrical applications, this relay combines versatility with functionality.

Features and Benefits:

•RoHS Compliant.

•Storage temperature range from -40 °C to 70 °C.

•Operating temperature range from -20 °C to 60 °C.

•Non-condensing humidity of 40 °C / 93% relative humidity.

•Rated control current of 15 mA DC (±10%).

•Power rating of 80 mW.

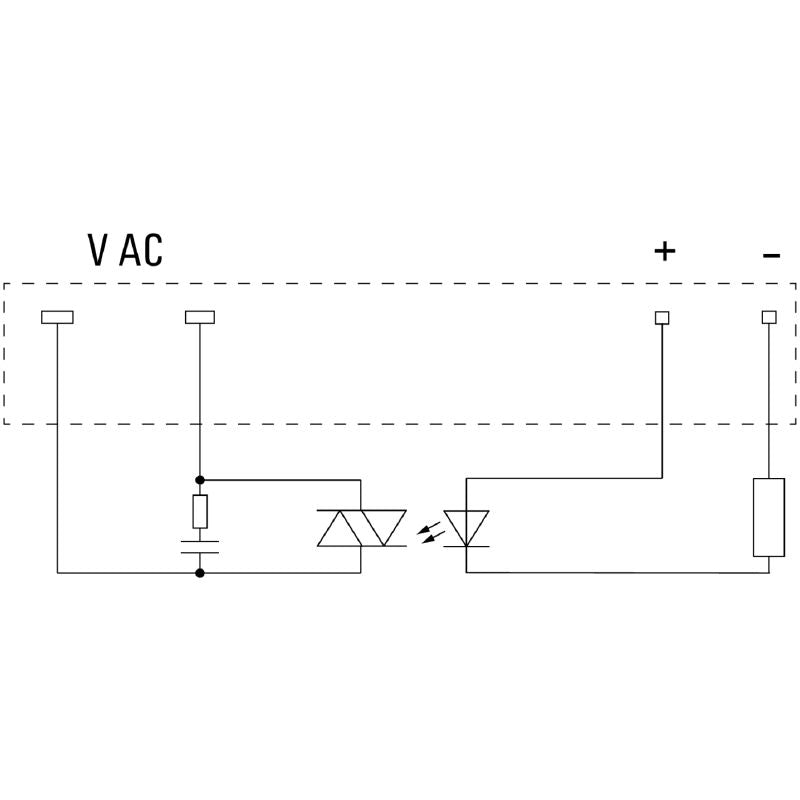

•1 NO contact (Triac zero-cross switch).

•Plug-in connection for wire connections.

Specifications:
