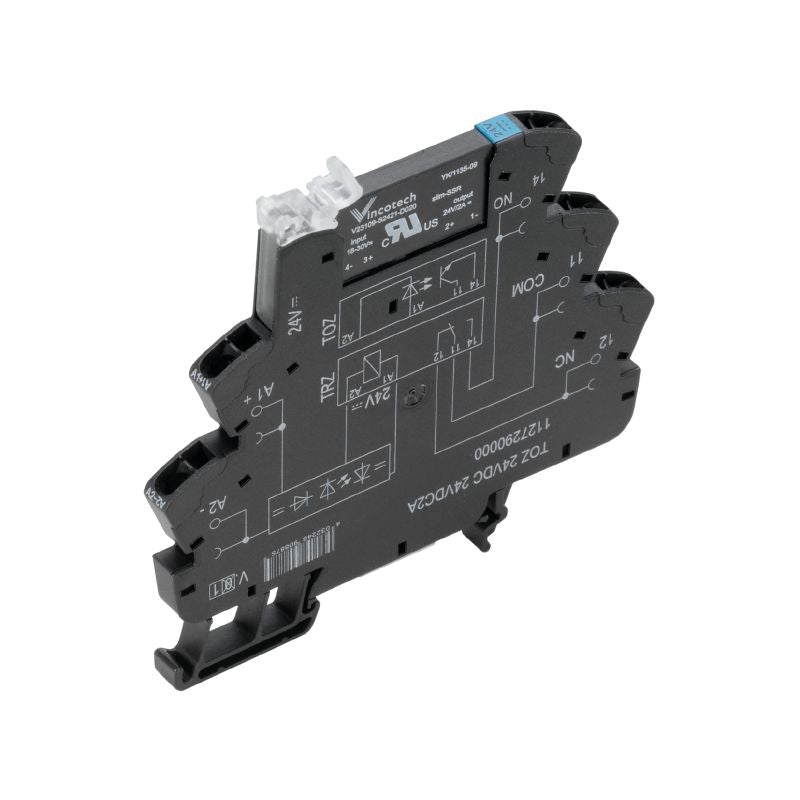

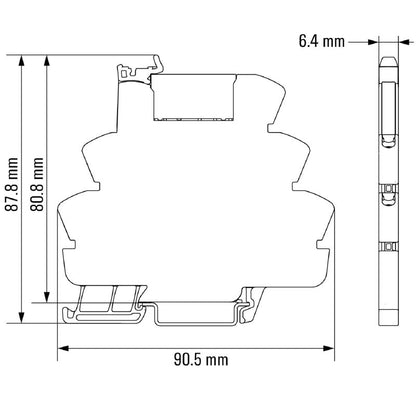

1127530000 - Solid-State Relay 24VDC/240VAC, 1A, LED Indicator (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

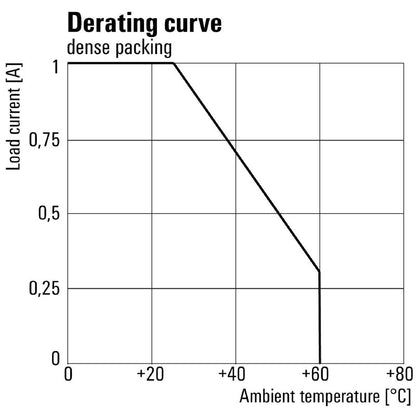

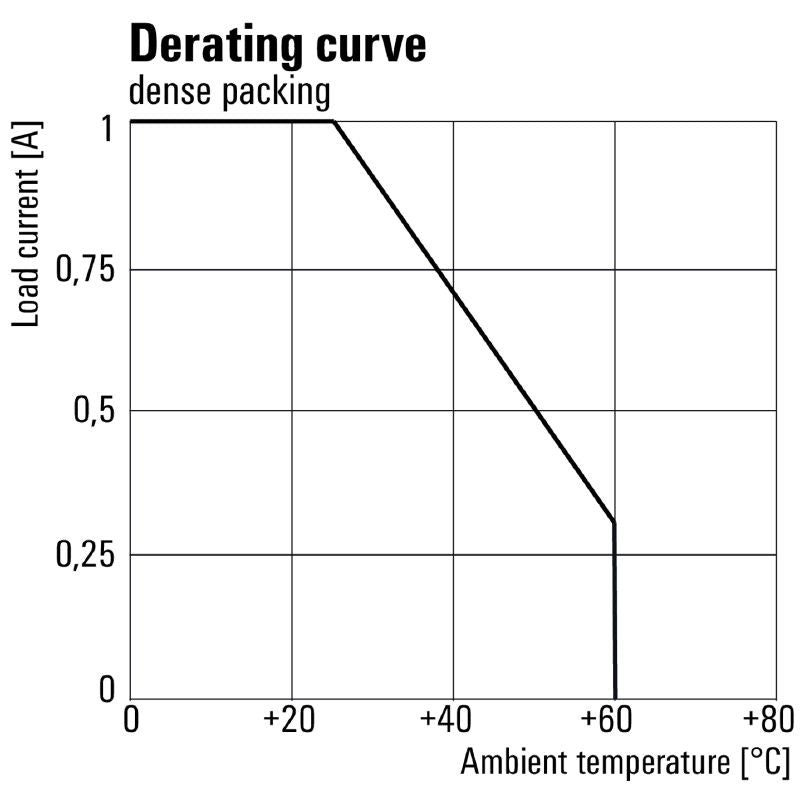

Experience reliability with the TOZ 24VDC 230VAC1A solid-state relay Engineered to accept a control voltage of 24 V DC (±20% tolerance), this relay can switch between 24 to 240 V AC while handling a continuous current of 1 A It features a convenient tension-clamp connection and meets RoHS compliance standards With a maximum operating temperature of 60 °C and a storage range from -40 °C to 70 °C, this relay is built to perform in various environments.

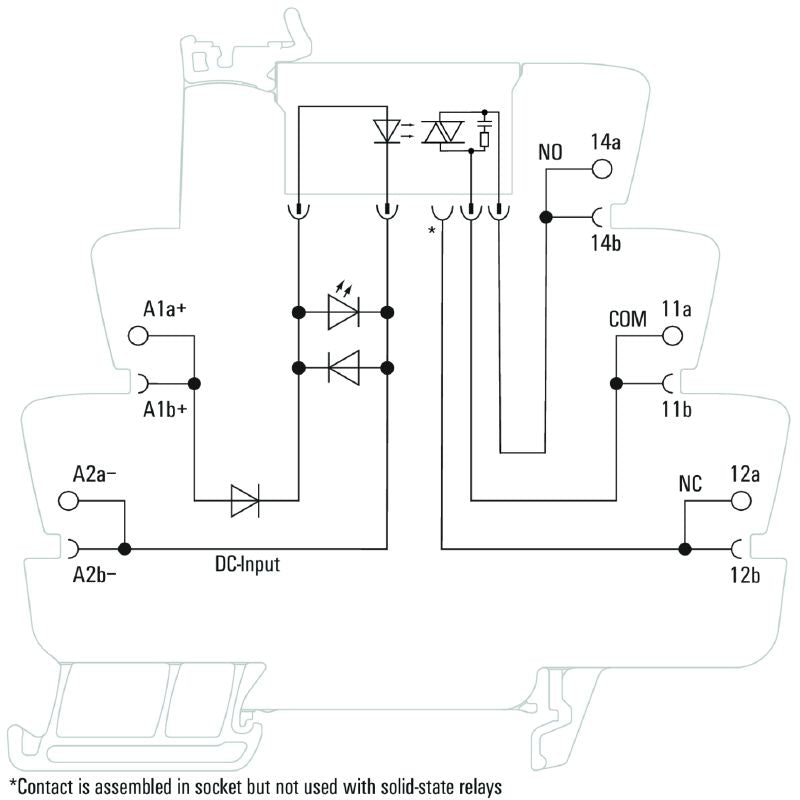

A green LED indicator light allows for easy status monitoring, and the inclusion of a free-wheeling diode enhances its protective circuitry Designed for pollution severity level 2, this relay is not short-circuit-proof but includes an RC element for added safety on the load side.

Features and Benefits:

•RoHS compliant.

•Includes a green LED for status indication.

•Has a protective circuit with a free-wheeling diode.

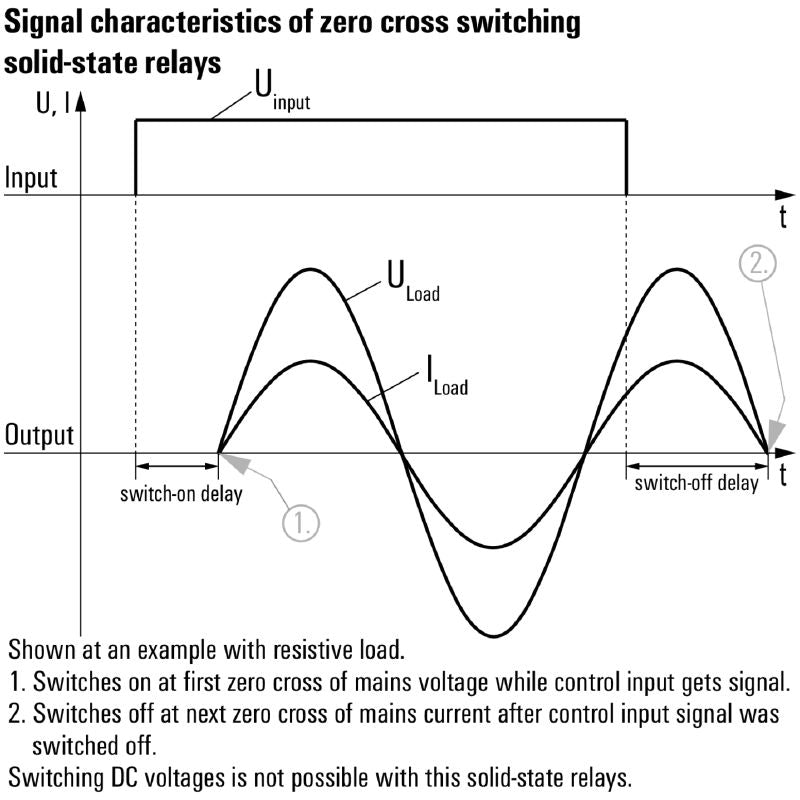

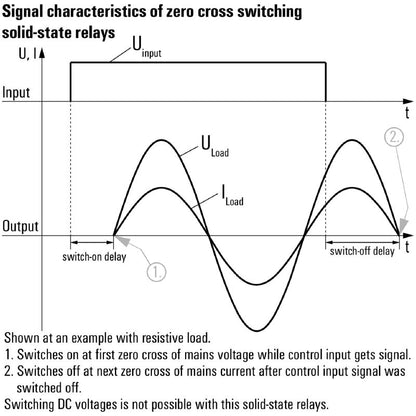

•Provisions for short switching delays of ≤ 12 ms.

•Tension-clamp connection for secure wire attachment.

Specifications:
