1124080000 - TRZ 5VDC Relay Socket for 10A Current with LED Indicator (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRZ 5VDC 2CO EMPTY relay socket, expertly engineered for accommodating two contacts at a control voltage of 5 V DC This reliable socket can handle a continuous current of up to 10 A, utilizing secure tension-clamp connections It meets ROHS standards and holds certification number E223759, ensuring its quality and safety Designed for versatility, this compact relay socket features dimensions of 87.

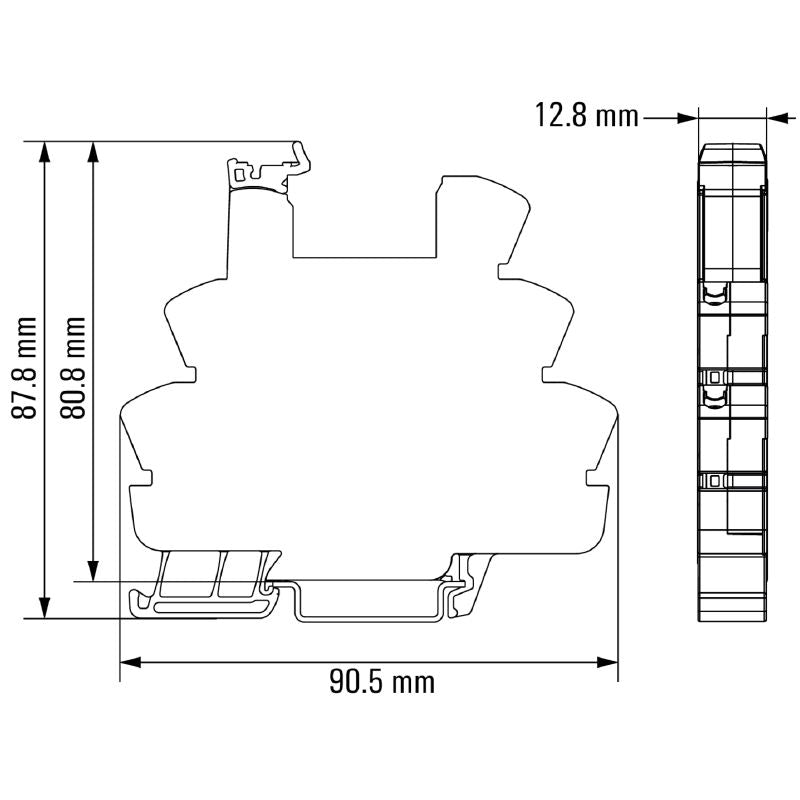

8 mm in depth, 905 mm in height, and 128 mm in width, with a lightweight of just 425 g It functions effectively in a temperature range from -40 °C to 60 °C, showcasing its robustness in varying environments The product ensures compliance with RoHS directives while adhering to specific lead exemptions Installation is straightforward, accommodating both rigid copper and flexible conductors with diverse wire gauge sizes.

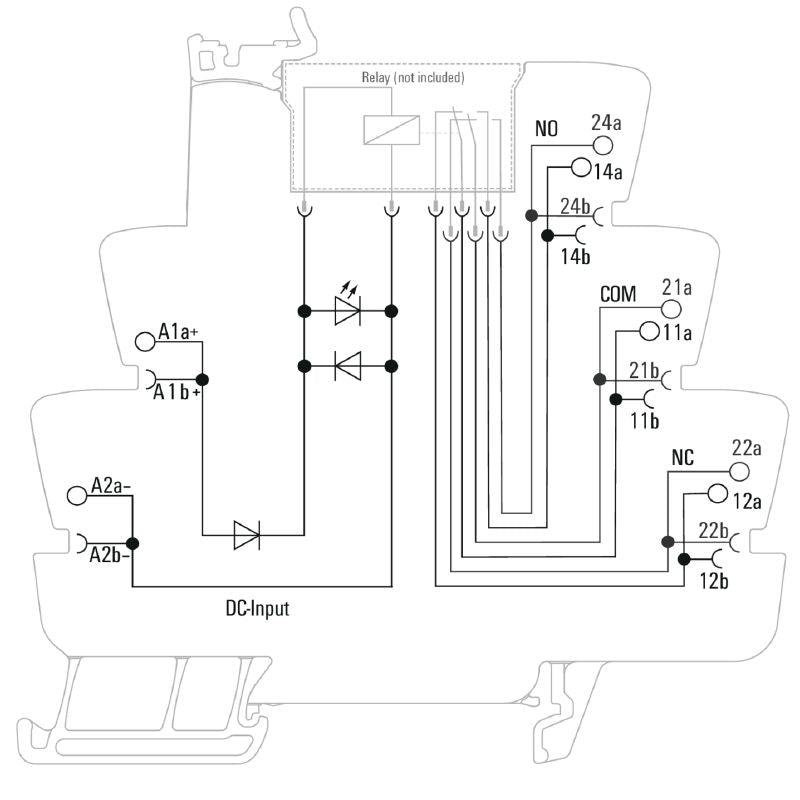

Notably, this relay socket is equipped with reverse polarity protection and an indicator LED for enhanced usability and safety.

Features and Benefits:

•Compliant with ROHS and REACH regulations.

•Equipped with a green LED status indicator.

•Employs tension-clamp connection for wiring.

Specifications:
