1124040000 - Compact 120V AC Relay Socket, 10A, 87.8mm Depth (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

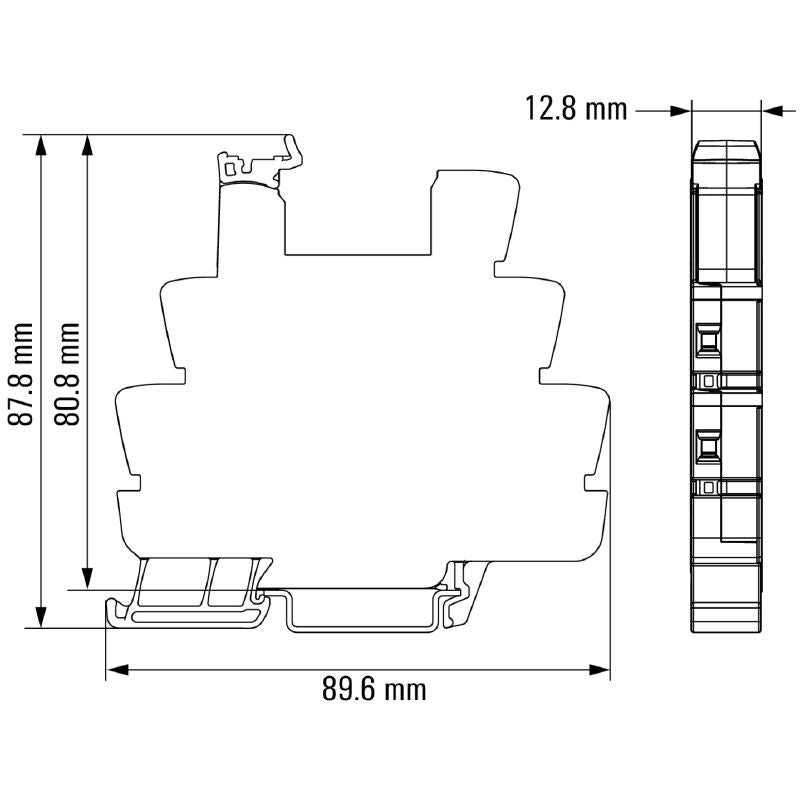

Introducing the TRS 120VAC RC 2CO EMPTY relay socket, a reliable component featuring dual CO contacts and engineered for a control voltage rating of 120 V AC ±10% Capable of managing a continuous current of 10 A, it employs screw connections for straightforward installation Adhering to RoHS standards, it showcases a certified component inspection under file number E223759 This compact relay socket measures 87.

8 mm in depth, 896 mm in height, and 128 mm in width, weighing just 42 grams It operates efficiently within a temperature range of -40 °C to 60 °C With support for multiple wire connection types and compatibility with various wire sizes, this socket is designed for versatility in your electronic applications.

Features and Benefits:

•Compliant with RoHS regulations.

•Suitable for operational temperatures between -40 °C and +60 °C.

•Compact design with minimal dimensions.

•LED status indicator.

Specifications:
