1123890000 - 60V UC Relay Module with 2 Changeover Contacts (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRZ 60VUC 2CO AU, a premium relay module equipped with dual changeover contacts featuring gold plating for enhanced conductivity With a control voltage rating of 60 V UC ±10 %, this module is capable of managing a continuous current of up to 8 A It is designed with a tension-clamp connection, making it easy to set up, although it does not include a test button Perfect for various electrical applications, the TRZ 60VUC 2CO AU combines performance and reliability in one compact unit.

Features and Benefits:

•Compatible with multiple connection cross-sections (min AWG 26, max AWG 14).

•Suitable for various ambient temperatures up to 60 °C.

•Includes green LED status indicator.

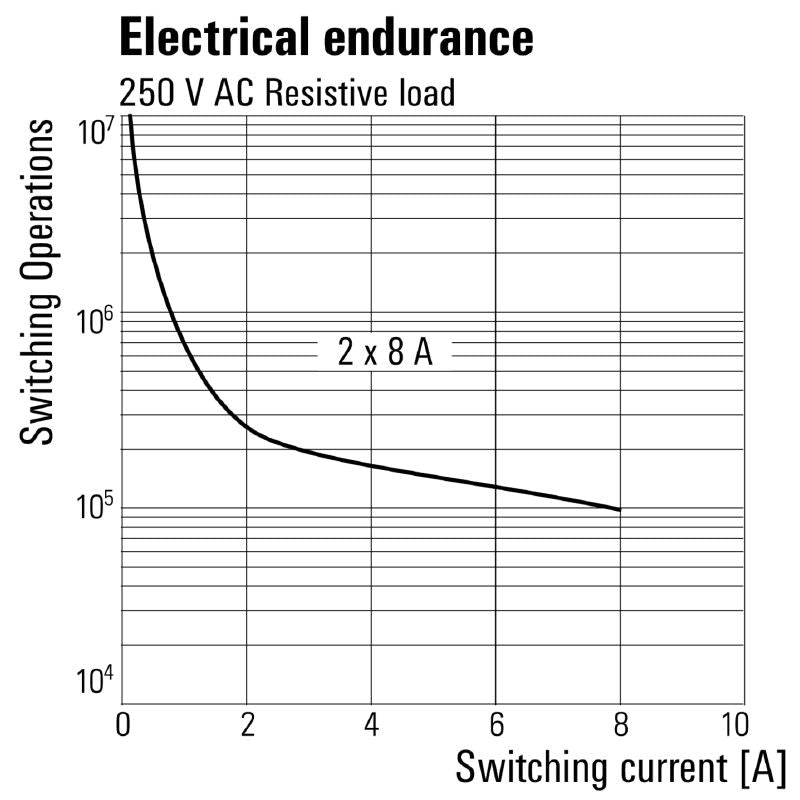

•Offers a mechanical service life of 30 x 10^6 switching cycles.

Specifications:
