1123590000 - 5V DC Relay Module, 2 AgNi Contacts, 8 A Capacity (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRZ 5VDC 2CO relay module, expertly designed for efficient control with its dual CO contacts made from high-quality AgNi material Operating on a 5 V DC control voltage with a tolerance of ±20%, this module can handle a continuous current of up to 8 A Featuring a tension-clamp connection, it offers a reliable and secure setup, though it does not include a test button With compliance to RoHS standards and UL certification (certificate number E141197), this relay module ensures safety and environmental responsibility.

Features and Benefits:

•Tension-clamp connection method.

•Green LED status indicator.

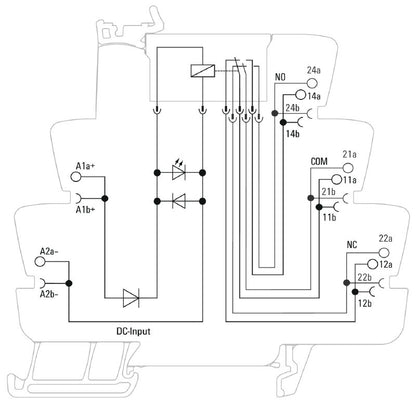

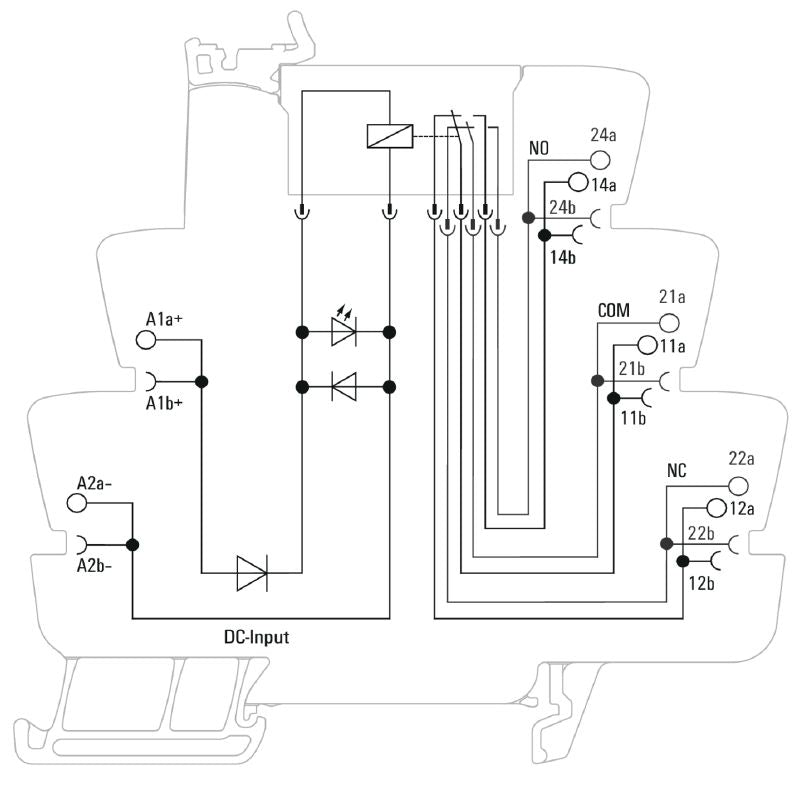

•Free-wheeling diode for protective circuit.

•Reverse polarity protection.

•No test button included.

•Operating altitude up to 2000 m above sea level.

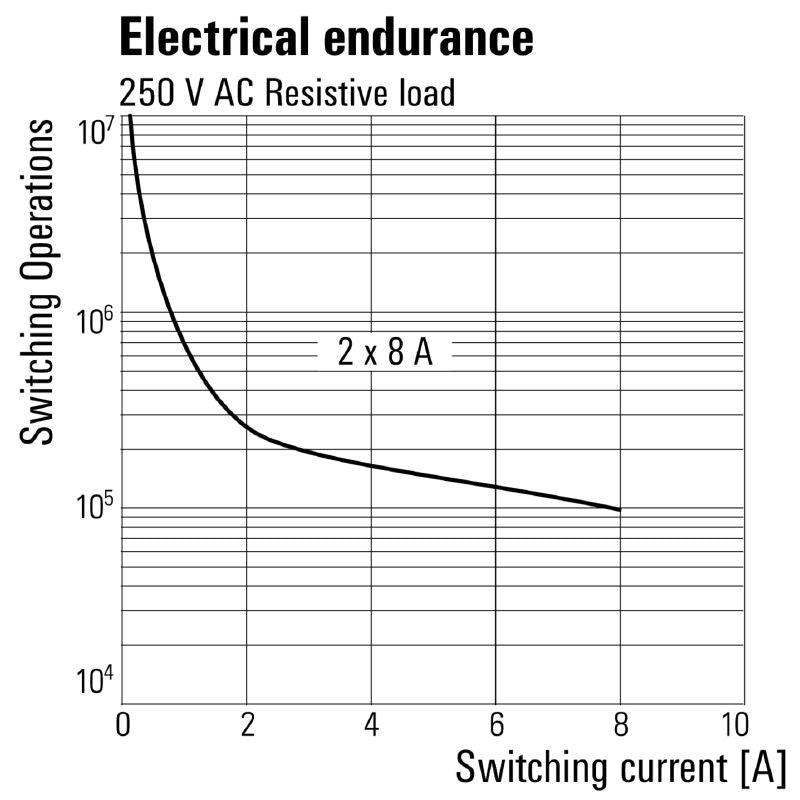

•Mechanical service life of 30 x 10^6 switching cycles.

•IP20 protection degree.

Specifications:
