1123510000 - 48V Relay Module with 2 CO Contacts, 8A Capacity (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

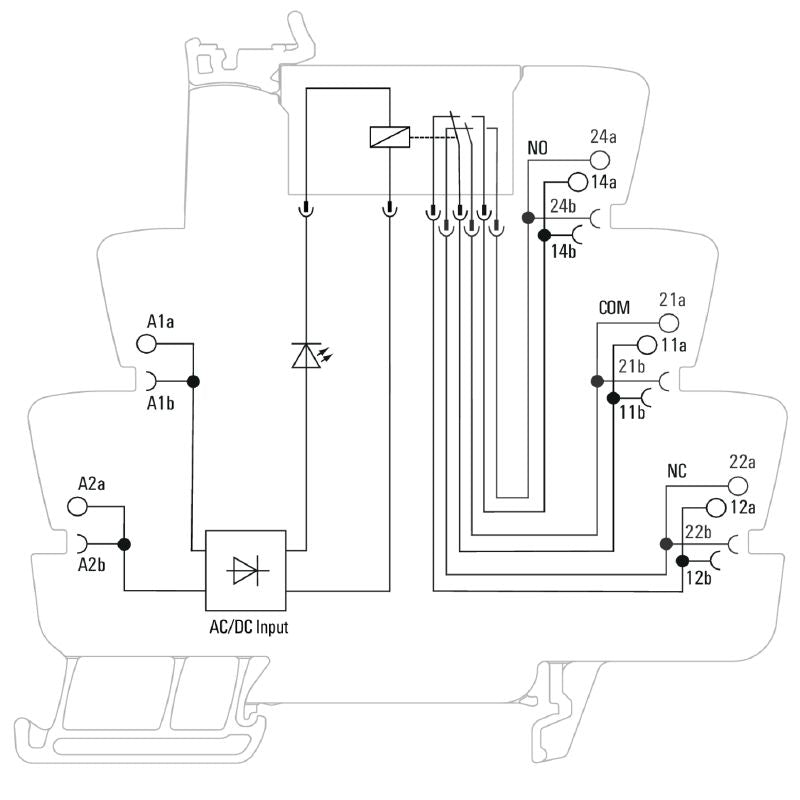

Introducing the TRS 48VUC 2CO relay module, featuring dual CO contacts constructed from AgNi This reliable module is designed to operate at a control voltage of 48 V UC, adhering to a tolerance of ±10% With a robust capability to handle continuous currents of up to 8 A, it ensures consistent performance The module is equipped with a screw connection for secure installation, although it does not include a test button.

Features and Benefits:

•UL approved under E141197.

•Compliant with RoHS and REACH SVHC regulations.

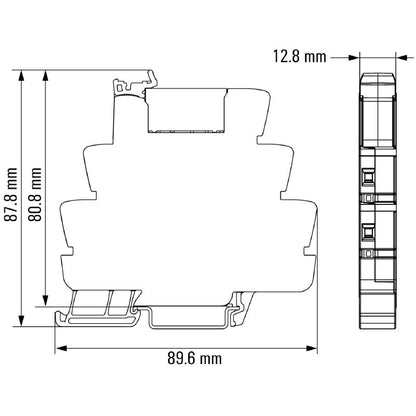

•Mounting rail compatible with TS 35.

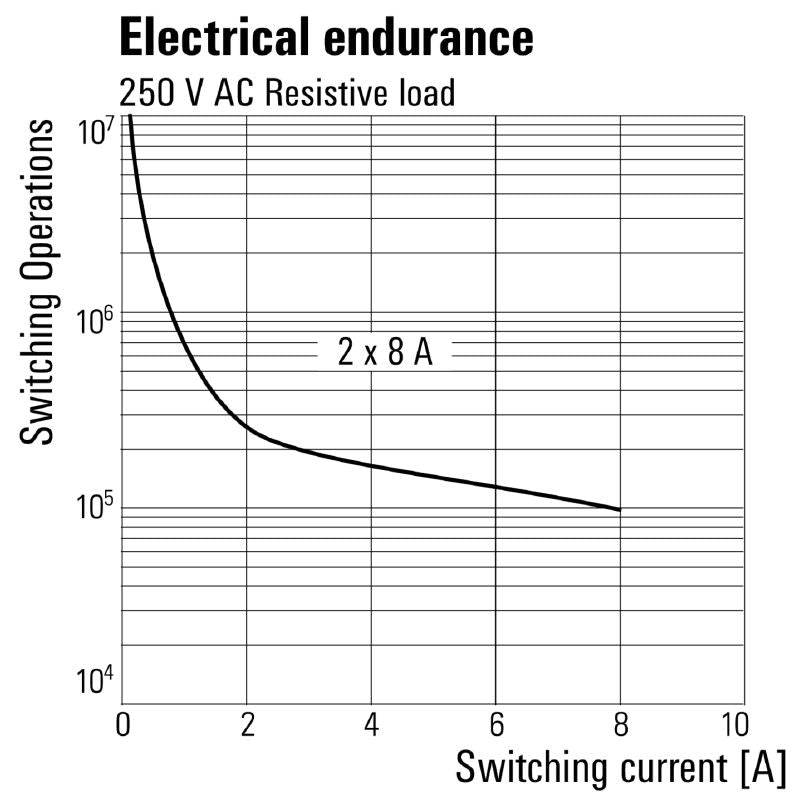

•Mechanical service life rated for 30 million switching cycles.

•Green LED status indicator.

•IP20 protection degree.

Specifications:
