1123020000 - 48V Relay Module with Gold Plated Contact and 6A Current (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRS 48VUC 1CO AU relay module, featuring a single changeover (CO) contact with premium AgNi gold plating for enhanced conductivity This reliable module supports a control voltage of 48 V UC ±10 % and is capable of handling a continuous current of up to 6 A Its robust design includes secure screw connections and is compliant with RoHS standards Please note, this module does not include a test button, and it proudly carries a UL file number of E141197, ensuring top-tier safety and performance for various applications.

Features and Benefits:

•RoHS compliant.

•Suitable for operational temperatures up to 60 °C.

•Screw connection method for wire connection.

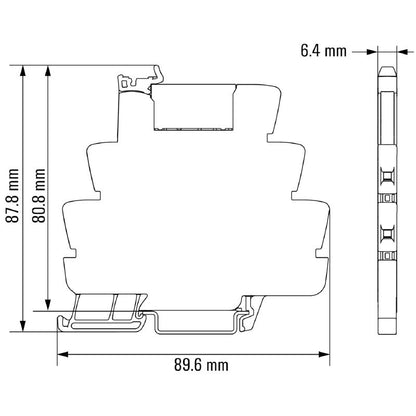

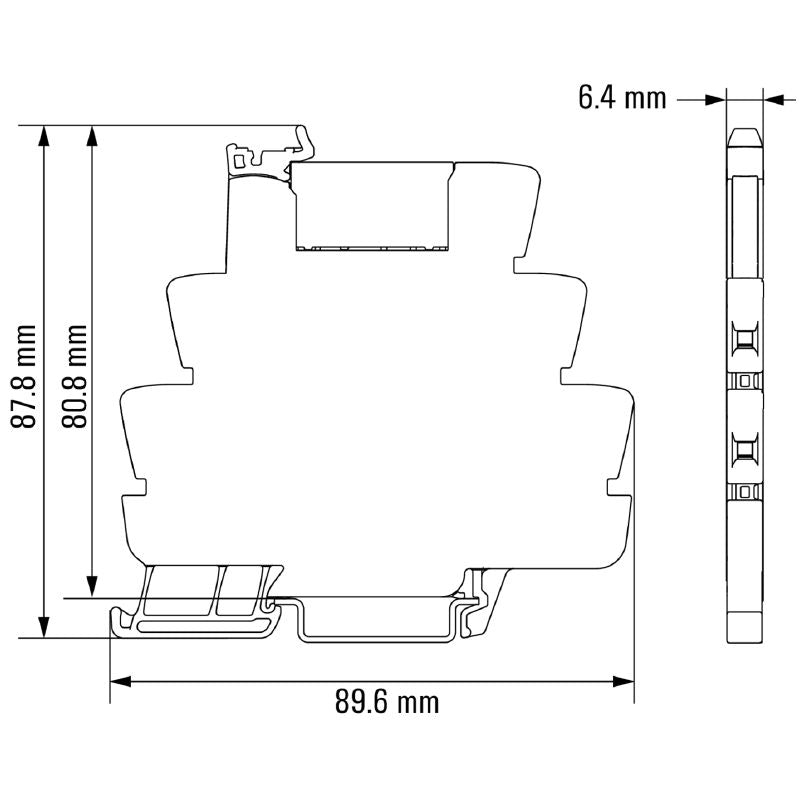

•Compact design with dimensions of 87.8 mm depth, 89.6 mm height, and 6.4 mm width.

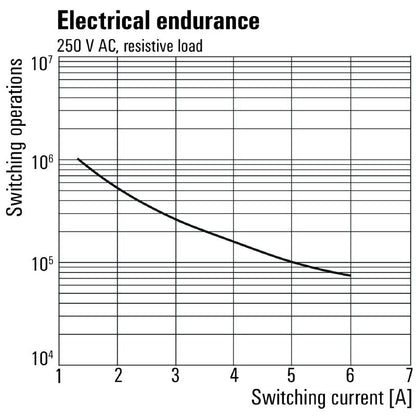

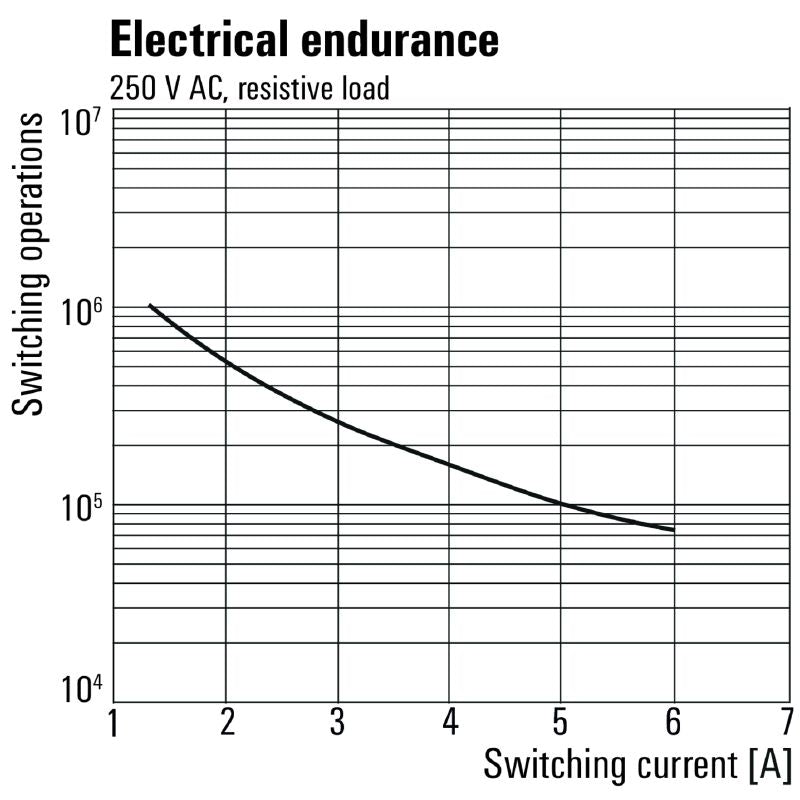

•Mechanical service life of 5 x 10^6 switching cycles.

•Green LED status indicator.

Specifications:
