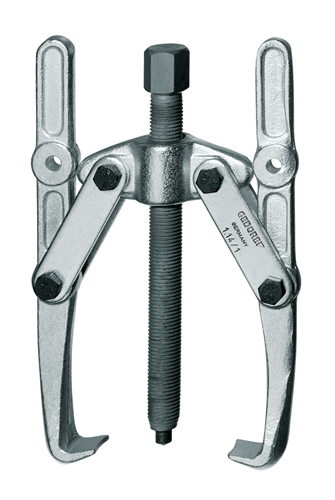

8004810 - Strong 2-Arm Puller for Discs & Wheels, Adjustable Reach

8004810 - Strong 2-Arm Puller for Discs & Wheels, Adjustable Reach

SKU: SKU: 8004810

Variant:
  • 8004810 - Strong 2-Arm Puller for Discs & Wheels, Adjustable Reach
Regular price Now $44.91
Regular price BEFORE   $0.00 Sale price Now $44.91
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust and reliable tool specifically engineered for the extraction of discs, wheels, ball bearings, and more This design features a variable clamping reach that ensures maximum adaptability, coupled with an automatic grip mechanism on the legs for enhanced efficiency It excels at removing V-belt pulleys and flywheels from longer shafts Additionally, it can be upgraded with a hydraulic spindle for increased lifting power.

Features and Benefits:

    •Particularly strong design for removing discs, wheels, ball bearings.

    •Variable clamping reach and automatic grip of the legs.

    •Suitable for pulling off V-belt pulleys and flywheels.

    •Can be retrofitted with hydraulic spindle.

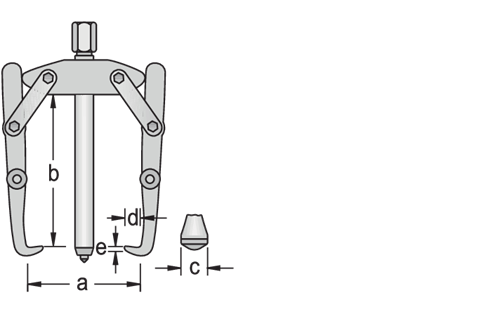

Specifications:

 Total width [mm] 80 mm
 Total height [mm] 24 mm
 Total length [mm] 140 mm
 Tractive force (max.) [t] 1
 Number of arms 2
 reversible hooks No
 Hook brake available No
 Width of hooked foot [mm] 14 mm
 Thickness of hooked foot at tip 2.0 mm
 Usable depth of hooked foot d2 [mm] 9 mm
 Can be retrofitted with hydraulic spindle Yes
 Compliance compliant
 Width across flats [mm] 14 mm
 automatic pressing Yes
 Usable clamping reach [mm] 100 mm
 Clamping width (max.) external pulling [mm] 90 mm
 Spindle anti-slip device No
 Spindle thread size M 12x1.5 x 110
 reversible arms available No
