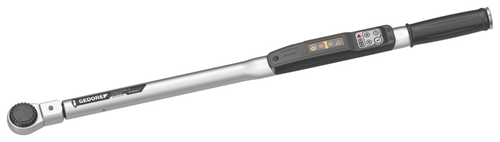

2648644 - Precision Electronic Torque Wrench 70-350 N·m with USB Data Transfer

2648644 - Precision Electronic Torque Wrench 70-350 N·m with USB Data Transfer

SKU: SKU: 2648644

Select a Variant:
  • 2648644 - Precision Electronic Torque Wrench 70-350 N·m with USB Data Transfer
Qty:
Regular price Now $1,235.20   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,235.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing this precision electronic torque and angle wrench, crafted for optimal performance in workshops and service centers It's perfect for effortless torque or angle tightening, especially where accuracy and documentation are critical, such as when working with cylinder head bolts This tool boosts productivity and guarantees secure fastenings Operating within a torque range of 70-350 N·m and boasting a measurement accuracy of ±1% for both torque and angle, it adheres to the highest industrial standards.

Key features include a slip value indicator, peak value measurement, up to five customizable presets with tolerance levels, and an internal memory that stores up to 2,000 measurements Data can be easily transferred using a USB cable, while the illuminated graphic display enhances visibility, even in dim conditions The wrench notifies users both visually and audibly when target values are achieved or exceeded.

Its lightweight and compact design ensures easy handling, and it offers four unique measurement modes Factory calibrated and traceable to national standards, it’s a reliable choice for any professional setting.

Features and Benefits:

    •Controlled screw tightening from 70-350 N·m.

    •Measurement accuracy of +/- 1% for both torque and angle of rotation.

    •Slip value display and peak value measurement.

    •Capable of storing up to 2,000 measurement data.

    •USB data transfer.

    •Illuminated graphic display for easy reading.

    •User alerts via visual and audible signals for target value achievements.

    •Lightweight and compact design.

    •Four different measuring modes.

    •Factory-calibrated with certification.

    •Assembly.

    •Series assembly.

    •Production.

    •Quality control.

    •Maintenance and repair.

Specifications:

 Total width [mm] 39 mm
 Total height [mm] 31.5 mm
 Total length [mm] 900 mm
 Drive connector rectangular 14 x 18 mm
 Drive type/drive Rectangular cavity
 Drive connector square [metric] 12.5 mm
 Drive square inch 1/2"
 Tightening direction Left and right
 Torque (max.) [lbf·ft] 258.2 lbf·ft
 Torque (min.) [lbf·ft] 51.6 lbf·ft
 Torque (max.) [Nm] 350 Nm
 Torque (min.) [Nm] 70 Nm
 Measurement accuracy ± 1% Toleranz vom Ablesewert, ± 1 Digit
 Measuring accuracy angle of rotation ±1%, min. ±1° auf 360° bei mind. 4°/sec.
 Compliance compliant
 Interface USB
