2641313 - DREMSTER UK 1/2" Torque Wrench 40-200 Nm with Ratchet

2641313 - DREMSTER UK 1/2" Torque Wrench 40-200 Nm with Ratchet

SKU: SKU: 2641313

Select a Variant:
  • 2641313 - DREMSTER UK 1/2" Torque Wrench 40-200 Nm with Ratchet
Qty:
Regular price Now $58.17   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $58.17 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

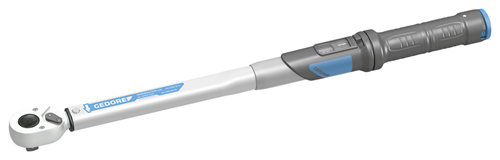

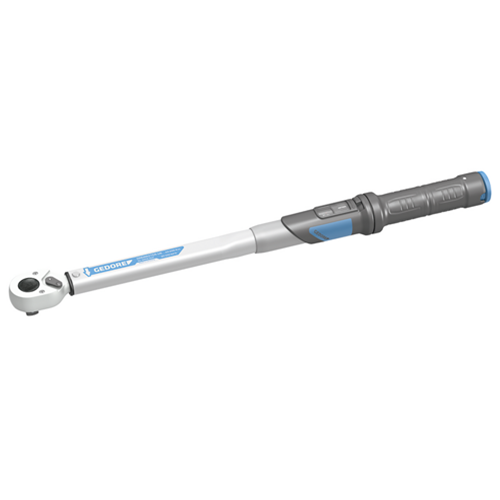

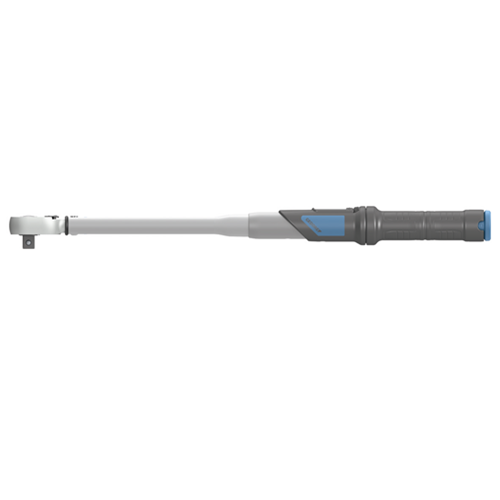

Introducing the DREMSTER UK torque wrench, an essential tool for precise screw tightening in the range of 40 - 200 Nm and 30 - 150 lbf·ft This sturdy, adjustable torque wrench features a built-in ratchet and square drive, making it ideal for industrial and trade uses It meets the DIN EN ISO 6789-2:2017 Type II Class A standards and comes with a traceable test certificate, boasting a maximum permissible deviation of +/- 3%, which is superior to the standard requirement of +/- 4%.

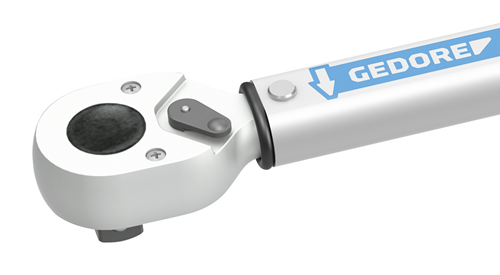

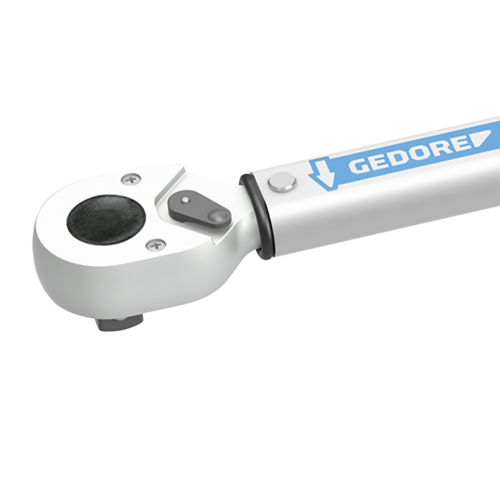

Designed specifically for clockwise tightening, it includes a 1/2" reversible ratchet The tubular construction is coated with durable varnish, while the zinc-plated ratchet head and premium plastic components enhance its longevity The wrench features an ergonomically designed plastic grip that provides comfort and includes a calibration aid You can easily switch between the main scale in Nm and the ancillary scale in lbf·ft to reduce reading errors.

A micrometre scale allows for quick adjustments to interim torque values, and the built-in release system gives clear tactile and audible feedback upon torque release for a better user experience Additionally, setting the tool quickly is simple with a hexagon allen key (not provided).

Features and Benefits:

    •Clasified according to DIN EN ISO 6789-2:2017 Type II Class A.

    •Traceable test certificate with maximum permissible deviation of +/- 3%.

    •Controlled clockwise tightening.

    •1/2" reversible ratchet.

    •Sturdy varnished tubular steel construction with zinc-plated ratchet head.

    •Ergonomic plastic handgrip with calibration aid.

    •Change-over between Nm main scale and lbf·ft ancillary scale.

    •Micrometre scale for setting interim values.

    •Tactile and audible signal upon torque release.

    •Rapid setting feature with hexagon allen key (not included).

    •Assembly.

    •Production.

    •Maintenance.

    •Repair.

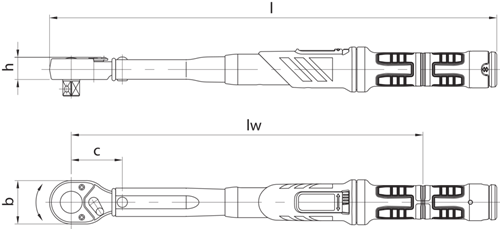

Specifications:

 Total width [mm] 44 mm
 Total height [mm] 44 mm
 Total length [mm] 530 mm
 Distance housing - square drive 21.25 mm
 Drive type/drive Reversible ratchet
 Drive connector square [metric] 12.5 mm
 Drive square inch 1/2"
 Number of teeth 48
 Tightening direction Right
 Trigger mechanism Short path triggering
 Torque (max.) [lbf·ft] 150 lbf·ft
 Torque (min.) [lbf·ft] 30 lbf·ft
 Torque (max.) [Nm] 200 Nm
 Torque (min.) [Nm] 40 Nm
 Fixed setting No
 Calibration length 435.2 mm
 Width of head 1 [mm] 42.5 mm
 Head height 1 [mm] 22 mm
 Material Tubular steel construction, top-grade plastic parts
 Vernier Nm 1 Nm
 Precision +/- +/- 3 %
 Test certificate DIN EN ISO 6789-2:2017
 Compliance compliant
 Return angle 7.5 °
 Graduation [lbf·ft] 10 lbf·ft
 Scale division [Nm] 10 Nm
