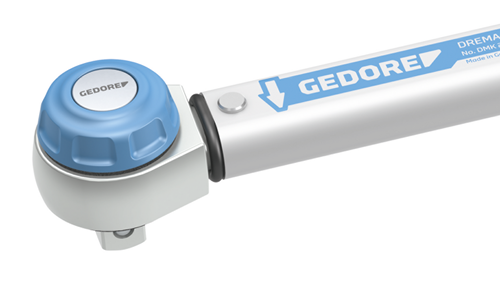

2641275 - DREMASTER K 3/4" Torque Wrench 110-550 Nm with Ratchet

2641275 - DREMASTER K 3/4" Torque Wrench 110-550 Nm with Ratchet

SKU: SKU: 2641275

Select a Variant:
  • 2641275 - DREMASTER K 3/4" Torque Wrench 110-550 Nm with Ratchet
Qty:
Regular price Now $1,308.20   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,308.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the DREMASTER K 3/4" torque wrench, expertly crafted for precise screw tightening within the range of 110 - 550 Nm (80 - 405 lbf·ft) This robust and adjustable tubular torque wrench boasts an integrated ratchet and a square drive, making it an excellent choice for industrial and trade environments Adhering to the DIN EN ISO 6789-2:2017 Type II Class A standards, this tool comes with a traceable test certificate and is calibrated to a maximum permissible deviation of +/- 3%, exceeding the industry standard of +/- 4%.

It facilitates controlled fastening in both right-hand and left-hand orientations and features a 1/2" interchangeable square with a mushroom head, push-button release, and a secure ball-locking mechanism Constructed from durable varnished tubular steel, the torque wrench also includes a zinc-plated ratchet head and high-quality plastic components Its ergonomic plastic handgrip is designed with a calibration aid for effortless switching between the main Nm scale and the ancillary lbf·ft scale, minimizing the risk of reading inaccuracies.

Additionally, the tool features a micrometer scale for interim value settings and a release system that provides both tactile and audible feedback for precise adjustments Quick torque adjustments can easily be made using a hexagon allen key (not included) This torque wrench is the perfect companion for achieving reliable and accurate results in your tightening tasks.

Features and Benefits:

    •Classified according to DIN EN ISO 6789-2:2017 Type II Class A.

    •Calibrated to a maximum permissible deviation of +/- 3 %.

    •Designed for controlled right-hand and left-hand fastening.

    •Ergonomically shaped plastic handgrip with calibration aid.

    •Features a micrometer scale for interim value settings.

    •Includes visual and auditory signals for torque release.

    •Sturdy, varnished tubular steel construction.

    •Assembly.

    •Production.

    •Maintenance.

    •Repair.

Specifications:

 Total width [mm] 70 mm
 Total height [mm] 52 mm
 Total length [mm] 955 mm
 Distance housing - square drive 34.5 mm
 Drive type/drive Push-through square
 Drive connector square [metric] 20 mm
 Drive square inch 3/4"
 Number of teeth 36
 Tightening direction Left and right
 Trigger mechanism Short path triggering
 Torque (max.) [lbf·ft] 405 lbf·ft
 Torque (min.) [lbf·ft] 80 lbf·ft
 Torque (max.) [Nm] 550 Nm
 Torque (min.) [Nm] 110 Nm
 Fixed setting No
 Calibration length 846.4 mm
 Width of head 1 [mm] 69.0 mm
 Head height 1 [mm] 38 mm
 Material Tubular steel construction, top-grade plastic parts
 Vernier Nm 1 Nm
 Precision +/- +/- 3 %
 Test certificate DIN EN ISO 6789-2:2017
 Compliance compliant
 Return angle 10 °
 Graduation [lbf·ft] 10 lbf·ft
 Scale division [Nm] 10 Nm
