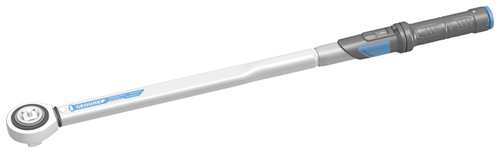

2641267 - 3/4" Adjustable Torque Wrench 80-400 Nm with Ratchet

2641267 - 3/4" Adjustable Torque Wrench 80-400 Nm with Ratchet

SKU: SKU: 2641267

Variant:
  • 2641267 - 3/4" Adjustable Torque Wrench 80-400 Nm with Ratchet
Regular price Now $612.13
Regular price BEFORE   $0.00 Sale price Now $612.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure precision in your projects with this professional-grade torque wrench, crafted specifically for meticulous screw tightening within a range of 80 - 400 Nm (60 - 300 lbf·ft) This robust tubular wrench features an integrated ratchet and a square drive, making it an ideal choice for industrial applications and trades Adhering to DIN EN ISO 6789-2:2017 Type II Class A standards, it includes a traceable calibration certificate, offering accuracy within a maximum permissible deviation of +/- 3%, surpassing typical industry requirements.

Designed for versatility, this wrench accommodates both right-hand and left-hand fastening It boasts a 1/2" interchangeable square that is easily released using a push-button mechanism, along with a durable varnished tubular steel build and an ergonomically designed plastic grip for enhanced comfort Users can seamlessly toggle between Nm and lbf·ft measurement scales to minimize errors, while the adjustable release system provides both tactile and audible feedback.

Additionally, the wrench has features for quick adjustment with a hexagon allen key (not included), ensuring efficiency in any task.

Features and Benefits:

    •Classified according to DIN EN ISO 6789-2:2017 Type II Class A with test certificate.

    •Calibrated with a maximum permissible deviation of +/- 3%.

    •Ergonomically shaped plastic handgrip with calibration aid.

    •Change-over between Nm and lbf·ft scales to avoid reading errors.

    •Release system with tactile and audible signal.

    •Sturdy tubular steel construction for durability.

    •Controlled screw tightening.

    •Assembly.

    •Production.

    •Maintenance and repair.

Specifications:

 Total width [mm] 67 mm
 Total height [mm] 51 mm
 Total length [mm] 715 mm
 Net weight [kg] 2.5 kg
 Drive type Push-through square
 Drive connector square [metric] 20 mm
 Drive square inch 3/4"
 Number of teeth 36
 Tightening direction Left and right
 Trigger mechanism Short path triggering
 Torque max [lbf·ft] 300 lbf·ft
 Torque min [lbf·ft] 60 lbf·ft
 Torque max [Nm] 400 Nm
 Torque min [Nm] 80 Nm
 Calibration length 608.9 mm
 Width of head 1 [mm] 62.5 mm
 Head height 1 [mm] 38 mm
 Material Tubular steel construction, top-grade plastic parts
 Precision +/- +/- 3 %
 Test certificate DIN EN ISO 6789-2:2017
 Compliance compliant
 Return angle 10 °
 Graduation [lbf·ft] 10 lbf·ft
 Scale division [Nm] 10 Nm
