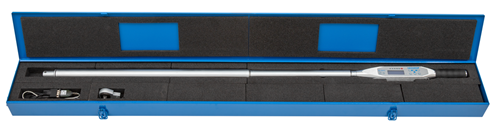

2795655 - Precision Electronic Torque Wrench, 100-1000 N·m with Data Tracking

Description:

Ensure precision and reliability in your assembly tasks with this advanced Electronic Torque & Angle Wrench Designed for production lines, it guarantees a secure and controllable screwing process while providing traceability for screw connections that necessitate documentation Capable of controlled screw tightening from 100 to 1000 N·m, this wrench meets the highest industrial standards with extraordinary measurement accuracy of +/- 1% for both torque and angle of rotation.

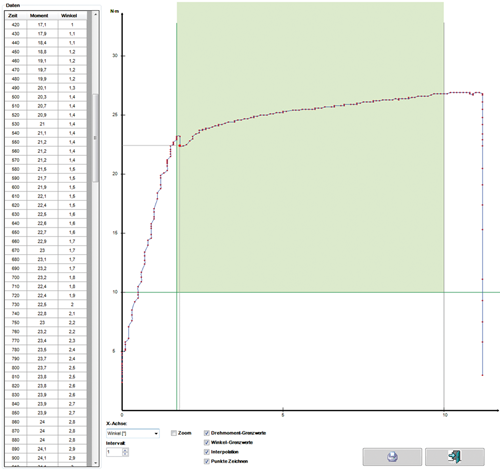

Key features include torque and angle display, peak value capture, a sliding value display, and the ability to set up to 100 presets along with a detailed work plan Its internal memory holds up to 2,000 measurement data points and curves for comprehensive tracking Data transfer is facilitated via USB or wirelessly through optional WLAN connectivity You can easily initiate the work plan and screw parameters through the user-friendly menu or the integrated 1-D scanner (optional).

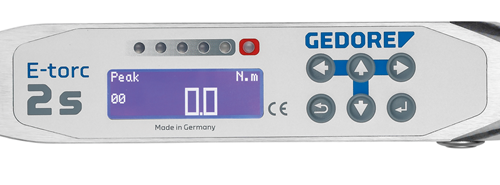

Equipped with a backlit display, it remains readable even in low-light conditions Users receive immediate feedback upon reaching or surpassing the target value through visual indicators (display and LED progress bar), tactile signals (vibration in the handle), and audible alerts (beep) For added versatility, the wrench’s housing can rotate +/- 60°, ensuring you can view the display from difficult angles.

Power is supplied by two standard AA batteries or rechargeable batteries, with the option to use a charging/communication station Each unit comes factory-calibrated according to GEDORE's internal standard GTTWN001, with traceability to national standards Calibration can also conform to DKD-R 3-7 Class 1 with optional certificate accreditation The product allows for programming with various gauges for insertion tools, and it includes complimentary evaluation PC software for easy data management.

Features and Benefits:

•Controlled screw tightening in the range of 100-1000 N·m.

•Measurement accuracy +/- 1% for torque and angle of rotation.

•Records up to 2,000 measurement data and curves.

•Data transfer available via USB or WLAN.

•Includes integrated 1-D scanner for starting work plans.

•Visual, haptic, and acoustic signals for target value indication.

•Housing rotates by +/- 60° for easy reading in difficult locations.

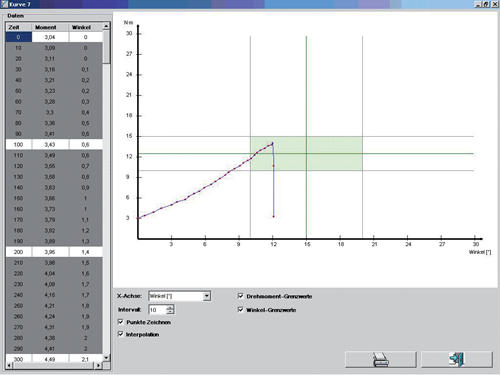

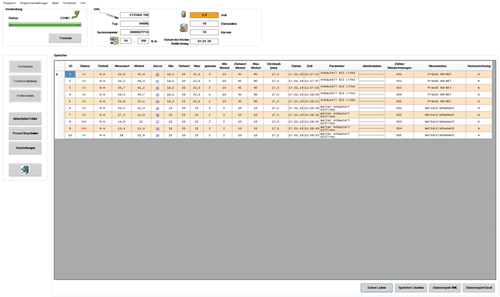

•Free evaluation PC software provided.

•Assembly.

•Series assembly.

•Production.

•Quality control.

•Maintenance and repair.

•Bolting case analysis.

Specifications:
