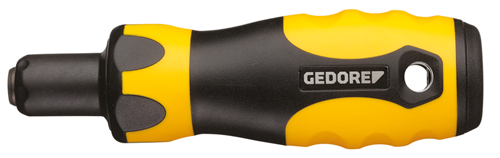

2927829 - ESD Torque Screwdriver 1/4" for Precision Tightening 2.5-13.5 Nm

2927829 - ESD Torque Screwdriver 1/4" for Precision Tightening 2.5-13.5 Nm

SKU: SKU: 2927829

Select a Variant:
  • 2927829 - ESD Torque Screwdriver 1/4" for Precision Tightening 2.5-13.5 Nm
Qty:
Regular price Now $22.82   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $22.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

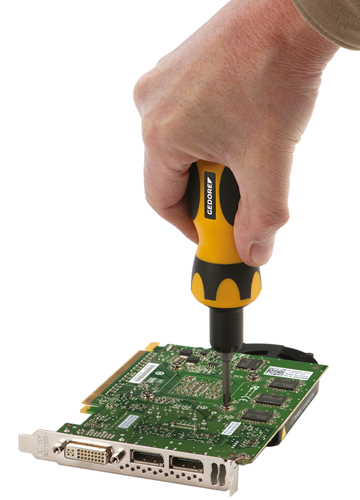

Experience precision assembly with our torque screwdriver, expertly crafted for consistent screw tightening between 25 and 135 Nm This tool is perfect for professionals in the electronic industry, precision mechanics, and industrial manufacturing, ensuring reliable and accurate performance in all your fastening tasks.

Features and Benefits:

    •Pre-set torque screwdriver without scale.

    •Includes 1/4" female hexagon drive compatible with 1/4" hexagon bits as per DIN 3126 - C 6.3.

    •Classified according to DIN EN ISO 6789:2003 Type II Class F, comes with a traceable factory certificate.

    •Calibrated to a permitted +/- 6 % deviation of the set torque.

    •EPA-conformant for sensitive electrostatic applications.

    •Precision radial ball clutch and cam design for controlled bi-directional tightening.

    •Mechanism indicates when the pre-set value is achieved.

    •Features an ergonomic handle for fatigue-free working and smooth tool reset action.

    •Calibration stickers can be applied to a specially designed nose.

    •Pre-setting possible at the factory or by user with torque testers.

    •Assembly.

    •Production.

    •Quality control.

    •Series assembly.

    •Maintenance and repair.

Specifications:

 Total height (mm) 37.3 mm
 Total length (mm) 140 mm
 Net weight (kg) 0.23 kg
 Drive connector hexagon (metric) 6.3 mm
 Drive connector hexagon (inch) 1/4"
 Drive type/drive Bitholder
 Tightening direction Left and right
 Trigger mechanism Friction clutch
 Torque (max.) (cNm) 1350 cNm
 Torque (min.) (cNm) 250 cNm
 Torque (max.) (Nm) 13.5 Nm
 Torque (min.) (Nm) 2.5 Nm
 Epa-/Esd-Model Yes
 Fixed setting Yes
 Precision +/- +/- 6 %
 Test certificate DIN EN ISO 6789-2:2017
 Cross-handle available Yes
 Compliance compliant
