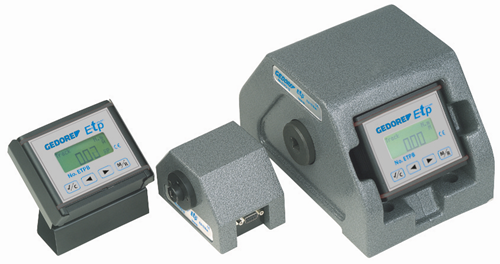

2795868 - Electronic Torque Tester 0.5-3150 Nm with Overload Protection

Description:

Introducing the electronic torsion tester, an essential tool for accurately assessing both clockwise and anti-clockwise torque wrenches This device is available in five models, catering to a torque spectrum from 05 to 3150 Nm, equipped with integrated measurement electronics for superior precision Crafted with a durable aluminum cast housing (except for the ETP 3150 model), it features a detachable operating display for user-friendly interaction.

Connectivity is enhanced with a RS232 serial interface, allowing straightforward PC integration, and all models are compliant with national testing standards for reliable measurement Notably, the ETP 15 variant includes built-in overload protection that can be manually reset after experiencing any unexpected overload conditions The torque measurement accuracy is impressive at ±1%, with an additional ±1 digit variance on the displayed figure.

Each product comes with a factory certificate adhering to VDI 2646 standards, with the option of an additional DAkkS-DKD-R 3-8 certificate The large LC graphic display allows users to easily view measurements in Nm, with the versatility to switch between cNm, lbf·ft, or lbf·in depending on the chosen model Included with each device is complimentary evaluation software for PC, alongside an operating display, display holder with a cable, and a connection cable for PC.

For added convenience, an optional RS232 to USB adapter cable (Code 1957880) is also available.

Features and Benefits:

•5 models ranging from 0.5 to 3150 Nm.

•Electronic torque tester with integrated measurement electronics.

•Robust aluminium cast housing.

•Separate or detachable operating display.

•Serial interface RS232 for PC connection.

•Traceable to national standards.

•Integrated overload protection in model ETP 15.

•Torque reading precision of +/- 1%, +/- 1 digit.

•Factory certificate based on VDI 2646.

•Optional DAkkS-DKD-R 3-8 certificate.

•Large LC graphic display with adjustable measuring range.

•Free evaluation PC software included.

•Testing and verifying clockwise and anti-clockwise torque wrenches.
