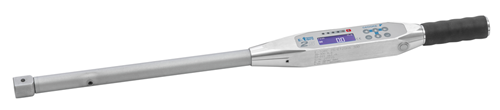

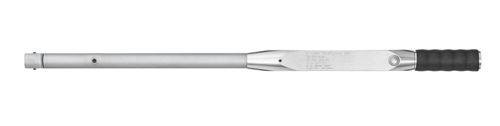

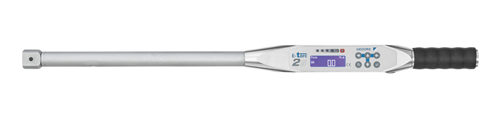

2795620 - Precision Electronic Torque Wrench 30-300 N·m with Memory & USB

Description:

Experience precision assembly with the Electronic Torque & Angle Wrench, ideal for production and assembly tasks This innovative tool ensures a secure and controllable screwing process, providing essential documentation and traceability for screw connections It allows for controlled tightening within a torque range of 30-300 N·m, fulfilling even the most stringent industrial standards with a measurement accuracy of +/- 1% for both torque and angle of rotation.

Equipped with features such as torque/angle tracking, peak value recording, and up to 100 customizable presets, this wrench helps you maintain an effective work plan It can store up to 2,000 measurement records and curves in its internal memory Data transfer options include a USB connection or wireless transfer via WLAN (optional) You can easily access work plans and screw parameters through the menu or the optional integrated 1-D scanner.

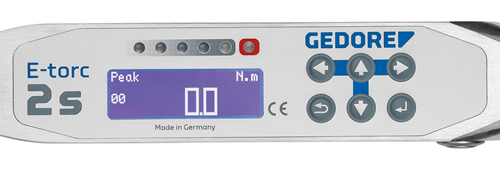

The backlit display ensures clear visibility, even in low-light conditions, while visual, haptic (vibration), and acoustic signals alert you when target values are reached or exceeded With a housing that rotates +/- 60°, you can view the display from various angles, making it easier to work in tight spaces Powered by two standard AA or rechargeable batteries, the E-Torc II offers dependable performance, with an optional charging and communication station available.

Each unit comes with a factory calibration certificate in accordance with GEDORE's GTTWN001 standard, ensuring traceability to national standards Optional calibration to DKD-R 3-7 Class 1 with an accreditation certificate is also available The wrench is programmable with different gauges for insertion tools, and our complimentary evaluation PC software is included for your convenience.

Features and Benefits:

•Controlled screw tightening in the range of 30-300 N·m.

•Measurement accuracy +/- 1%.

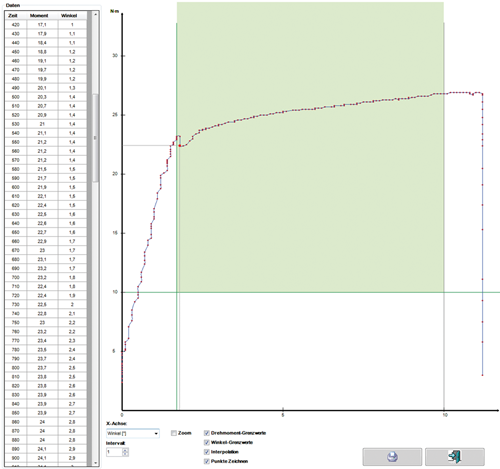

•Records up to 2,000 measurement data and curves.

•Data transfer options via USB or WLAN.

•Backlight for reading display in poor lighting.

•Visual, haptic, and acoustic signals for target value notifications.

•Rotatable housing for accessing hard-to-reach areas.

•Factory calibration certificate included.

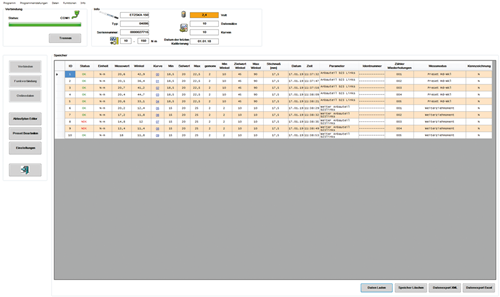

•Free evaluation PC software included.

•Assembly.

•Series assembly.

•Production.

•Quality control.

•Maintenance and repair.

•Bolting case analysis.

Specifications:
