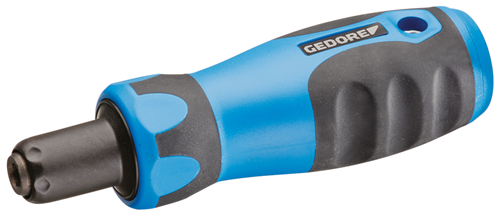

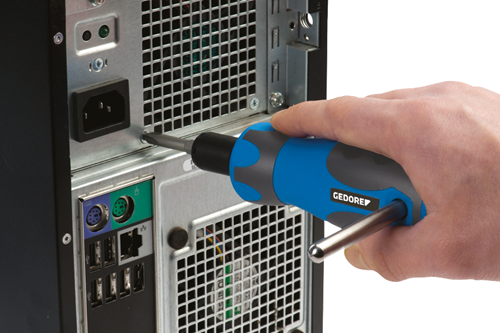

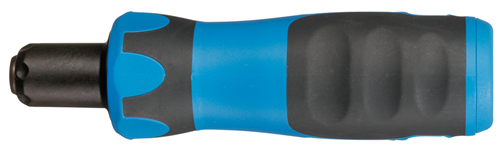

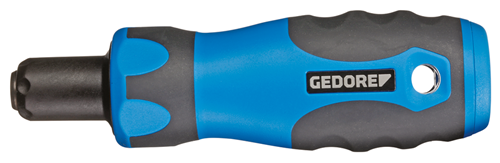

2927756 - Precision Torque Screwdriver 0.05-0.25 Nm for Electronics

2927756 - Precision Torque Screwdriver 0.05-0.25 Nm for Electronics

SKU: SKU: 2927756

Select a Variant:
  • 2927756 - Precision Torque Screwdriver 0.05-0.25 Nm for Electronics
Qty:
Regular price Now $185.30   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $185.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Achieve precise screw tightening with our controlled torque range of 005 - 025 Nm This product is manufactured serially, ensuring a consistent tightening value ideal for applications in the electronic industry, precision mechanics, and industrial manufacturing.

Features and Benefits:

    •Pre-set torque screwdriver - without scale.

    •With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3.

    •Classified according to DIN EN ISO 6789:2003 Type II Class F, with a traceable factory certificate..

    •Calibrated to a permitted +/- 6 % deviation of the set torque.

    •Precision radial ball clutch and cam design for controlled bi-directional tightening.

    •Precision mechanism slips very noticeably when the pre-set value is achieved.

    •Automatic resetting to the starting position.

    •Fatigue-free working due to an ergonomic hand grip and a smoth tool reset action.

    •Calibration stickers can be easily applied to the purpose designed nose.

    •The pre-setting can be made at the factory or by the user on suitable torque testers.

    •Controlled screw tightening in assembly production.

    •Quality control.

    •Series assembly.

    •Maintenance and repair.

Specifications:

 Total height [mm] 37 mm
 Total length [mm] 132 mm
 Net weight [kg] 0,21 kg
 Drive connector hexagon [metric] 6,3
 Drive connector hexagon [inch] 1/4"
 Drive type/drive Bitholder
 Tightening direction Left and right
 Trigger mechanism Friction clutch
 Torque (max.) [cNm] 25 cNm
 Torque (min.) [cNm] 5 cNm
 Torque (max.) [Nm] 0,25 Nm
 Torque (min.) [Nm] 0,05 Nm
 Epa-/Esd-Model No
 Fixed setting Yes
 Precision +/- +/- 6 %
 Test certificate DIN EN ISO 6789-2:2017
 Cross-handle available No
 Compliance compliant
