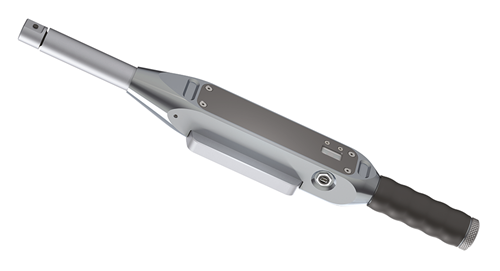

2958775 - Precision Electronic Torque Wrench 20-200 Nm with Touch Display

Description:

Introducing the innovative electronic torque and angle wrench, designed specifically for quality assurance and analysis applications This advanced tool allows for precise control over screw tightening with a torque range of 20 - 200 N·m, and features curve evaluation capabilities directly on the wrench for enhanced analysis With exceptional accuracy of +/- 1%, both in torque and angle of rotation, this wrench meets the demanding standards of industrial use.

It accommodates various measurement methods, including torque, angle of rotation, yield point, further turning (compliant with VDI regulations), and loosening-tightening sequences The robust internal memory can store up to 9,999 measurements and curves, providing ample data for thorough assessments Connectivity is a breeze, with the capability to transfer data wirelessly via WLAN or through a USB cable.

Users can also upload work plans and images directly to the wrench, or initiate plans using the menu or an optional integrated 2-D scanner Additionally, there’s an option to establish a connection with CAQ systems for enhanced workflow integration Operation is simplified through a high-contrast 43" touch screen that maintains a stable viewing angle, facilitating quick and intuitive access to measurement data and real-time curve evaluations on-site.

Visual, haptic, and acoustic alerts notify users when target values are reached or exceeded Designed for convenience, the housing swivels +/- 60°, making it easy to read the display in tight spaces The powerful lithium-ion battery provides long-lasting performance without a memory effect and can be swiftly replaced via a quick-change system Recharge it effortlessly with the optional charging station.

Every unit is supplied with a factory calibration certificate per GEDORE's in-house standard GTTWN001, traceable to national standards Optional calibration according to DKD-R 3-7 Class 1 is available The package includes programmable gauges for insertion tools and complimentary evaluation software for PC, ensuring you have everything needed for efficient operation.

Features and Benefits:

•Measurement accuracy +/- 1% for torque and angle of rotation.

•Can record up to 9,999 measurement data and curves.

•Data transfer via WLAN or USB cable.

•Intuitive operation with a 4.3" touch display.

•Visual, haptic, and acoustic signals for reaching set values.

•Rotatable housing allows for reading in difficult locations.

•Long-lasting lithium-ion battery with quick-change system.

•Includes factory calibration certificate and optional calibration for compliance.

•Quality control.

•Maintenance and repair.

•Production.

•Assembly.

•Bolting case analysis.
