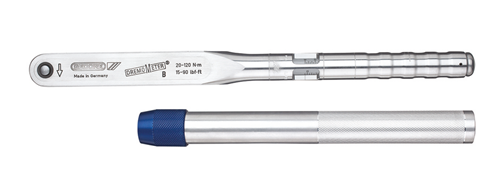

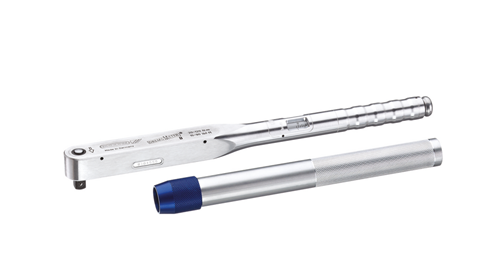

2926989 - Precision Torque Wrench 25-120 Nm with 1/2" Drive

2926989 - Precision Torque Wrench 25-120 Nm with 1/2" Drive

SKU: SKU: 2926989

Select a Variant:
  • 2926989 - Precision Torque Wrench 25-120 Nm with 1/2" Drive
Qty:
Regular price Now $585.73   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $585.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Achieve precise screw tightening with this professional-grade tool, capable of delivering torque within the range of 25 - 120 Nm (18 - 90 lbf·ft), making it an essential addition to various industrial manufacturing applications This tool adheres to DIN EN ISO 6789-2:2017 Type II Class A standards and comes with a traceable test certificate It has been calibrated to a maximum allowable deviation of just +/- 3%, exceeding the standard's requirement of +/- 4%, ensuring accuracy and reliability in every use.

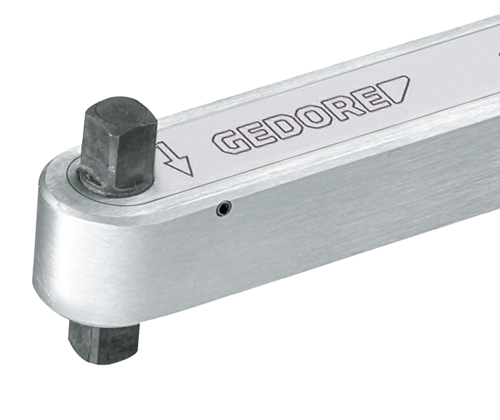

Equipped with a 1/2" square drive featuring a secure ball locking mechanism, this tool offers effortless use with its automatic short-path actuation, providing both a tactile impulse and an audible alert when the desired torque is achieved It also features a dual scale with graduations of 5 Nm and 5 lbf·ft for easy reading and adjustment.

Features and Benefits:

    •Lightweight and robust housing made of high-quality aluminum alloy.

    •No inaccuracies whether used with both hands or held away from the handle.

    •Both the square drive and fulcrum are on an axis ensuring a high degree of user safety.

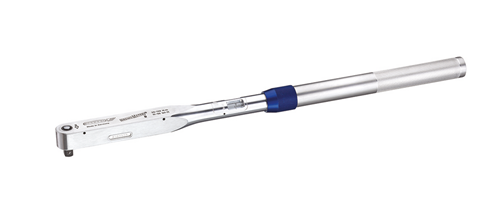

    •Can be extended to reduce the user's working load.

    •Extremely low wear due to reduced forces in a lever mechanism.

    •Maximum precision even under extreme continuous use.

    •Long life cycles and tool lives.

    •Easy operation for fast and safe torque tightening.

    •Easy adjustment with an attractive button secured against loss.

    •Assembly Series assembly.

    •Production.

    •Maintenance and repair.

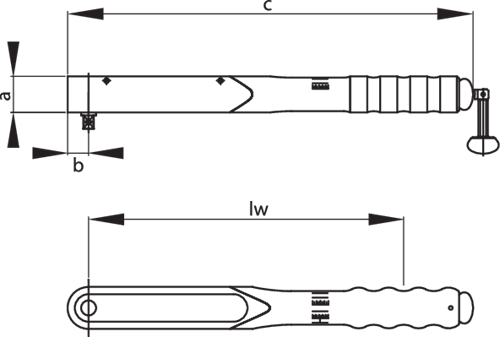

Specifications:

 Total width [mm] 35 mm
 Total height [mm] 38 mm
 Total length [mm] 462 mm
 Drive type Single square rigid
 Drive connector square [metric] 12.5 mm
 Drive square inch 1/2"
 Tightening direction Right
 Calibration length 373 mm
 Width of head 1 [mm] 35.0 mm
 Head height 1 [mm] 30 mm
 Material Aluminum alloy
 Precision +/- +/- 3 %
 Test certificate DIN EN ISO 6789-02:2017
 Torque (max.) [lbf·ft] 90 lbf·ft
 Torque (min.) [lbf·ft] 18 lbf·ft
 Torque (max.) [Nm] 120 Nm
 Torque (min.) [Nm] 25 Nm
 Graduation [lbf·ft] 5 lbf·ft
 Scale division [Nm] 5 Nm
