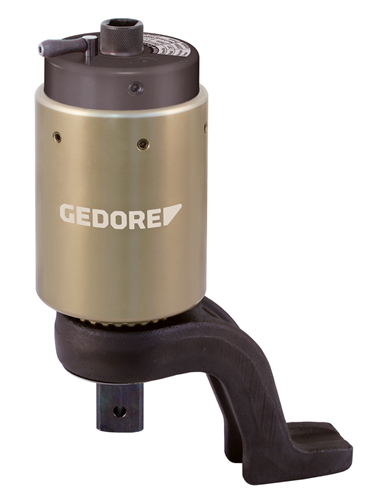

2653109 - DREMOPLUS ALU Torque Multiplier 4000 Nm with Anti-Wind-Up Ratchet

2653109 - DREMOPLUS ALU Torque Multiplier 4000 Nm with Anti-Wind-Up Ratchet

SKU: 2653109

Variant:
  • 2653109 - DREMOPLUS ALU Torque Multiplier 4000 Nm with Anti-Wind-Up Ratchet
Now $5,923.81
BEFORE   $0.00 Now $5,923.81
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

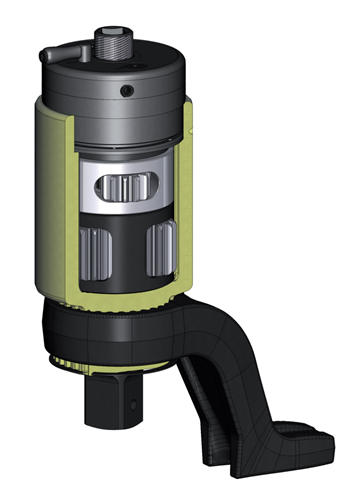

Introducing the DREMOPLUS ALU torque multiplier, your perfect solution for a wide array of applications such as machinery and plant engineering, cable cars, lifts, heavy industry, construction, bridge building, shipbuilding, aviation, railway construction, refineries, the plastics industry, and power plants This mechanical hand tool is expertly crafted for precise screw tightening and loosening, featuring a two-stage planetary gear system housed in robust aluminum.

The DVV-40ZRS model is equipped with an anti-wind-up ratchet and innovative "Slipper" overload protection to ensure the gearbox's safety It provides the flexibility to operate using either hand while delivering impressive accuracy within a tolerance of better than +/- 3% Designed to work seamlessly with an appropriate torque wrench, this tool offers a maximum load capacity of 4000 Nm It also includes an output square that has a hole for impact sockets, complete with a locking pin and ring for secure use.

Features and Benefits:

    •Controlled screw tightening and unloosening.

    •Two-stage planet gear.

    •High-performance aluminium housing.

    •1:16 gear ratio.

    •Anti-wind-up ratchet (RS).

    •Non-destructive overload protection "Slipper".

    •Z-form, offset reaction arm made of chrome-vanadium steel.

    •Accuracy: Better than +/- 3 % tolerance.

    •Operable with a suitable torque wrench.

    •Maximum load capability of 4000 Nm.

    •Output square for impact sockets with locking pin and ring.

    •Machinery and plant engineering.

    •Cable cars.

    •Lifts and masts.

    •Heavy industry.

    •Construction sites.

    •Bridge construction.

    •Shipbuilding.

    •Aircraft and railway construction.

    •Refineries.

    •Plastics industry.

    •Power plants of all kinds.

Specifications:

 Total length [mm] 230 mm
 Net weight [kg] 4.2 kg
 Output square 1"
 Drive mount, square [metric] 12.5 mm
 Drive connector square [inch] 1/2"
 Output torque (max.) [lbf-ft] 2930
 Output torque (max.) [Nm] 4000
 Input torque [lbf·ft] 230 lbf·ft
 Input torque (max.) [Nm] 310 Nm

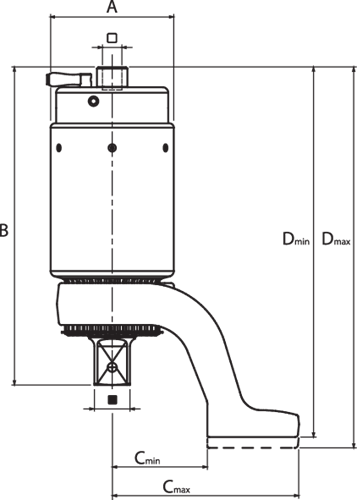

 Total width without reaction arm 88
 Total height with reaction arm (max.) 270
 Total height with reaction arm (min.) 264
 Total height without reaction arm 227
 Distance output square - start reaction arm (min.) 68
 Distance output square - end of reaction arm (max) 133
 Compliance compliant
 Backflow protection Yes
 Multiplication at the ratio 1:16
