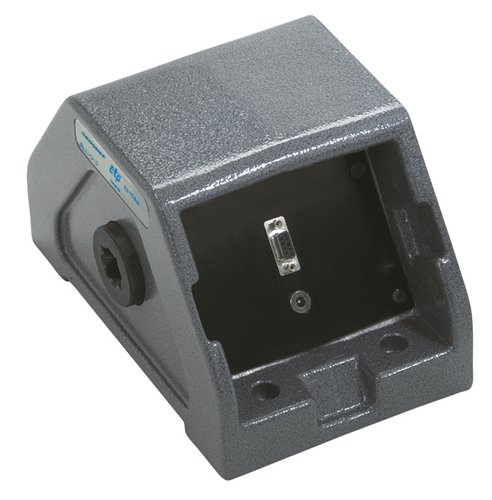

2795957 - Cast Aluminium Housing 0.5-3150 Nm with RS232 Interface

2795957 - Cast Aluminium Housing 0.5-3150 Nm with RS232 Interface

SKU: SKU: 2795957

Select a Variant:
  • 2795957 - Cast Aluminium Housing 0.5-3150 Nm with RS232 Interface
Qty:
Regular price Now $5,987.59   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $5,987.59 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our sturdy cast aluminum housing, designed for reliable PC connectivity via a serial RS232 interface (note: the ETP3150 model has a different build) This product line offers a variety of five models, delivering torque specifications from 05 to 3,150 N·m You can trust its exceptional measurement accuracy, featuring a tolerance of +/- 1% of the reading and +/- 1 digit Specifically, the ETPG 15 model includes built-in overload protection and a manual reset tool to handle any inadvertent overload situations.

Additionally, this device offers versatility in measurement units, allowing you to switch between Nm, cNm, lbf-ft, or lbf-in, depending on your requirements To power the unit, a EURO plug power supply is included, with adaptors available on request for UK, US, and AUS regions.

Features and Benefits:

    •Made of cast aluminium.

    •Serial interface RS232 for PC.

    •Five models ranging from 0.5 to 3,150 N·m.

    •High measurement accuracy with +/- 1% tolerance.

    •Model ETPG 15 has integrated overload protection.

    •Wide measuring range switchable to multiple units.

    •Includes power supply unit with EURO plug.

Specifications:

 Total width [mm] 184 mm
 Total height [mm] 195 mm
 Total length [mm] 280 mm
 Net weight [kg] 26.6 kg
 Drive mount, square [metric] 40.0 mm
 Drive connector square [inch] 1.1/2"
 Resolution 1.0
 Torque (max.) [lbf·ft] 2323 lbf·ft
 Torque (min.) [lbf·ft] 221 lbf·ft
 Torque (max.) [Nm] 3150 Nm
 Torque (min.) [Nm] 300 Nm
 Graphic display No
 Measurement accuracy ± 1% Toleranz vom Ablesewert, ± 1 Digit
 Compliance compliant
 Interface RS-232
 Overload protection No
