2653389 - 1300 Nm Torque Multiplier Set with Aluminium Case and 3 Sockets

2653389 - 1300 Nm Torque Multiplier Set with Aluminium Case and 3 Sockets

SKU: 2653389

Select a Variant:
  • 2653389 - 1300 Nm Torque Multiplier Set with Aluminium Case and 3 Sockets
Qty:
Now $3,099.56   Web pricing policy
BEFORE   $0.00 Now $3,099.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Description:

Introducing the 1300 Nm Torque Multiplier Set, an essential tool for various industries including construction, automotive, and agriculture This versatile device is perfect for applications involving bridge, ship, aircraft, and railway construction, as well as refineries and mechanical engineering Engineered for precision, the mechanical hand torque multiplier allows users to tighten and loosen screws with exceptional control.

Its robust single-stage planetary gearing is housed in a high-performance aluminum casing, designed for durability and efficiency Included in this set is a Z-form offset reaction arm crafted from chrome-vanadium steel, with an option to upgrade to a lightweight L-form straight reaction arm This tool guarantees an accuracy of better than +/- 3% tolerance when paired with a compatible torque wrench, achieving a maximum load capacity of 1300 Nm.

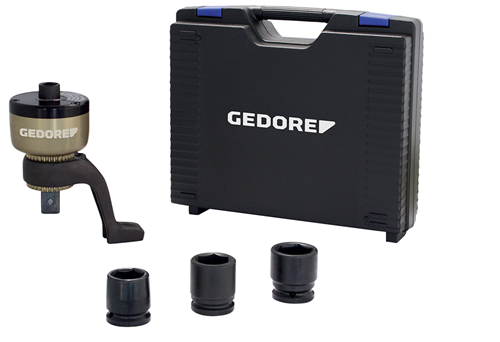

To enhance its functionality, the kit comes with three 3/4" impact sockets in sizes 27 mm, 30 mm, and 32 mm, all neatly stored in a transport case with a protective foam insert for easy transport and organization This Torque Multiplier Set is a reliable companion for professionals looking for efficiency and precision in their projects.

Features and Benefits:

    •Mechanical hand torque multiplier for controlled screw tightening and unloosening.

    •Single stage planetary gearing.

    •High-performance aluminium housing.

    •Z-form offset reaction arm made of chrome-vanadium steel.

    •Option to retrofit with L-form straight reaction arm made of lightweight metal.

    •Transmission ratio of 1:5.

    •Guaranteed accuracy of better than +/- 3% tolerance.

    •Operates with a suitable torque wrench.

    •Maximum load capacity of 1300 Nm.

    •Includes three different 3/4" impact sockets (27, 30, 32 mm).

    •Transport case includes foam insert.

    •Industry.

    •Construction sites.

    •Car and truck garages.

    •Agricultural technology.

    •Bridge construction.

    •Ship construction.

    •Aircraft construction.

    •Railway construction.

    •Refineries.

    •Machinery and plant engineering.

    •Maintenance.

Specifications:

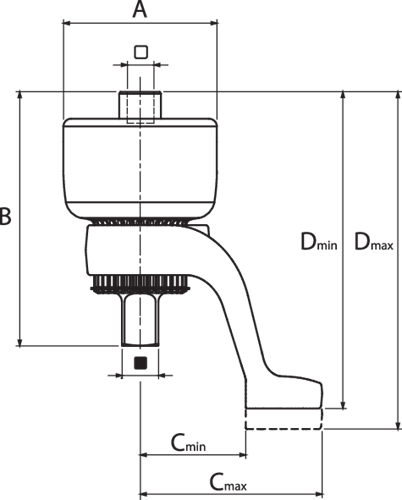

 Total length [mm] 230
 Net weight [kg] 3
 Distance output square - start reaction arm (min.) 56
 Distance output square - end of reaction arm (max) 95
 Output square 3/4"
 Output square (metric) 20 mm
 Output square (inch) 3/4"
 Drive mount, square [metric] 12,5 mm
 Drive connector square [inch] 1/2"
 Drive square inch 1/2"
 Version reaction arm Z-Form, cranked
 Output torque (max.) [lbf-ft] 950
 Output torque (max.) [Nm] 1300
 Wide torque multiplier 80
 Input torque [lbf·ft] 200
 Input torque (max.) [Nm] 270
 Total width without reaction arm 80
 Total height with reaction arm (max.) 173
 Total height with reaction arm (min.) 165
 Total height without reaction arm 133
 Compliance compliant
 Backflow protection No
 Multiplication at the ratio 1:5
