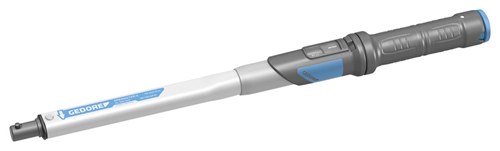

2641534 - Adjustable Torque Wrench 60-300 Nm with Calibration Certificate

Description:

Experience precision with this robust tubular torque wrench, suitable for a range of 60 to 300 Nm (45 to 220 lbf·ft) This adjustable tool, designed for industrial settings and trades, adheres to DIN EN ISO 6789-2:2017 Type II Class A standards and comes with a traceable test certificate It boasts an impressive accuracy with a maximum permissible deviation of only +/- 3%, surpassing the standard requirement of +/- 4%.

Crafted from sturdy varnished tubular steel, this wrench features a durable phosphated spigot end available in two sizes (Ø 16 mm or Ø 22 mm), complemented by high-quality plastic components It is designed for both right-hand and left-hand threading, ensuring versatility in its usage The ergonomically shaped handgrip includes a calibration aid, while the intuitive design allows for seamless switching between the Nm main scale and the lbf·ft ancillary scale, helping to prevent reading errors.

For added convenience, a micrometer scale on the main Nm scale facilitates precise interim value settings The tool also incorporates a tactile and audible release system, enhancing user feedback during operation Adjustments are made easy with an ergonomic control system and reference symbols Although the hexagon allen key needed for rapid setting is not included, the wrench's secured adjusting system guarantees reliable performance.

Note that accurate operation requires the use of end fittings with standardized depth gauges, and users can access from either the front (such as with open-end fittings) or the side (with reversible ratchets and sockets), catering to various applications.

Features and Benefits:

•Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate.

•Calibrated to a maximum permissible deviation of +/- 3 %.

•Sturdy, varnished tubular steel construction with phosphated spigot end.

•Ergonomically shaped plastic handgrip with calibration aid.

•Change-over between Nm main scale and lbf·ft ancillary scale.

•Micrometre scale for main Nm scale.

•Release system triggers tactile and audible signal.

•Ergonomic system for torque adjustment.

•Secured adjusting/setting system.

•Operation only with standardised depth gauges.

•Assembly.

•Series assembly.

•Production.

•Maintenance.

•Repair.

Specifications:
