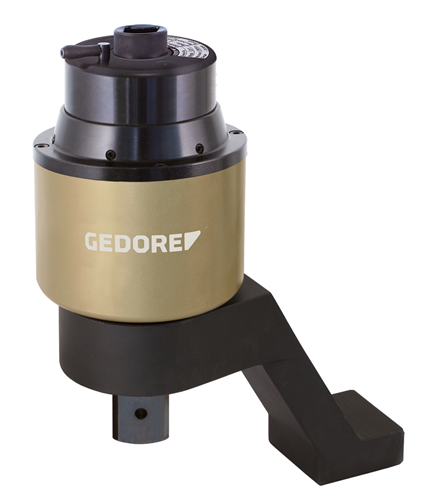

2653133 - DREMOPLUS ALU Torque Multiplier 10000 Nm with Gear Ratios

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the DREMOPLUS ALU torque multiplier, an exceptional tool tailored for heavy-duty applications in machinery and plant engineering This versatile device excels in environments such as cable car installations, lifts, masts, heavy industry, construction sites, bridge projects, shipbuilding, aerospace, rail construction, refineries, the plastics sector, and various power plants Engineered for precision, this mechanical hand torque multiplier facilitates the controlled tightening and loosening of screw connections.

It boasts a robust aluminum housing and a sophisticated two-stage planetary gear system Available in multiple gear ratios—1:18, 1:22, 1:285, and 1:39—each model also features essential safety measures, including return flow protection and the innovative 'Slipper' overload protection to safeguard the gearbox The included Z-form, offset reaction arm is crafted from durable chrome-vanadium steel, with an option to upgrade to a straight L-form reaction arm if desired.

Accuracy is guaranteed within a tolerance of better than +/- 3%, and the multiplier is designed for use alongside a compatible torque wrench Choose from four models that support maximum loads ranging from 6000 Nm to 13000 Nm, making it an invaluable addition to your toolkit.

Features and Benefits:

•Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections.

•Two-stage planet gear for enhanced performance.

•High-performance aluminum housing for durability.

•Options with various gear ratios (1:18, 1:22, 1:28.5, 1:39).

•Return flow protection (RS) included.

•Non-destructive overload protection 'Slipper' to safeguard gearbox.

•Z-form reaction arm made of chrome-vanadium steel.

•Can be retrofitted with adjustable L-form straight reaction arm.

•Guaranteed accuracy of better than +/- 3% tolerance.

•Machinery and plant engineering.

•Cable cars, lifts and masts.

•Heavy industry and construction sites.

•Bridge construction.

•Shipbuilding, aircraft and railway construction.

•Refineries and plastics industry.

•Power plants of all kinds.

Specifications:
