2795612 - Precision Electronic Torque Wrench, 10-150 N·m, Backlit Display

Description:

Introducing the Electronic Torque & Angle Wrench, an essential tool for production and assembly processes that ensures safe and controlled screwing operations while providing traceability for bolt connections that require documentation This advanced wrench excels in delivering precise torque adjustments within a range of 10-150 N·m, with a measurement accuracy of +/- 1%, meeting the rigorous demands of industrial applications.

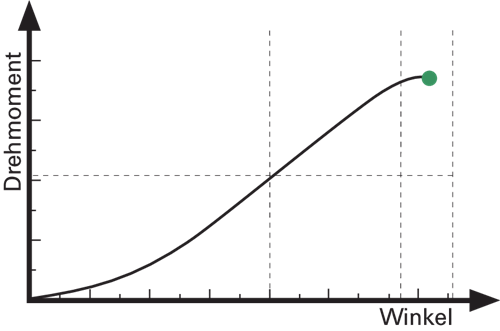

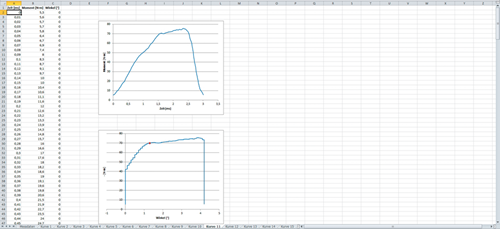

Equipped with features such as torque and angle measurements, sliding value display, peak value tracking, and up to 100 customizable presets, it empowers users to manage their work plans efficiently The internal memory can store up to 2,000 measurement records and data curves for easy reference Users can easily transfer data via USB or wirelessly through an optional WLAN connection The innovative design includes an intuitive menu or an integrated 1-D scanner to initiate work plans and screw parameters.

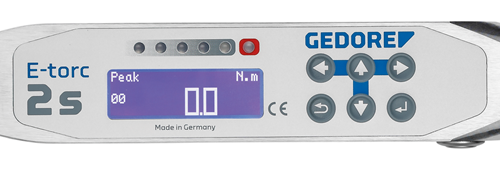

You'll always have a clear view of the display in any lighting condition, thanks to the backlit screen When the set target torque is reached or exceeded, you'll receive a visual cue on the display, along with haptic feedback from vibrations in the handle and acoustic alerts via beeping sounds The wrench's housing rotates 60° for optimal readability, particularly in tight spaces It operates on two standard AA batteries or rechargeable batteries, with an optional charging and communication station available for convenience.

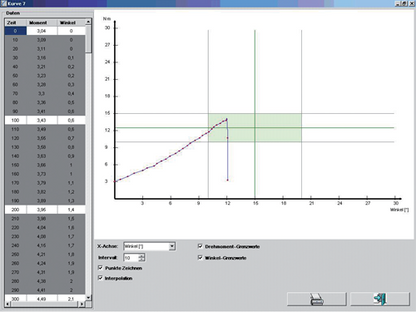

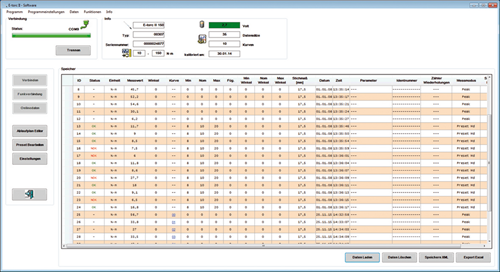

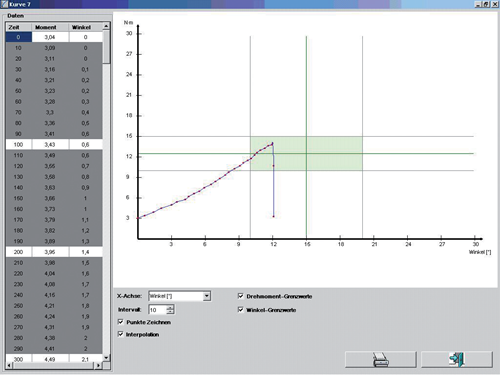

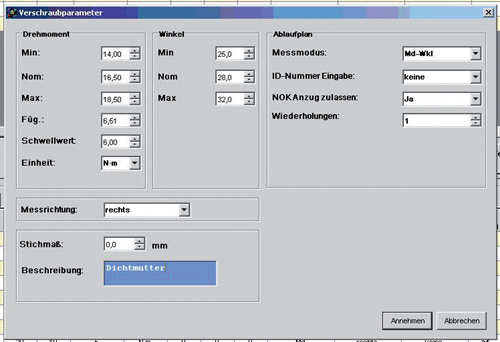

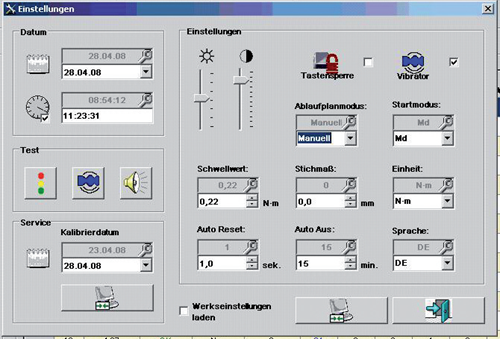

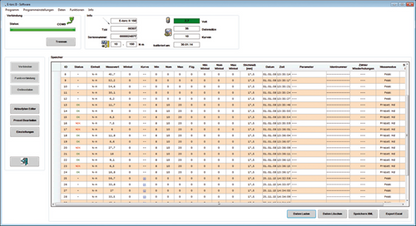

Each unit comes with a factory calibration certificate, aligning with GEDORE's in-house standard GTTWN001 and traceable to national standards For added precision, the tool can be calibrated to DKD-R 3-7 Class 1, also with an accreditation certificate if required Furthermore, it supports programming for various gauges suited for insertion tools, and complimentary evaluation PC software is included with your purchase, making it a versatile addition to your toolkit.

Features and Benefits:

•Controlled screw tightening from 10 to 150 N·m.

•Measurement accuracy of +/- 1%.

•Internal memory for up to 2,000 measurement data.

•USB and optional WLAN data transfer.

•Display backlight for low light conditions.

•Visual, haptic, and acoustic signals for target values.

•Rotatable housing for hard-to-reach locations.

•Includes free evaluation PC software.

•Assembly.

•Series assembly.

•Production.

•Quality control.

•Maintenance and repair.

•Bolting case analysis.
