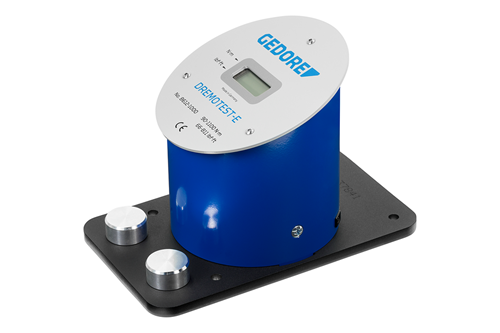

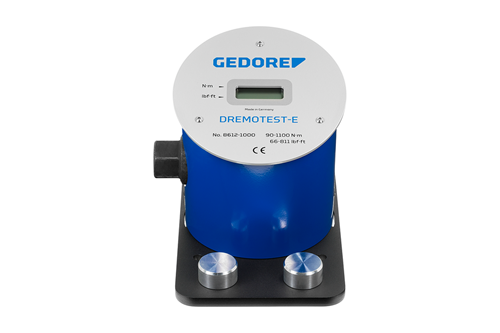

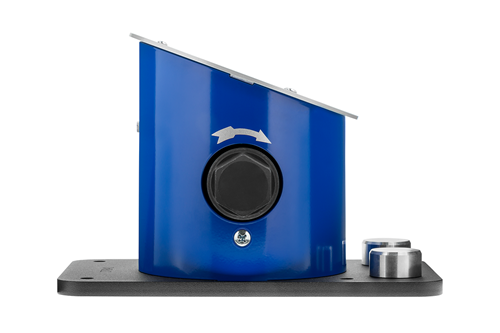

1947702 - Electronic Torque Tester (90-1100 Nm) with RS232 Interface

Description:

Ensure accurate torque adjustments with this electronic torque tester, specifically crafted for right-hand torque wrenches and screwdrivers It’s an essential tool for verifying fixed torque wrenches on the assembly line This user-friendly device comes with an integrated torsion transducer (DMS) and offers five models spanning a torque range of 02 to 3150 Nm, allowing validation of right-handed torque wrenches from 90 to 1,100 N·m.

Equipped with various square adaptors (1/4", 3/8", 1/2", 3/4", and 1") or bit adaptors (1/4" or 3/8", depending on the selected model), it guarantees high accuracy with a tolerance of +/- 1% of the reading, along with +/- 1 digit The device features peak value detection for first peak or breakpoint identification and an auto-reset function Conveniently switch between measurement units: Nm, lbf·ft, and lbf·in.

The torque tester includes an RS232 serial interface for easy connection to a PC, along with optional software for plausibility checks (Software suite: Code 3454630) The package includes the electronic torque tester, RS232 cable, power supply unit (EURO plug with UK, US, AUS adaptors available upon request), compatible with input voltages from 100 to 240 V, at 50 to 60 Hz, up to 500 mA Also included are 2 socket wrench inserts tailored to the model, an adaptor for No.

8612-3150, operating instructions, and a test certificate, making it a complete solution for your torque measurement needs.

Features and Benefits:

•Electronic test instrument with integrated torsion transducer (DMS).

•5 models in the range 0,2 - 3150 Nm.

•Verification of right-handed torque wrenches in the range of 90 - 1,100 N·m.

•High measurement accuracy: +/- 1% tolerance of reading, +/- 1 digit.

•Peak value detection (first peak / breakpoint detection).

•Switchable between Nm, lbf·ft and lbf·in.

•Serial interface RS232 for PC.

•Includes RS232 Cable and power supply unit.

•Checking or adjusting right-hand torque wrenches and torque screwdrivers.

•Ideal for checking fixed torque wrenches on the line.
