6123830 - 32mm VDE Insulated Socket Wrench Insert, Hexagonal Design

6123830 - 32mm VDE Insulated Socket Wrench Insert, Hexagonal Design

SKU: SKU: 6123830

Variant:
  • 6123830 - 32mm VDE Insulated Socket Wrench Insert, Hexagonal Design
Regular price Now $28.28
Regular price BEFORE   $0.00 Sale price Now $28.28
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting a manually operated hexagonal tool equipped with a square drive that adheres to DIN 3120 - C 125 and ISO 1174 standards Crafted from durable GEDORE vanadium steel (31CrV3), this tool boasts protective insulation up to 1000 V, meeting the safety requirements of EN 60900 and IEC 60900 with its two-fold Check-Tool insulation The insulation overhang ranges from 16 to 18 mm, while specific dimensions for diameters 27, 30, and 32 are not subject to standardization.

This essential tool combines safety with high-quality materials for reliable performance.

Features and Benefits:

    •Hexagonal shape for manual operation.

    •Square drive as per DIN 3120 - C 12.5 and ISO 1174.

    •Constructed from GEDORE vanadium steel 31CrV3.

    •Protective insulation up to 1000 V according to EN 60900/IEC 60900.

    •2-fold Check-Tool insulation for added safety.

    •Lightweight at 0.25 kg.

Specifications:

 Total width [mm] 47 mm
 Total length [mm] 60.5 mm
 Net weight [kg] 0.25 kg
 Drive mount, square [metric] 12.5 mm
 Drive connector square [inch] 1/2"
 Standard DIN 3120 – C 12.5 ISO 1174 EN 60900/IEC60900

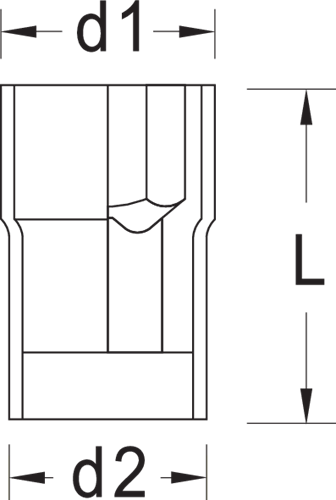

 Insert-Ø 1 47.0 mm
 Insert-Ø 2 27.0 mm
 Working length 60.5 mm
 Material Chrome-vanadium steel 31CrV3
 Surface 2-fold Check-Tool insulation, VDE insulated up to 1000 V
 Compliance compliant
 Width across flats 1 [mm] 32
