4058610000 - 115V AC RCL Relay, Compact 15.7mm Depth, Plug-in Design (Pack of 20)

4058610000 - 115V AC RCL Relay, Compact 15.7mm Depth, Plug-in Design (Pack of 20)

SKU: SKU: 4058610000   Download PDF

Select a Variant:
  • 4058610000 - 115V AC RCL Relay, Compact 15.7mm Depth, Plug-in Design (Pack of 20)
Qty:
Regular price Now $120.10   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $120.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

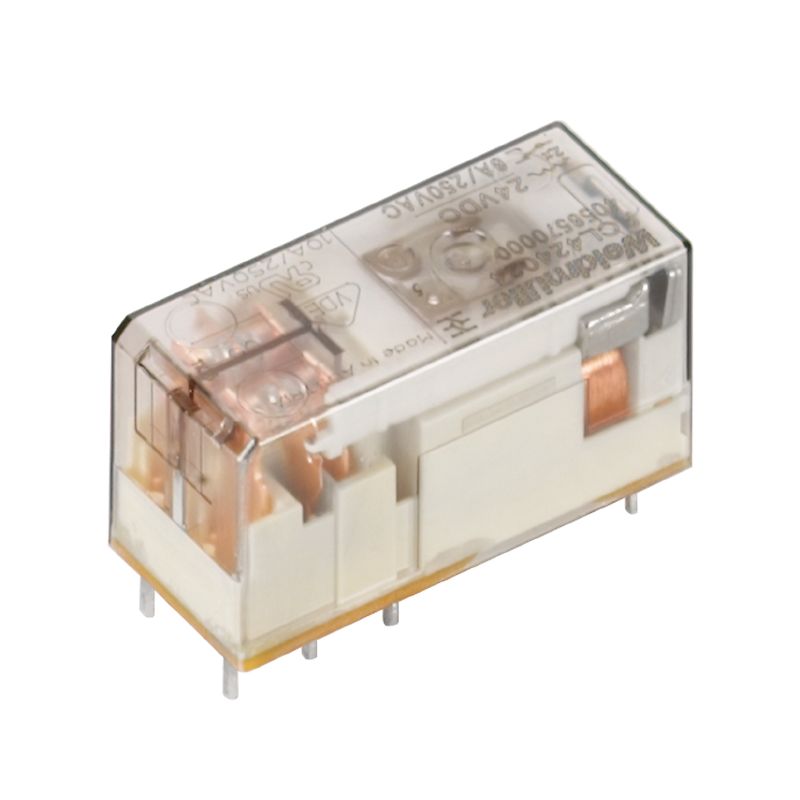

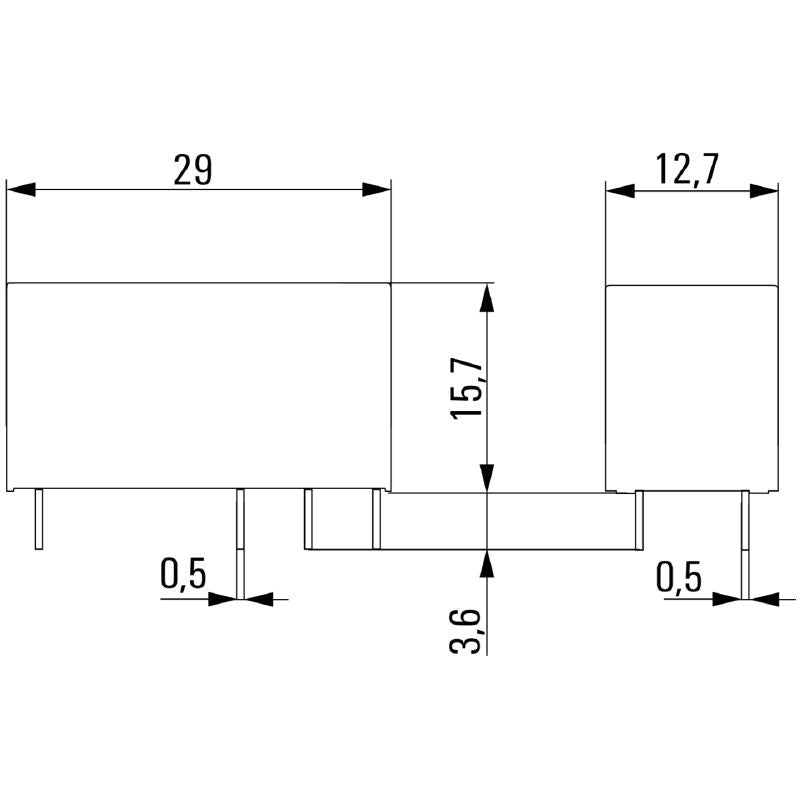

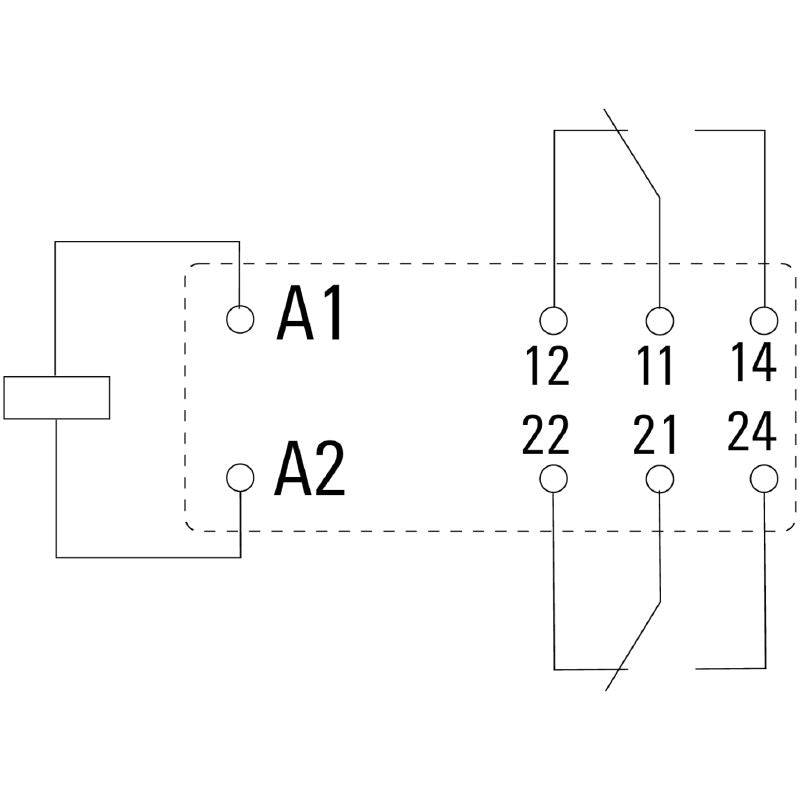

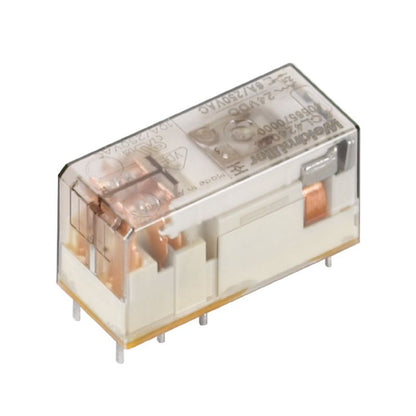

Discover the RIDERSERIES RCL relay, cataloged under order number 4058610000 This reliable component features two CO contacts crafted from AgNi and operates at a rated control voltage of 115 V AC, delivering a continuous current capacity of 8 A Ideal for seamless integration, it boasts a plug-in connection but lacks a test button With compact dimensions of 157 mm in depth, 29 mm in height, and 127 mm in width, this lightweight relay weighs just 12 g.

It adheres to RoHS standards, ensuring it is free from any substances of very high concern (SVHC) above 01 wt% Please note, this product will be available until March 31, 2026, after which it will no longer be offered.

Features and Benefits:

    •Compliant with RoHS regulations.

    •No SVHC above 0.1 wt%.

    •Plug-in connection.

    •Continuous current of 8 A.

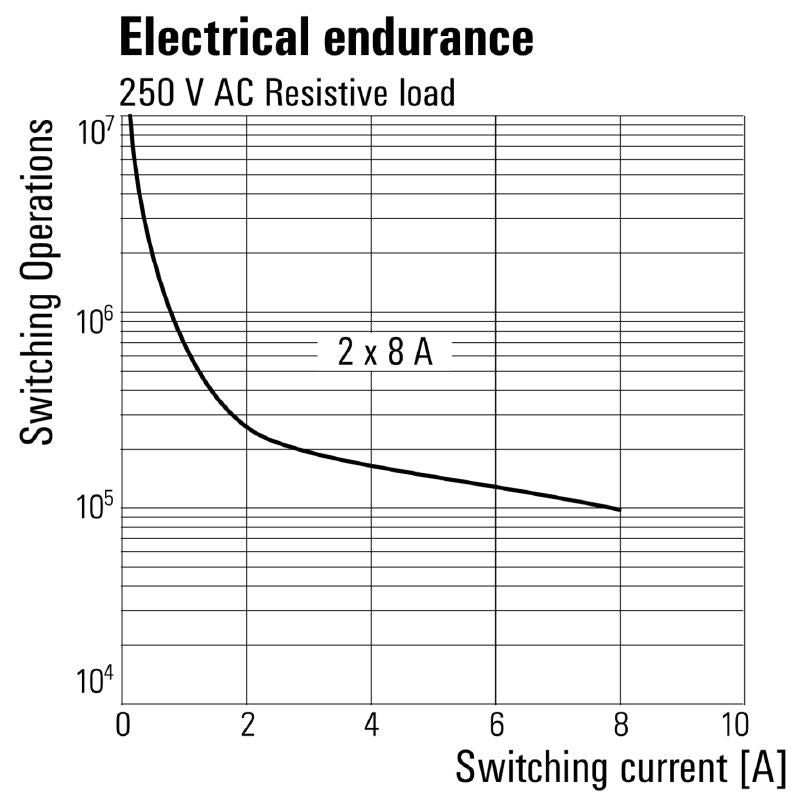

    •Sturdy mechanical service life of 5 million switching cycles.

    •IP20 protection degree.

Specifications:

 Rated control voltage 115 V AC
 Rated current AC 6.6 mA
 Power rating 0.75 VA
 Coil resistance 8100 Ω ± 15 %
 Rated switching voltage 250 V AC
 Max. switching frequency at rated load 0.1 Hz
 Min. switching power 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
 Inrush current 15 A / 4 s
 AC switching capacity (resistive), max. 2000 VA

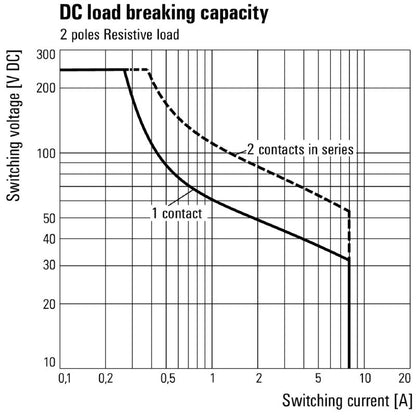

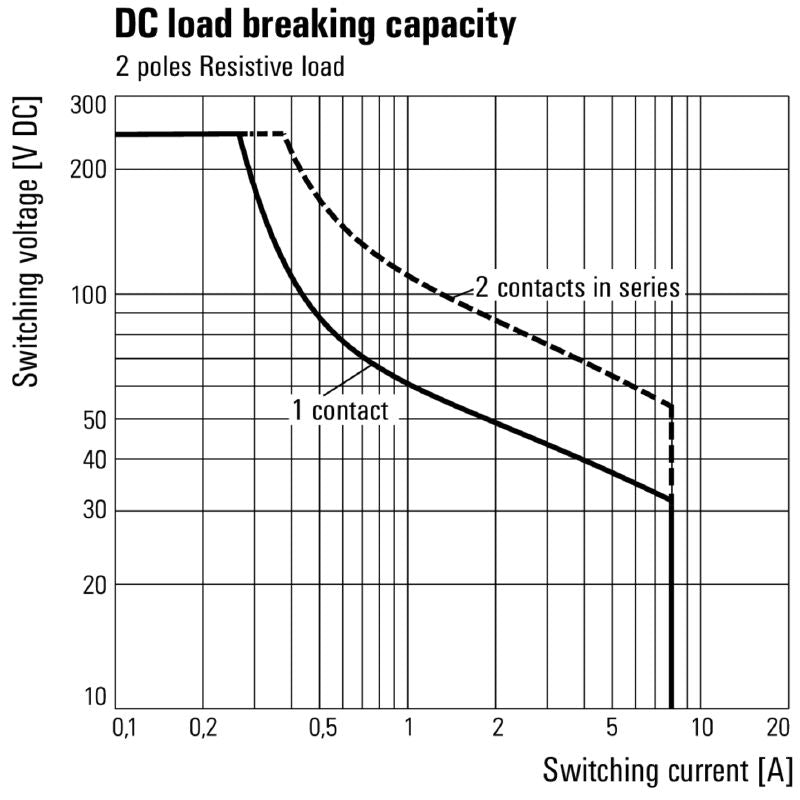

 DC switching capacity (resistive), max. 192 W @ 24 V
 Switch-on delay ≤ 8 ms
 Switch-off delay ≤ 6 ms
 Mechanical switch position indicator No
 UL 94 flammability rating V-2
 Insulation coordination {'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Creepage and clearance distance input – output': '≥ 10 mm', 'Dielectric strength, Input/Output': '5 kV eff / 1min', 'Dielectric strength of neighbouring contacts': '2.5 kV eff / 1 Min.', 'Dielectric strength of open contact': '1 kV eff / 1 min'}
 Wire connection method Plug-in connection
 Pitch in mm (P) 5 mm
