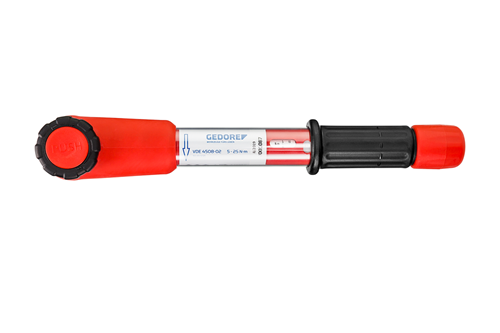

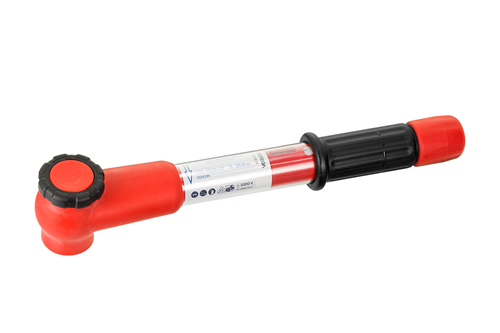

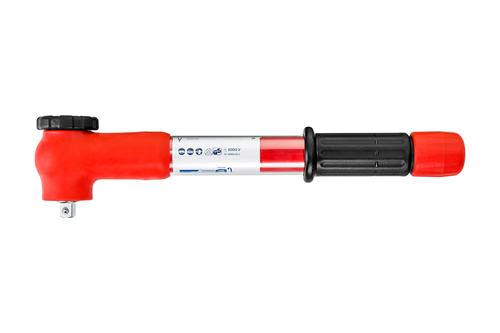

3125335 - VDE Insulated Torque Wrench 3/8" | 5-25 Nm Precision

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a precision tool for controlled screw tightening, this torque wrench covers the most commonly utilized range It features a reliable release system that provides both tactile and audible feedback With a scale graduated in Nm, this tool meets the standards set by DIN EN ISO 6789-2:2017 Type II Class A, and comes with a traceable test certificate It is calibrated to ensure a maximum allowable deviation of +/- 3%, exceeding the +/- 4% accuracy demanded by the standard.

Recalibration can be performed without compromising insulation integrity The fine-toothed ratchet offers a square drive that complies with DIN 3120 and ISO 1174 standards, while a safety button protects against unintended release of the insert Additionally, the tool boasts VDE insulation rated for up to 1000 V, in accordance with EN 60900/IEC 60900, making it a reliable choice for safe and precise work.

Features and Benefits:

•Controlled screw tightening in the most widely used range.

•Release system triggers a tactile and audible signal.

•Scale with Nm division.

•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.

•Traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 %.

•Recalibration without destroying the insulation.

•Fine toothed ratchet with square drive as per DIN 3120.

•Safety button to protect against accidental release of the insert.

•VDE insulation up to 1000 V.

•Assembly.

•Production.

•Maintenance and repair.

Specifications:
