Product Information

Description:

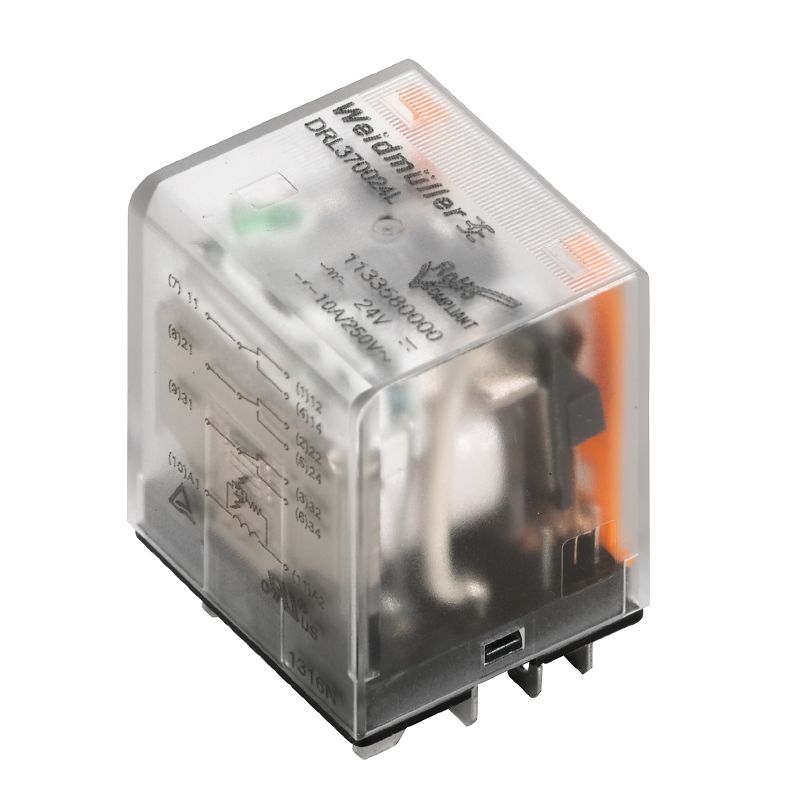

Introducing the D-SERIES DRL relay, featuring a robust construction with three contacts optimized for Co contact use This relay is designed to operate at a rated control voltage of 230 V AC and accommodates continuous currents up to 10 A Its connections utilize flat blades measuring 48 mm x 05 mm for secure compatibility Please note that a test button is not included This relay combines efficiency and reliability for your electrical needs.

Features and Benefits:

•No test button.

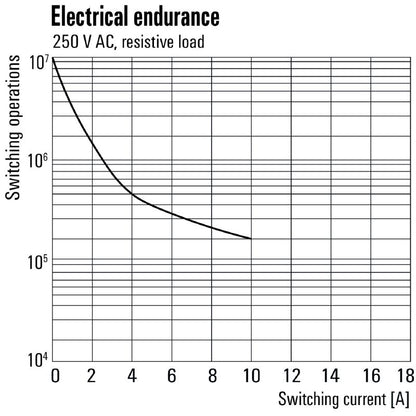

•Maintains a mechanical service life of 10 million switching cycles.

•Contains a mechanical switch position indicator.

•Transparent color.

Specifications:

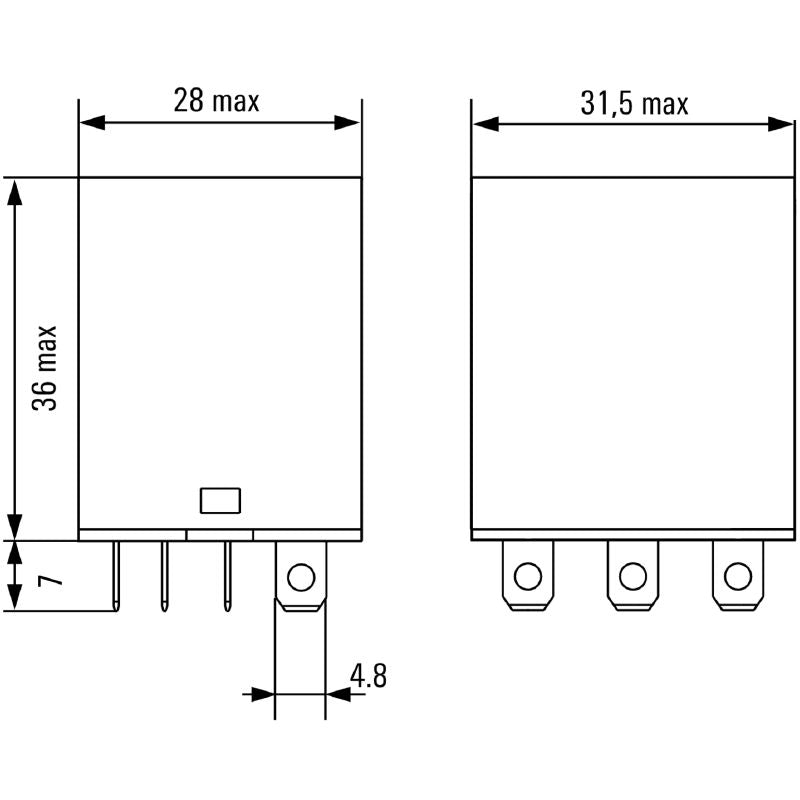

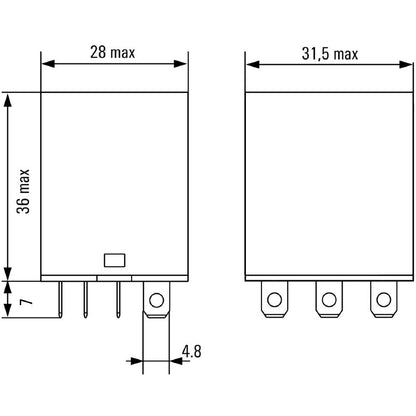

Depth	36 mm
Height	28 mm
Width	31.5 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-25 °C…55 °C
Humidity	35% to 85% relative humidity level
Rated control voltage	230 V AC
Rated current AC	10 mA
Power rating	2 VA
Coil resistance	10000 Ω ± 10%
Status indicator	red LED
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	10 mA @ 12 V
Inrush current	50 A / 50 ms
AC switching capacity (resistive), max.	2500 VA
DC switching capacity (resistive), max.	300 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

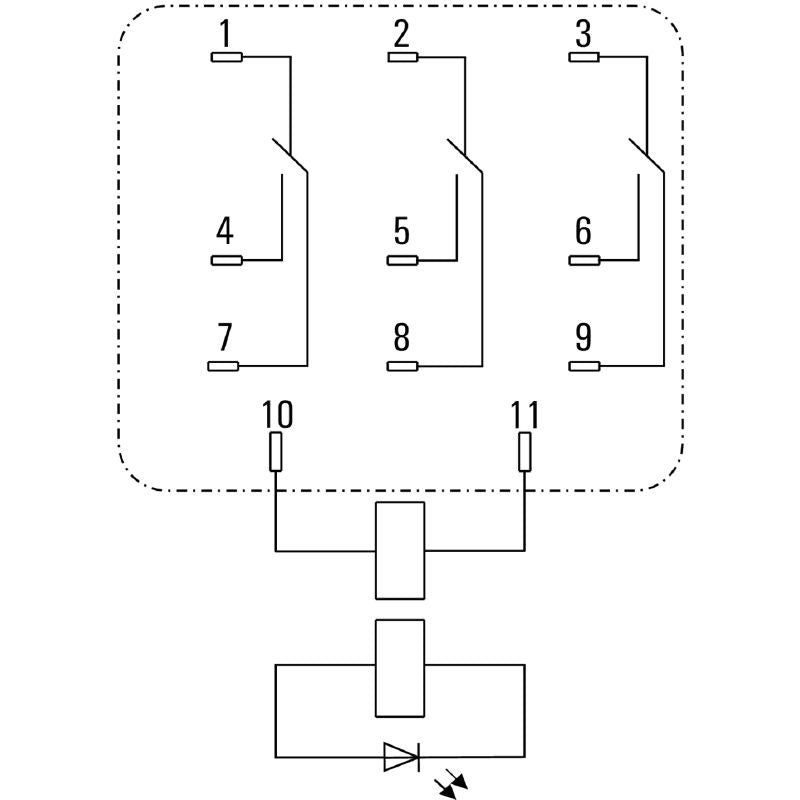

Contact type	3 CO contact (AgSnO)
UL94 flammability rating (Relay cover)	V-2
UL94 flammability rating (Relay baseplate)	V-0
UL94 flammability rating (Relay status indicator)	HB
Rated voltage	250 V
Pollution severity	3
Surge voltage category	III
Insulating material group	IIIa
Clearance and creepage distances for control side - load side	≥ 4 mm
Dielectric strength for control side - load side	2.5 kV eff / 1 min
Dielectric strength of neighbouring contacts	2 kV eff / 1 min
Dielectric strength of open contact	1.2 kV eff / 1 min.
Impulse withstand voltage	5 kV (1.2/50 µs)
Protection degree	IP20
Wire connection method	Flat blade connections (4.8 mm x 0.5 mm)
