2765180000 - 110V DC Relay with 2 CO Contacts, 10A Capacity (Pack of 20)

SKU: SKU: 2765180000

Variant:

2765180000 - 110V DC Relay with 2 CO Contacts, 10A Capacity (Pack of 20)

Now $294.89

~~BEFORE $0.00~~ Now $294.89

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this reliable relay featuring dual contacts designed with a CO contact type crafted from AgSnO It operates efficiently at a control voltage of 110 V DC and can handle a continuous current of up to 10 A Connectivity is made easy with flat blade connectors that measure 48 mm x 05 mm Please note, this model does not come equipped with a test button Perfect for various electrical applications where reliability is key.

Features and Benefits:

•Environmental compliance with RoHS.

•No SVHC above 0.1 wt%.

•Green LED status indicator.

•Mechanical switch position indicator.

Specifications:

Depth	36 mm
Height	28 mm
Width	21.5 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-25 °C…55 °C
Humidity	35 % to 85 % relative humidity level
Rated current DC	10 mA
Power rating	0.9 W
Coil resistance	11000 Ω ± 10 %
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Min. switching power	10 mA @ 12 V
Inrush current	50 A / 50 ms
AC switching capacity (resistive), max.	2500 VA

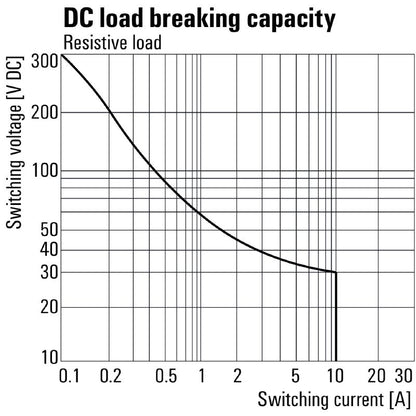

DC switching capacity (resistive), max.	300 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

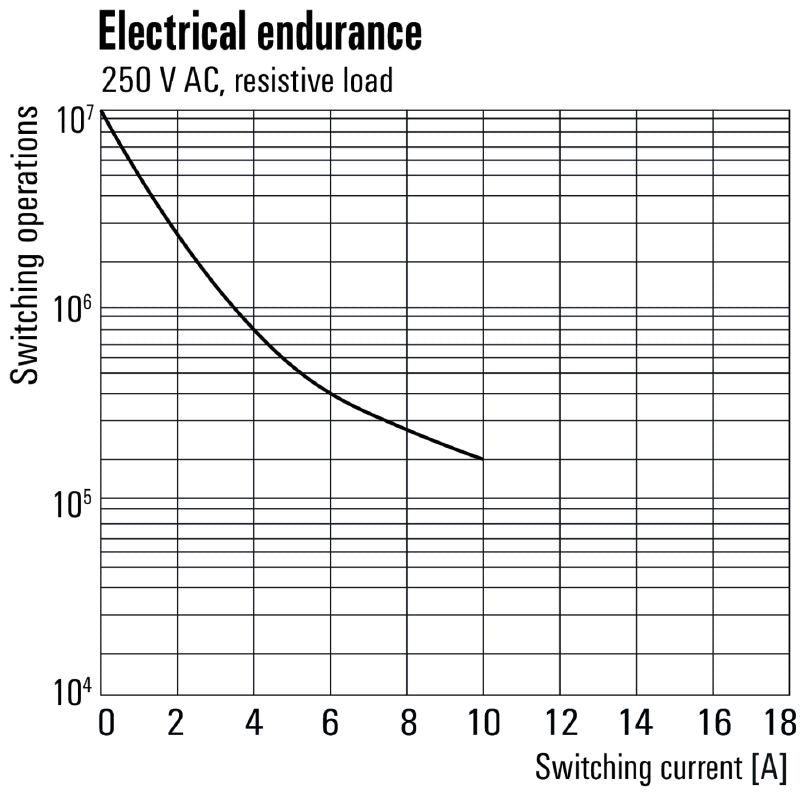

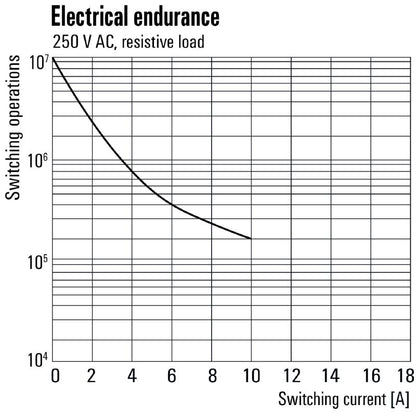

Mechanical service life	10 x 10^6 switching cycles
Rated voltage	250 V
Pollution severity	3
Surge voltage category	III
Insulating material group	IIIa
Clearance and creepage distances for control side - load side	≥ 4 mm
Dielectric strength for control side - load side	2.5 kV eff / 1 min
Dielectric strength of neighbouring contacts	1.2 kV eff /1 min.
Dielectric strength of open contact	2 kV eff / 1 min
Impulse withstand voltage	5 kV (1.2/50 µs)
Protection degree	IP20
UL94 flammability rating	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay status indicator': 'HB'}
