2759030000 - 24V DC Relay with 1 NC & 3 NO Contacts (Pack of 5)

SKU: SKU: 2759030000 Download PDF

Variant:

2759030000 - 24V DC Relay with 1 NC & 3 NO Contacts (Pack of 5)

Now $105.03

~~BEFORE $0.00~~ Now $105.03

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

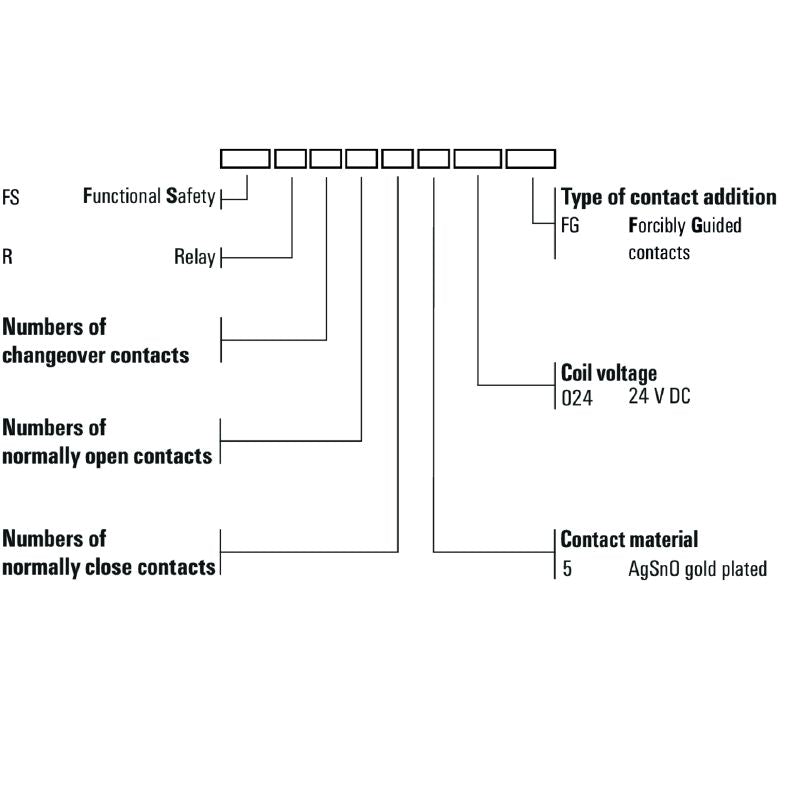

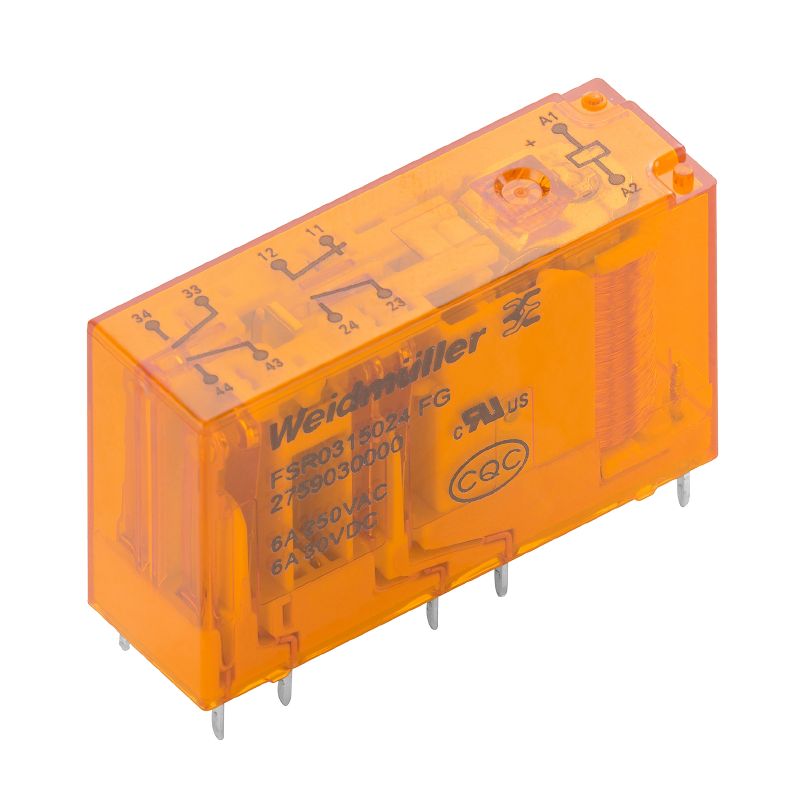

Introducing the FSR0315024 FG relay, an efficient device characterized by its forced guided contacts This model features one normally closed (NC) contact alongside three normally open (NO) contacts, adhering to the EN 61810-3 type A standards It operates with a control voltage of 24 V DC ±10% and is capable of managing a continuous current of 6 A With its plug-in connection design, this relay is practical for various applications, although it does not include a test button.

Features and Benefits:

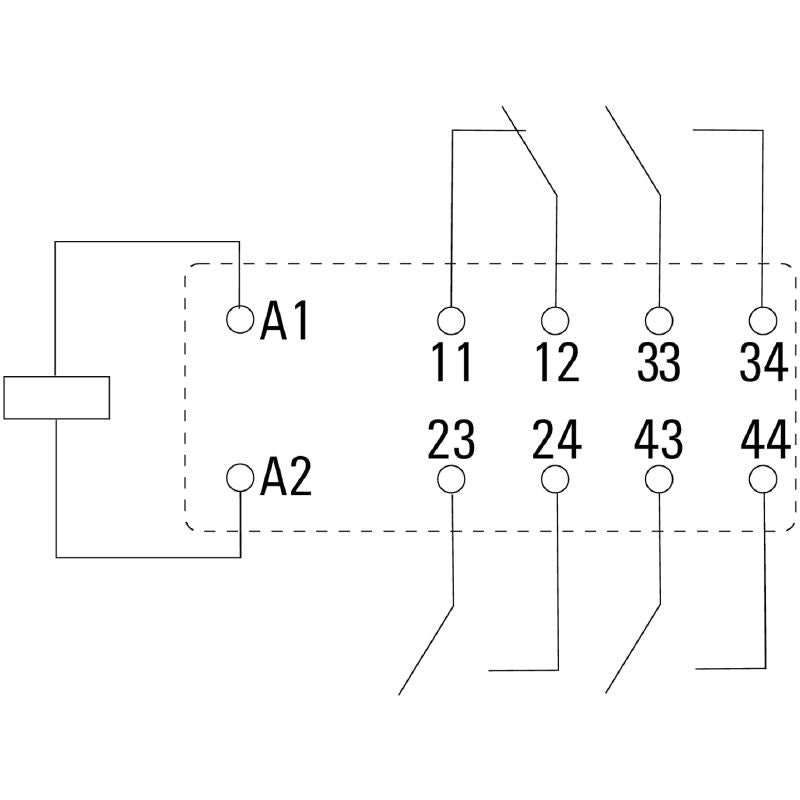

•Forced guided contacts with 1 NC and 3 NO.

•Plug-in connection for easy setup.

•RoHS compliant.

•No test button available.

Specifications:

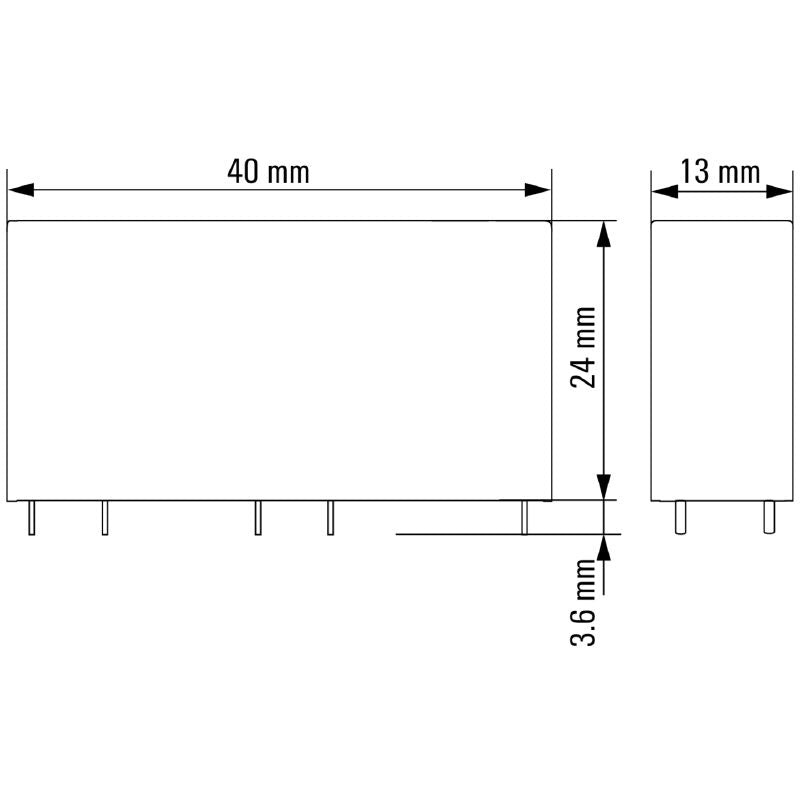

Depth	24 mm
Height	40 mm
Width	13 mm
Storage temperature	-40 °C…85 °C
Ambient temperature	-40 °C…85 °C
Rated control voltage	24 V DC ±10 %
Rated current DC	15 mA
Power rating	360 mW
Coil resistance	1600 Ω ± 10 %
Rated switching voltage	250 V AC
Continuous current	6 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	400 V
Max. switching voltage, DC	250 V
Min. switching power	2 mA @ 24 V, 4 mA @ 12 V, 10 mA @ 5 V
Inrush current	30 A / 20 ms
AC switching capacity (resistive), max.	1500 VA

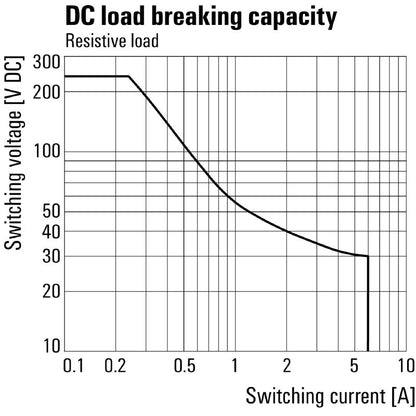

DC switching capacity (resistive), max.	144 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

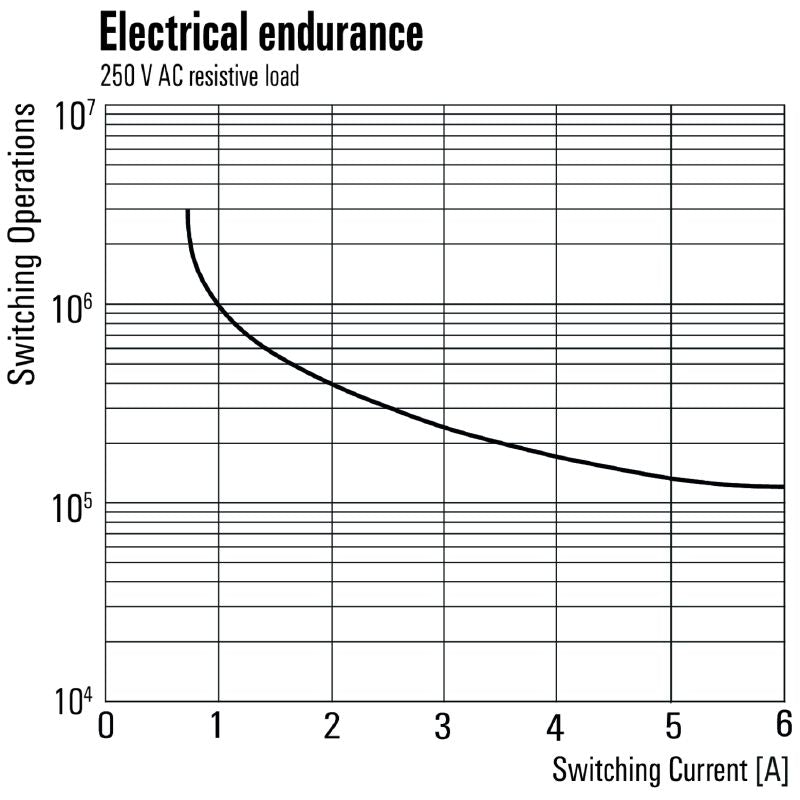

Mechanical service life	10 x 10^6 switching cycles
Operating altitude	≤ 2000 m
Insulation coordination	IEC 61810-1
Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Clearance and creepage distances	≥ 8 mm
Dielectric strength for control side - load side	4 kV eff / 1 min
Type of isolation at input and output	reinforced insulation
Dielectric strength of neighbouring contacts	2.5 kV eff / 1 min
Type of isolation at neighbouring contacts	Basic insulation
Dielectric strength of open contact	1.5 kV eff /1 min.
Impulse withstand voltage at input and output	10 kV (1.2/50 µs)
Impulse withstand voltage at neighbouring contacts	5 kV (1.2/50 µs)
Protection degree	IP50
