2697280000 - TFI-Series 24-240V On-Delay Relay with 1 CO Contact

SKU: SKU: 2697280000 Download PDF

Select a Variant:

2697280000 - TFI-Series 24-240V On-Delay Relay with 1 CO Contact

SET THE QTY:

Now $39.20 Web pricing policy

~~BEFORE $0.00~~ Now $39.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

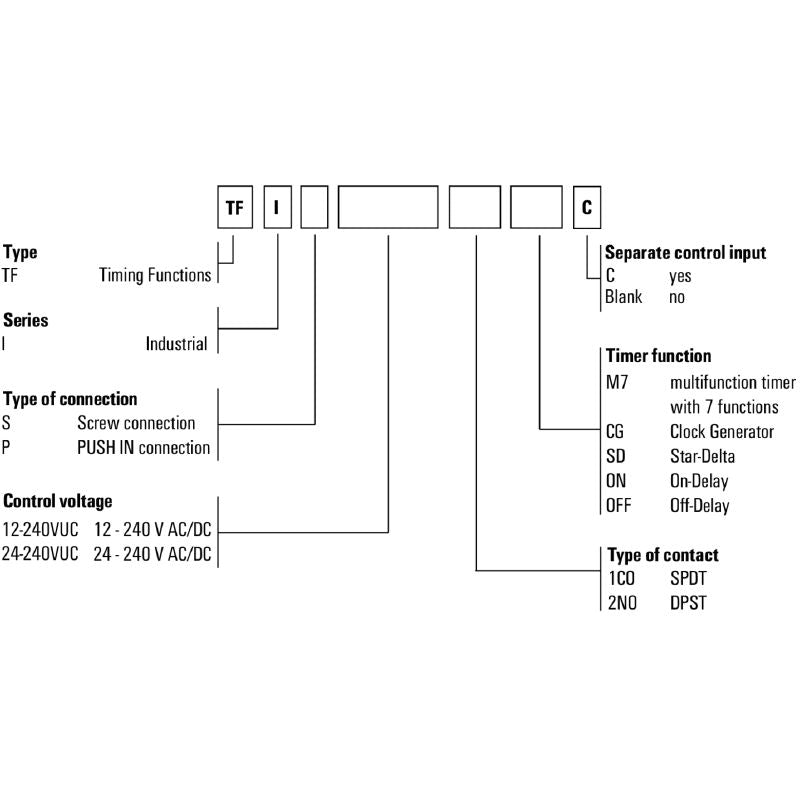

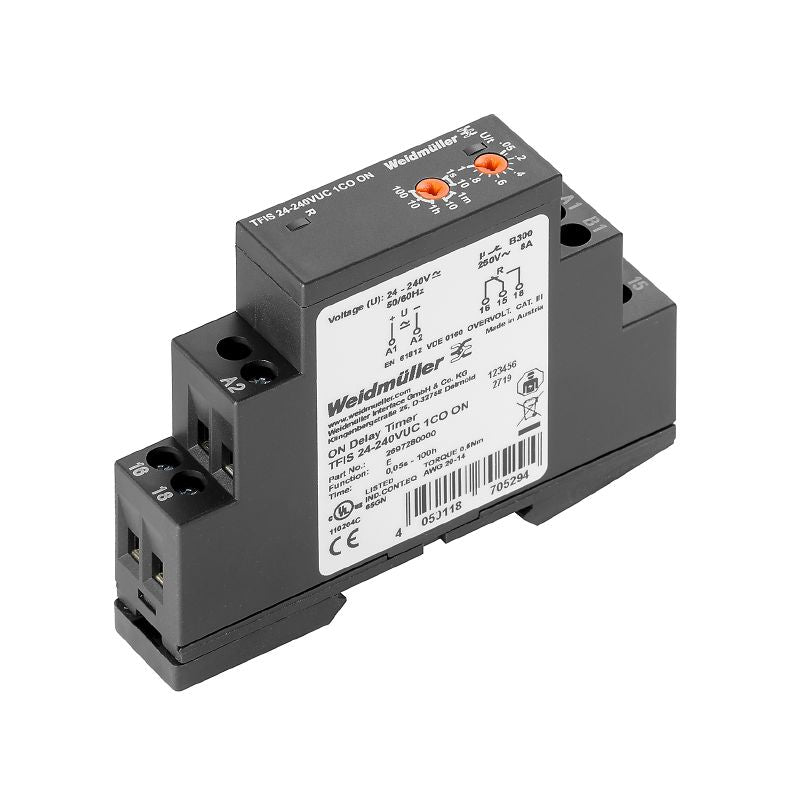

Introducing the TFI-SERIES on-delay timing relay, designed for optimal performance with 1 CO contact made from durable AgNi It operates within a control voltage range of 24 to 240 V UC, accommodating variations of -15% to +10% This relay boasts a continuous current rating of 8 A and features reliable screw connections for easy installation Certified compliant with RoHS and holding a cULus certification (number E360862), it’s built for safety and efficiency.

Specifically engineered for TS 35 mounting rail compatibility, this device delivers exceptional switching capabilities of up to 250 V for AC and 30 V for DC, making it ideal for a wide range of applications.

Features and Benefits:

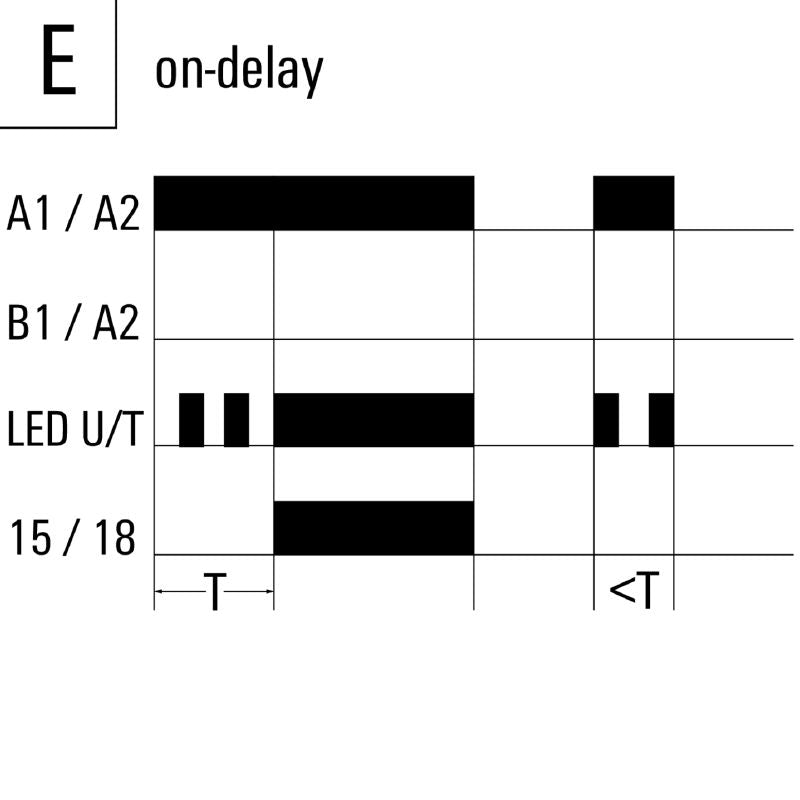

•Designed for on-delay timing functionality.

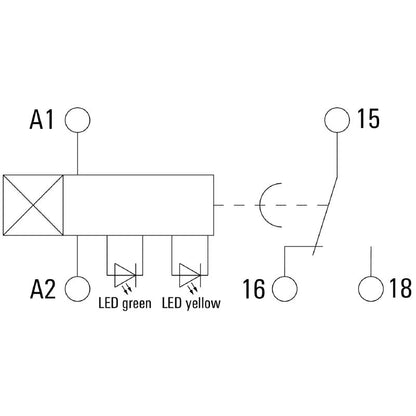

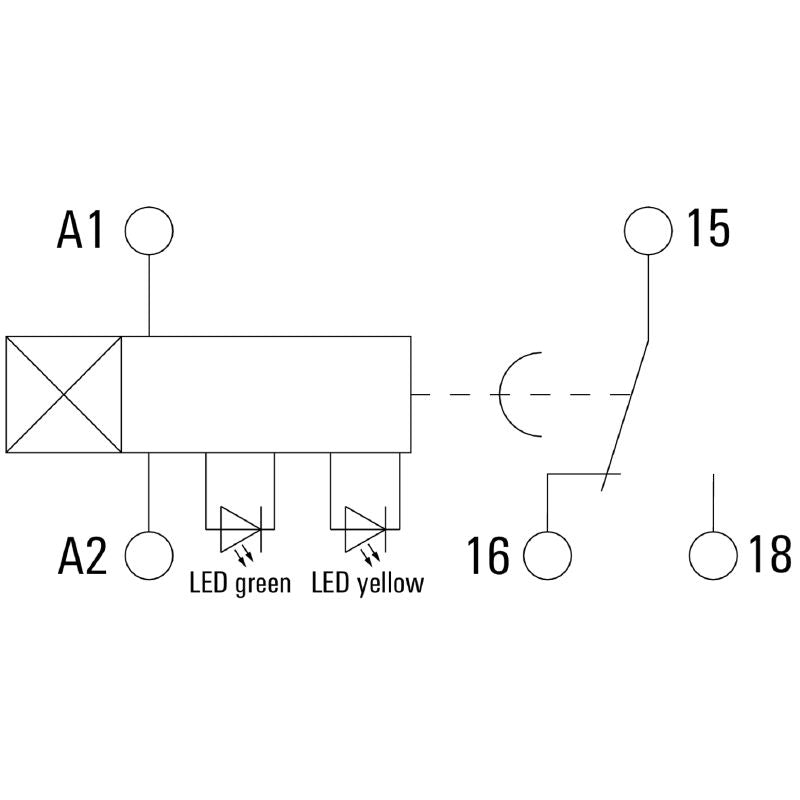

•LED indicators for operational status.

•Various timing ranges from 0.05 seconds to 100 hours.

•High electrical and mechanical service life ratings.

Specifications:

Rated control voltage	24...240 V UC -15 % / +10 %
Power rating	4 VA; 1.5 W
Time ranges	0.05 s - 1 s; 0.5 s - 10 s; 3 s - 60 s; 30 s - 10 min; 3 min - 1 h; 30 min - 10 h; 5 h - 100 h
Setting tolerance	5 %
Max. reset time after voltage interruption	100 ms
Basic accuracy	±6% (of scale-end value, for time range 0.05 s - 1 s); ±1% (for other time ranges)
Min. pulse duration	100 ms
Repeat accuracy	<0.5 % or ±5 ms
Rated switching voltage	250 V AC
Continuous current	8 A
Max. switching voltage, AC	250 V
Max. switching voltage, DC	30 V
Min. switching power	10 mA @ 12 V; 100 mA @ 5 V
AC switching capacity (resistive), max.	2000 VA
DC switching capacity (resistive), max.	240 W
Contact type	1 CO contact (AgNi)
Electrical service life, DC coil	2x10^5 switching cycles (1000 VA ohm load)
Mechanical service life	20 x 10^6 switching cycles
Design	Installation housing; 1TE
Mounting rail	TS 35
UL 94 flammability rating	V-0
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Dielectric strength': '1.6 kV'}
Protection degree	IP20
Wire connection method	Screw connection
Clamping range, rated connection	2.5 mm²
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section AWG, max.	AWG 12
Blade size	PZ1
