2663060000 - Relay Socket 24-230V | 10A, 2 CO Contacts, RoHS Compliant (Pack of 10)

2663060000 - Relay Socket 24-230V | 10A, 2 CO Contacts, RoHS Compliant (Pack of 10)

SKU: SKU: 2663060000   Download PDF

Select a Variant:
  • 2663060000 - Relay Socket 24-230V | 10A, 2 CO Contacts, RoHS Compliant (Pack of 10)
Qty:
Regular price Now $252.57   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $252.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

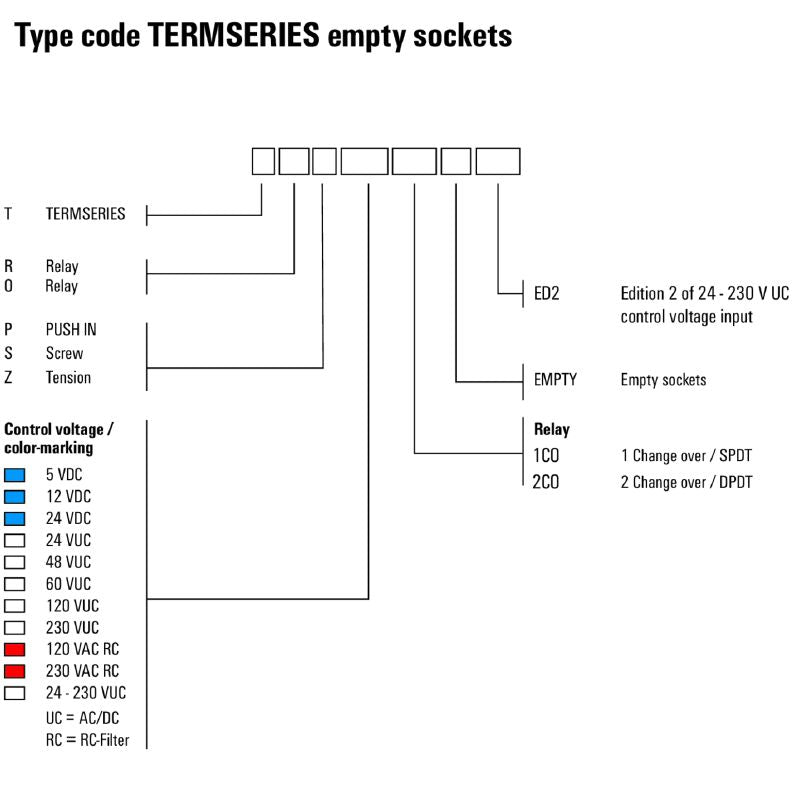

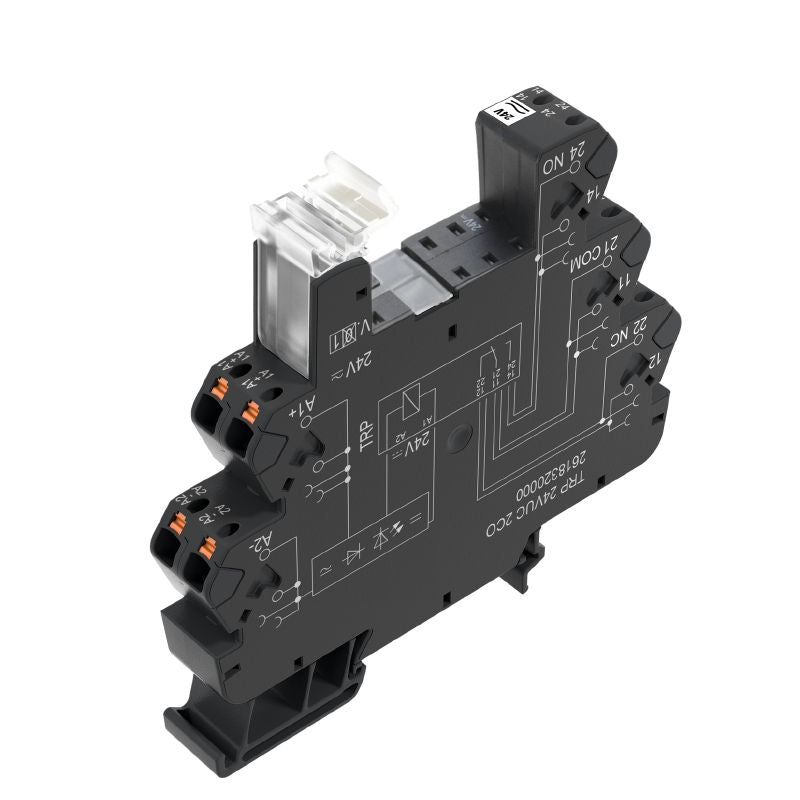

Introducing the TRP 24-230VUC 2CO EMPTY ED2 relay socket, a versatile solution perfect for a range of applications It boasts two CO contacts and operates efficiently within a control voltage range of 24 to 230 V UC, with a tolerance of ±10% Able to manage a continuous current of up to 10 A, this relay socket is built to withstand a wide range of storage temperatures, making it suitable for diverse environments.

Plus, it meets RoHS standards for safety and environmental compliance.

Features and Benefits:

    •PUSH IN wire connection method.

    •Rated control voltage of 24...230 V UC ±10%.

    •Continuous current rated at 10 A.

    •Operational ambient temperature maximum of 60 °C.

    •Green LED status indicator.

    •IP20 protection degree.

Specifications:

 Depth 87.8 mm
 Height 89.4 mm
 Width 12.8 mm
 Net weight 48 g
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C...60 °C
 Rated switching voltage 250 V AC
 Max. switching voltage, AC 250 V
 Contact type 2 CO contact
 Insulation coordination Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Dielectric strength for control side - load side 3.51 kV eff /1 min.
 Protection degree IP20
 Wire connection cross section AWG, min. AWG 26
 Wire connection cross section AWG, max. AWG 14
